Main Features:

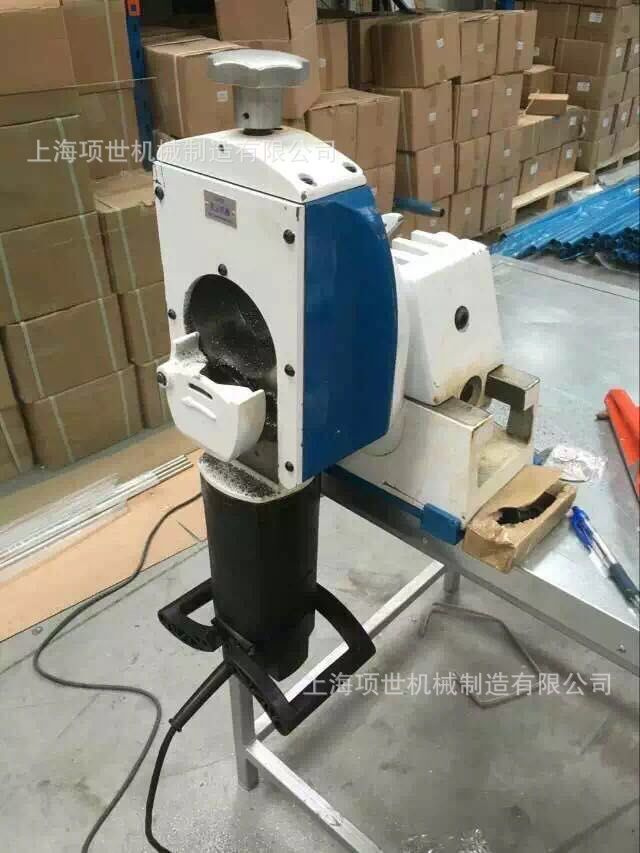

Precision pipe cutting machine adopts high power electric motor drive,with strong force,operated easily and space saving,clamped on self centering unit,no deformation caused to pipes,when cutting,with manual or auto device,the cutting head rotates one cycle around the pipe to sever,pipe end after cutting is pure without burrs and deformation.bevel can be made at the same time to meet welding requirements.
Application
Applicable to high lever pipe processing related industries,cost effective.perfect pipe cutting tool in petrochemical,beer,diary beverages,pharmaceutical,metallurgy,water treatment,shipbuilding,electric power industries related to pipe welding preparation.
Funtion
1.Rigid and durable structure,high safety of operation. 2.Adopt unique automatic planetary cutting method,the workpiece is severed after cutting head one cycle rotation.
3.Self centering of pipes ensure even beveling.
4.high speed cold matching in high efficiency,with non burrs and deformation on pipes,pipes after cutting can be welded directly.
5.cutting speed can be adjusted according to different materials of workpieces,for an example,low speed gear suitable for stainless steel pipes.
6.Manual,semi-auto or auto feeding mode can be choosed for pipe cutting processes.
7.motor handle is designed based on ergonomics with high safety of operation,available to process bends without modification.
8.optimized cutting unit can avoid personal injury of operators caused by chips,with the meter rule slot for pipe length measure.
9.The transposition jig made by cast iron supports cutting short pipes and cutting small-diameter pipes without vibration.
Standard technology specification
| Model | pipe diameter(mm) | wall thickness(mm) | weight(kg) | voltage(V) | Frequency(Hz) |
| ISJ-120 | 19-120 | 1-7 | 75 | 110/220 | 50/60 |
| ISJ-182 | 80-182 | 1.5-10 | 90 | 110/220 | 50/60 |
| ISJ-230 | 150-230 | 1.5-10 | 110 | 110/220 | 50/60 |
| ISJ-325 | 215-325 | 1.5-10 | 130 | 110/220 | 50/60 |
Obove is standard specifications,if any non-standard,please consult with our company.
Driven type:electric motor
Voltage:AC20V.
Rated frequency:50-60Hz
Rated power:1.8kw
Applying materials:alloy(especially stainless steel,tianium alloy,quality steel and carbon steel,copper,brass,aluminum and nonferrous metals,plastic tube and founding metarials.
Multifunction wrench
Helical vice crank,jig fixture,cutting blade/beveling blade fixture.
Cutting blade protect device
Avoid injury casued by iron chips.
meter rules slot used for measuring pipe length
Transposition jig
Made by cast iron,supports cutting short pipes and cutting small-diameter pipes without vibration.
