Geotechnical Equipment, Standard Penetration Test, Spt Trip Hammer

Geotechnical Equipment, Standard Penetration Test, Spt Trip Hammer
Price: US $ 280-400/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Description of Test
This method describes the standard penetration test using the split-barrel sampler to obtain the resistance of soil to penetration (N-value), using a 63.5 kg hammer falling 0.76m; and to obtain representative samples for identification and laboratory tests.

The method is applicable to all soil types. It is most often used in granular materials but also in other materials when simple in-place bearing strengths are required. It is also used when samples cannot easily be recovered by other means.

Equipment Required

Drilling equipment - any drilling equipment is acceptable that provides a reasonably clean hole, which is at least 5 mm larger than the sampler or sampling rods, and less than 170mm diameter.

Barrel sampler - consists of 3 main parts; head, split-barrel and shoe. A core catcher should be installed to prevent loss of sample. Shoes which have been damaged should be replaced or repaired.

Drive weight assembly - consisting of a 63.5 kg weight (hammer), a hammer lifter and a guide rod permitting free fall of 0.76 m and guide rod extension .

PROCEDURE (Test Procedure)
1. Test Hole

Drill the hole to the desired sampling depth and clean out all disturbed material. If a wet drill is used, flush out all cuttings.

2. Assembling Equipment

Attach the split-barrel sampler to the A-rod and lower into the hole until it is sitting on the undisturbed material.

Attach the drive weight assembly.

Lift the 63.5 kg hammer approximately 0.76 m and allow it to fall on the anvil delivering one seating blow.

Mark the drill rod in 3 successive 0.15 m increments to observe penetration.

Mark the drive weight assembly to indicate a 0.76 m hammer lift.

3. Penetration Testing

Raise and drop the hammer 0.76 m successively by means of the rope and cathead, using no more than 2 1/4 wraps around the cathead. The hammer should be operated between 40 and 60 blows per minute and should drop freely.

Continue the driving until either 0.45 m has been penetrated or 100 blows has been applied.

Record the number of blows for each .15 m of the penetration. The first 0.15 m increment is the "seating" drive. The sum of the blows for second and third increment of 0.15 m penetration is termed "penetration resistance or "N-value".

If the blow count exceeds 100 in total, terminate the test and record the number of blows for the last 0.30 m of penetration as the N-value.

If less than 0.30 m is penetrated in 100 blows, record the depth penetrated and the blow count.

If the sampler advances below the bottom of the hole under its own weight, note this condition on the log.

4. Handling Sample

Bring the sampler to the surface and open it. Remove any obvious contamination from the ends or sides and drain excess water. Carefully scrape or slice along one side to expose fresh material and any stratification.

Record the length, composition, colour, stratification

Split Tube Sampler Split TubeO.D. 51mm
I. D. 35mm
O.D. +/- 1mm
I. D.  +/- 1mm
Roughness 3.2
Ellipticity 0.08mm
Concentricity 0.05mm
Length >500mm
Open ShoeLength 50-76mm
Blade Edge Thickness: 2.5mm
Blade taper: 18°-20°
        Donut HammerWeight 63.5kg+/-0.5kg
        Guiding TubeFalling Distance 76cm+/-2cm
        Drill RodsDiameter 42mmBending allowance,<=1/1000

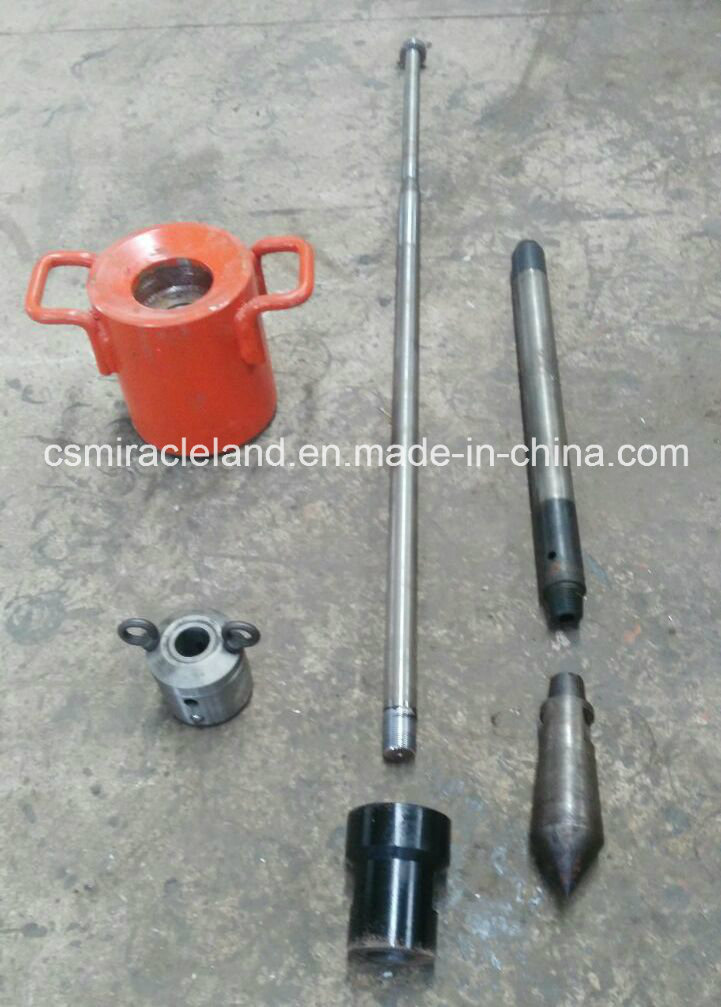

Prod Model: SPT Trip Hammer
Type: Standard Penetration Test
Quality: Good Quality
