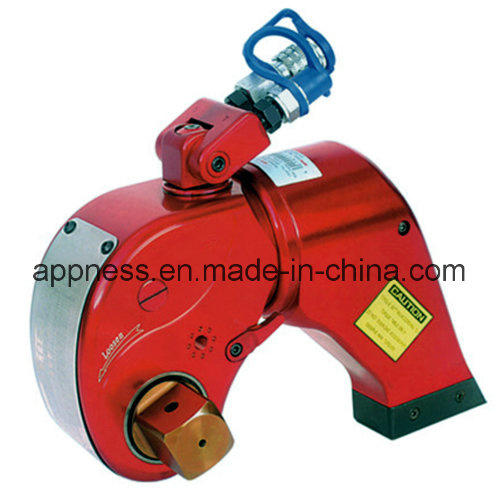

Gdh Series Drive Hydraulic Torque Wrench Gdh50

Gdh Series Drive Hydraulic Torque Wrench Gdh50
Price: US $ 3374-16192.35/Piece
Min Order: 1/Piece
Pay Type: T/T

GDH Drive Hydraulic Torque Wrench
Our Product



Production Description

Innovative Design

Due to its innovative design and the high quality materials used, this tool is extremely durable and easy to operate.
A 360 degree, fully adjustable in-line reaction arm ensures the operator can select a reaction point to suit any application.

Operator Safety

To improve operator safety we have also designed an ergonomic, adjustable torque wrench handle which can be easily fitted to  Hydraulic Torque Wrench. This lightweight, durable accessory can prevent injuries such as trapped fingers by eliminating the need to hold the tool itself.



Production Features

Using high-tech aerospace aluminum titanium alloy materials, adhering to the German industry exquisite design and  manufacturing  processIntegral molded body and 360 °± 180 ° tubing rotary joint,360 ° 60 point fine adjustment  reaction arm, can be adapted to a variety of complex applicationsThe unique anti-reverse rotation back is designed to overcome the bolt deformation caused by the rebound of the wrench phenomenon  Achieve two or four hydraulic wrench synchronous operation to ensure its set torque accuracy within ± 3%Exclusive patented filler hole design,achieve a longer working timeWorking pressure up to 700 bar to ensure that bolts, nuts can be fastened to the workpiece according to the set torque.


Production Specification

Model
   Item
GDH02GDH05GDH08GDH10GDH16GDH20GDH28GDH36GDH50
Max.Torque(Nm)188244667451107321533920108263923539748740
Min.Torque(Nm)188447745107315362011263935404874
Nut side size(mm)16-3622-4827-5530-6436-7242-9042-9048-10064-120
Drive shaft3/4''1''1-1/2''1-1/2''1-1/2''2-1/2''2-1/2''2-1/2''2-1/2''
L1(mm)130170202228237273287323351
L2(mm)182249286326336391433464494
H1(mm)52708190100110120138153
H2(mm)7798125134144164187206217
H3(mm)96127149172181206221258279
H4(mm)133165184207216241256293315
R1(mm)25.834.839.816.850.856.859.870.876.8
R2(mm)102140160184192223248256271
Weight(Kg)1.73.86.6912.924.524.530.744.8

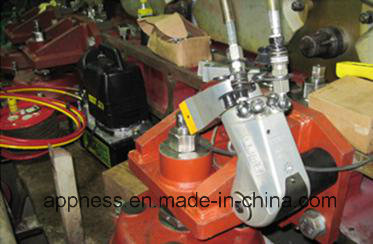

Product Application




Application Range

They are widely used in the fields of petroleum, chemical, natural gas, boilers, nuclear power, pharmaceutical, plant construction and pipeline engineering.

Feature: Anti-Explosion, Ordinary, Anti-Magnetic
Folded: Folded
Accessories Available: Hydraulic Hose, Hydraulic Pump
Min. Torque: 188-7066nm
Max. Torque: 1882-70660nm
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

We also directly involved in automation equipment and tools, high-end manufacturing research and development. Cooperated with Southwest Petroleum University, Southwest Jiaotong University, West China Materials Engineering University, Harbin Welding Institute and other universities and combined with the actual situation of domestic industry. Our experienced engineers dedicate in bringing advanced products and technology into domestic oil and gas field, jointly develop and promote equipment and tools in petrochemical industry with clients, continuously providing customers with better quality, more environmentally friendly, more productive services.
