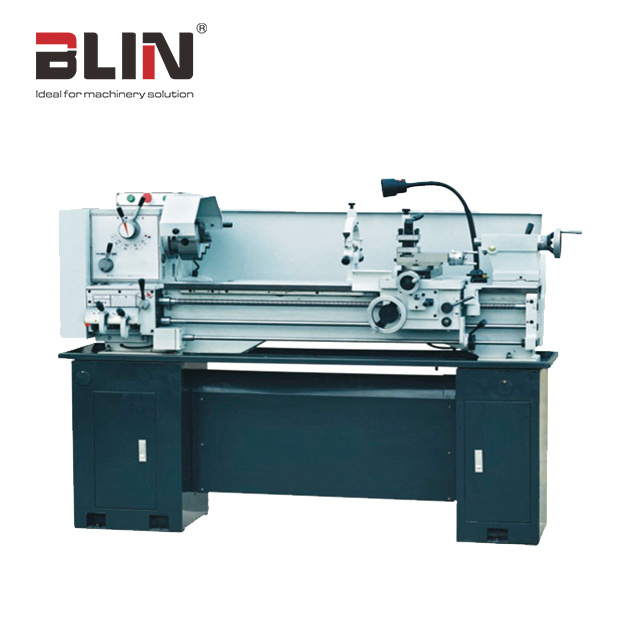

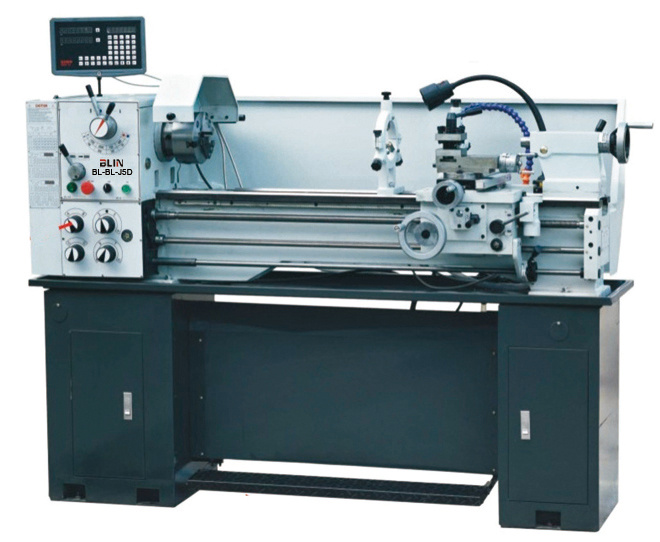

Gap Bed Lathe (BL-BL-J6D)(4-handles gearbox)
Feature:
Ultrasonic harden bed
High precision bearings
Ultrasonic harden and precise ground gears
Easy and fast operating gearbox
Strong motor
ASA D4 cam-lock spindle nose
Various thread cutting
closed type 4-handles gearbox
Standard Accessories:
Tool post wrench
Double-head wrench
Allen wrench
Screwer
Dead Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Install on machine)
Follow rest(Install on machine)
Manual 3-jaw chuck(Install on machine)
steel stand
4-jaw chuck
Working Lamp(common)
Coolant System
Foot Brake
Optional Accessories:
Drilling Chuck
Arbor
Driling Stock
Live Center
Face Plate
Ball screw guard
Work lamp(aluminium cover)
Taper turning Attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
2 speed motor system
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand
| Item | BL-BL-J6D |
| Max. Swing Dia. Over bed | 355mm |
| Max. Swing Dia. Over cross slide | 220mm |
| Max. Swing Dia. In gap | 500mm |
| Guideway width | 186mm |
| Max. Machining length | 1000mm |
| Spindle bore taper | MT5$ |
| Spindle bore | 38mm |
| Step of spindle speed | 8kinds |
| Range of spindle speed | 70~2000rpm |
| Spindle nose | D1-4 |
| Metric thread | 26kinds(0.4~7mm) |
| Inch thread | 34kinds(4~56TPI) |
| Moulder thread | 16kinds(0.35~5MP) |
| Diametral thread | 36kinds(6~104DP) |
| Range of longitudinal feeds | 0.052~1.392mm/r |
| Range of cross feeds | 0.014~0.38mm/r |
| Dia. Of lead screw | 22mm |
| Pitch of lead screw | 3mm or 8TPI |
| Max. travel of saddle | 1000mm |
| Max. travel of cross | 160mm |
| Max. travel of tool post | 70mm |
| Max. travel of tailstock sleeve | 95mm |
| Tailstock sleeve Dia. | 32mm |
| Tailstock sleeve taper | MT3 |
| Main motor power | 1.5kw(2HP) |
| Coolant pump power | 0.04kw(0.055HP) |
| Overall dimension | 1920×750×760mm |
| Left foot stand(L*W*H) | 440×410×700mm |
| Right foot stand(L*W*H) | 370×410×700mm |
| Net/Gross weight | 505/565kg |
| Foot stands(Net/Gross weight) | 70/75kg |

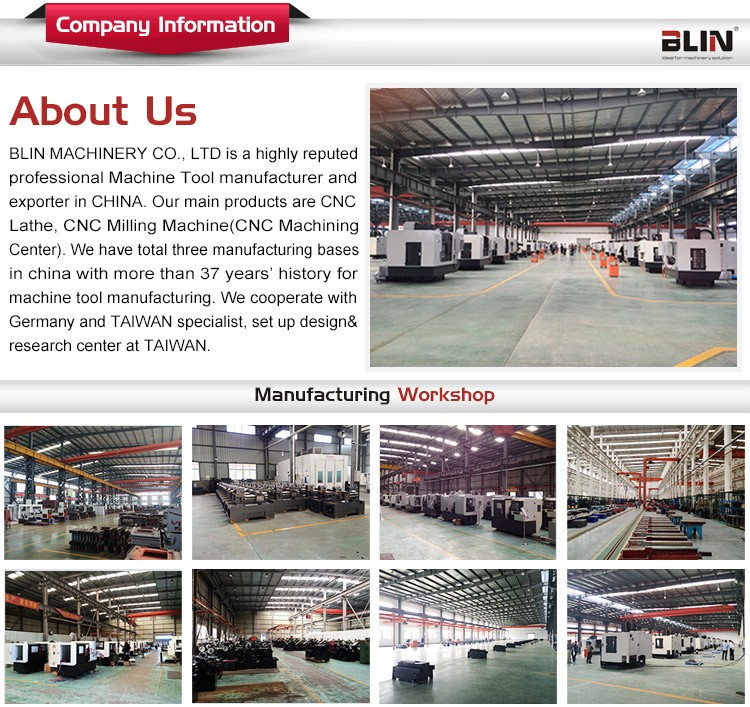

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.
Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

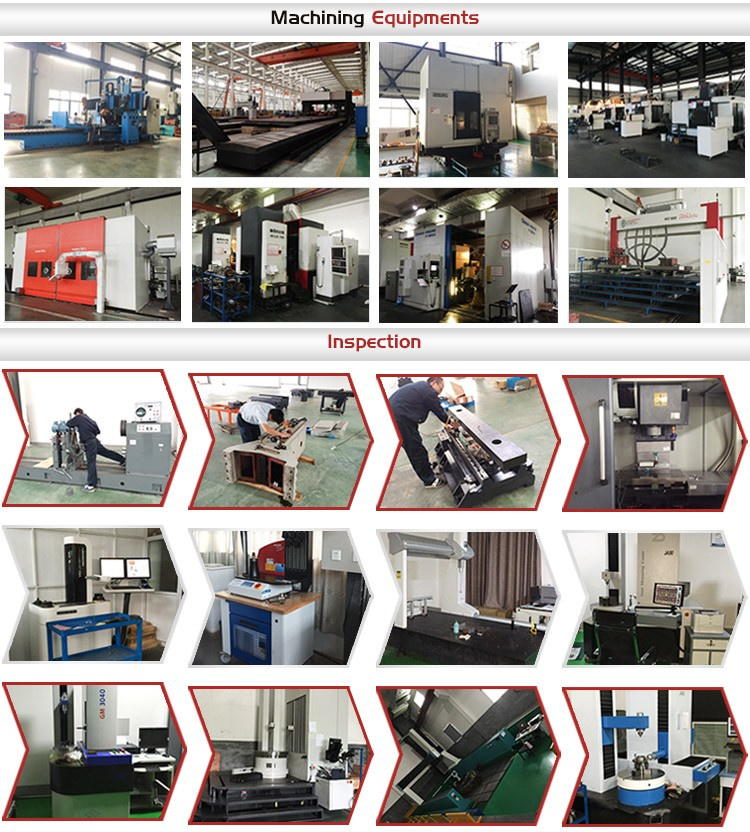

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.
By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.
We look forward to hearing from you at any time!
