Gap Bed Lathe (BL-BL-J2A) (Gear-driven)

Gap Bed Lathe (BL-BL-J2A) (Gear-driven)
Price: US $ 1970unit
Trade Terms: FOB,CFR,CIF
Min Order: 1unit
Pay Type: L/C,T/T,D/P,Western Union,Paypal

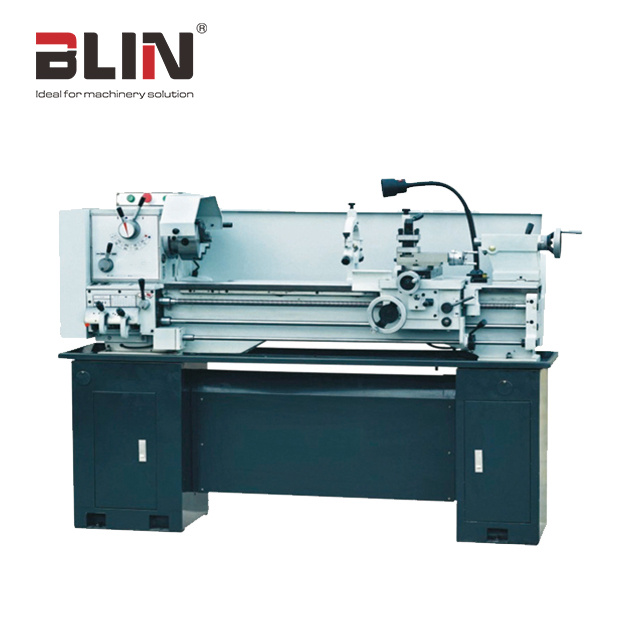

Gap Bed Lathe (BL-BL-J2A)(Gear-driven)

High class cast iron
V shape guideway, ultrasonic harden and precise ground
Gap bed
Cross and longitudinal interlocking feed, with enough safety
Inching switch for test running
Metric/Imperial threading available
Precise gear-driven headstock
Norton Lever or Closed Box can be choosen

Standard Accessories:
Tool post wrench
Double-head wrench
Allen wrench
Dead Center
Center sleeve
Change gears
Oil gun
Tool box
Steady rest(Install on machine)
Follow rest(Install on machine)
Manual 3-jaw chuck(Install on machine)
steel board stand
4-jaw chuck
Optional Accessories:
Drilling Chuck
Driling Stock
Live Center
Face Plate
Working Lamp(common)
Coolant System
Foot Brake
Ball screw guard
Work lamp(aluminium cover)
Taper turning Attachment
4-jaw chuck adapter
Tool post guard
Chuck guard
Back Splash guard
2 axes DRO
2 speed motor system
Fast change tool post
Two speed motor
Without 4-jaw chuck
Without steel board stand


 Closed box
Max. Swing Dia. Over bed305mm
Max. Swing Dia. Over cross slide173mm
Max. Swing Dia. In gap440mm
Guideway width182mm
Max. Machining length940mm
Spindle bore taperMT5
Spindle bore38mm
Step of spindle speed9kinds
Range of spindle speed64~1500rpm
Metric thread11kinds(0.5~3.5mm)
Inch thread14kinds(7-1/2~48TPI)
Range of feed amount0.051~0.303mm
Dia. Of lead screw22mm
Pitch of lead screw3mm or 8TPI
Max. travel of saddle850mm
Max. travel of cross150mm
Max. travel of tool post90mm
Max. travel of tailstock sleeve100mm
Tailstock sleeve Dia.32mm
Tailstock sleeve taperMT3
Main motor power1.1kw(1.5HP)
Coolant pump power0.04kw(0.055HP)
Overall dimension1780×750×760mm
Left foot stand(L*W*H)400×370×700mm
Right foot stand(L*W*H)300×370×700mm
Net/Gross weight395/445kg
Foot stands(Net/Gross weight)60/65Kg

Prod Model: BL-BL-J2A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Max. Swing Dia. Over Bed: 305mm
Max. Swing Dia. Over Cross Slide: 173mm
Max. Swing Dia. In Gap: 440mm
Guideway Width: 182mm
Max. Machining Length: 940mm
Spindle Bore: 38mm
Main Motor Power: 1.1kw
Coolant Pump Power: 0.04kw
Net/Gross Weight: 395/445kg
Foot Stands(Net/Gross Weight): 60/65kg
Type: Horizontal Lathe
Power Source: Electric
Controlling Mode: Artificial
Automatic Grade: Semiautomatic
Setting Mode: Floor-type
Precision: High Precision
Processing Accessory: Chuck
Tool Holder: One

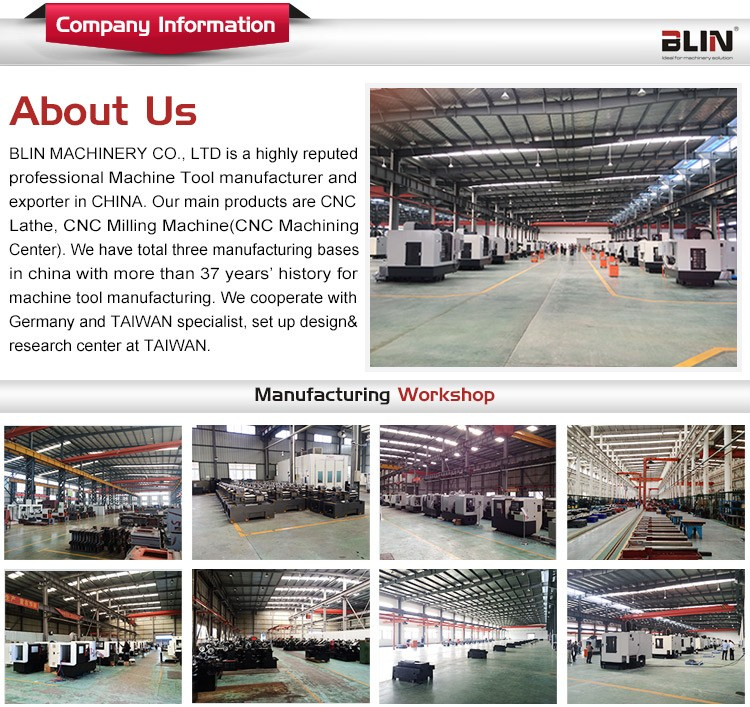

BLIN MACHINERY Co., Ltd. (China) is a high reputed professional CNC Machine Tool manufacturer and exporter, main products are CNC Lathe, CNC Milling Machine(CNC Machining Center). Has total three production bases in China with more than 37years history for machine tools manufacturing. Set overseas sales center in NINGBO city, include warehouse& showroom covered area 1500 square meter.

Besides our self-manufactured machines, we also cooperating closely with a number of leading machine builders in China for long term. We may provide nearly all types regular and special machines which customers need.

Focusing on international market, BLIN has placed the priority on both product quality and service. Our quality program starts as soon as customer's order is placed, and will follow through every stage including manufacturing, assembly, final testing, packing, and shipment to ensure the quality and spec. Strictly as customer's requirements. We promise every provided machine will be strictly tested and be ready to use before delivery.

By now, we already set up stable and long term business with customers from most countries in the world, such as USA, Mexico, Colombia, Ecuador, Argentina, Thailand, Indonesia, AUTRALIA, Iran, India, Russia, Germany, Poland, Spain, Finland, Netherlands etc. Our many models are hot sales in overseas market. We are sincerely prepared to co-operate with customers all over the world for mutual benefit and progress.

We look forward to hearing from you at any time!
