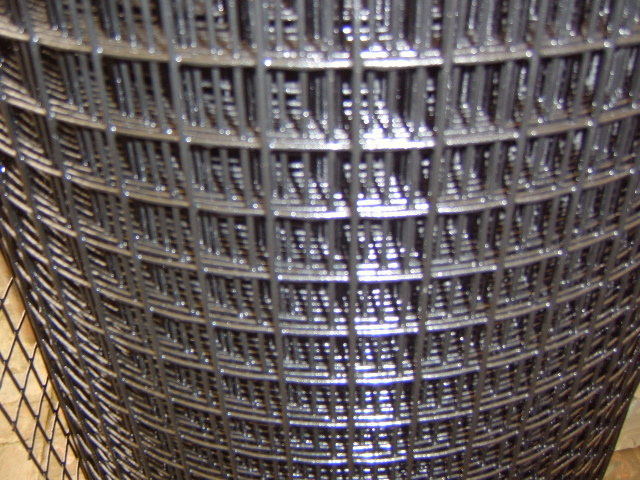

Galvanized Welded Wire Mesh for Building
| Price: |
US $ 55-80/Square Meter |
| Min Order: |
100/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product introduction:
Reinforcing Galvanized 6x6 10/10 welded wire mesh
Materail:
Low Carbon Steel Wire
Stainless Steel WireWelded wire mesh have 4 kinds of product:

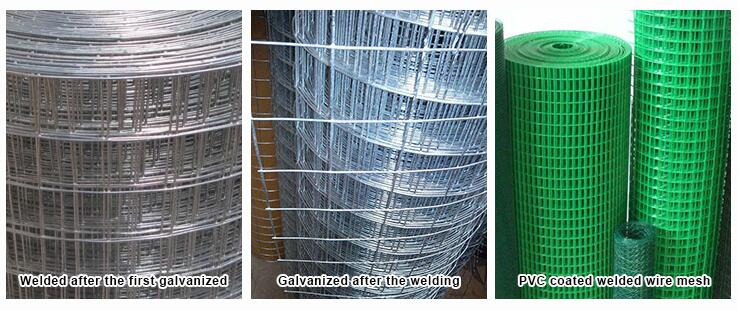

Elcetro galvanized Welded wire mesh
Hot dipped galvanized welded wire mesh
PVC coated galvanized welded wire meshBlack wire/ no coated welded wire mesh
CharacteristicsThe welded wire mesh is welded by excellent lowcarbon steel wires and
Passivated and plasticized through cold plating (electroplating), hot dipping
And PVC plastic coating. With flat surface, even mesh count, firm welding
Spots and stable structure, it features its strong completeness, partial good
Machining performance, stability, excellent corrosion resistance and rushPrevention.The specification of Galvanized Welded Wire Mesh:| Galvanized Welded Wire Mesh |
| Opining | Wire Diameter |
| Inch | mm | BWG | mm |
| 1"x1" | 25mmx25mm | 14#-11# | 2.0mm-3mm |
| 2"x1" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 2"x2" | 50mmx50mm | 14#-8# | 2.0mm-4mm |
| 3"x2" | 75mmx50mm | 14#-6# | 2.0mm-5mm |
| 3"x3" | 75mmx75mm | 14#-6# | 2.0mm-5mm |
| 4"x2" | 100mmx50mm | 14#-4# | 2.0mm-6mm |
| 4"x4" | 100mmx100mm | 14#-4# | 2.0mm-6mm |
| 5"x5" | 125mmx125mm | 14#-4# | 2.0mm-6mm |
| 6"x6" | 150mmx150mm | 14#-4# | 2.0mm-6mm |
Note: Special specifications can be customized. |
|
PVC Coated Welded Wire Mesh:| PVC Coated Welded Mesh |
| Opening | Wire Diameter |
| In inch | In metric unit(mm) |
| 1/4"x1/4" | 6.35mx6.35mm | 21,22,23,24,24,25 |
| 1/2"x1/2" | 12.7mmx12.7mm | 16,17,18,19,20,21 |
| 3/4"x3/4" | 19mmx19mm | 16,17,18,19,20,21 |
| 1"x1" | 25.4mmx25.4mm | 15,16,17,18,19,20 |
Technical Note:
1.Standard roll length:30m;width:0.5m to 2.5 2.Special sizes avaliable at request 3.Packing:in plastic in rolls .Custom packing available at reques |

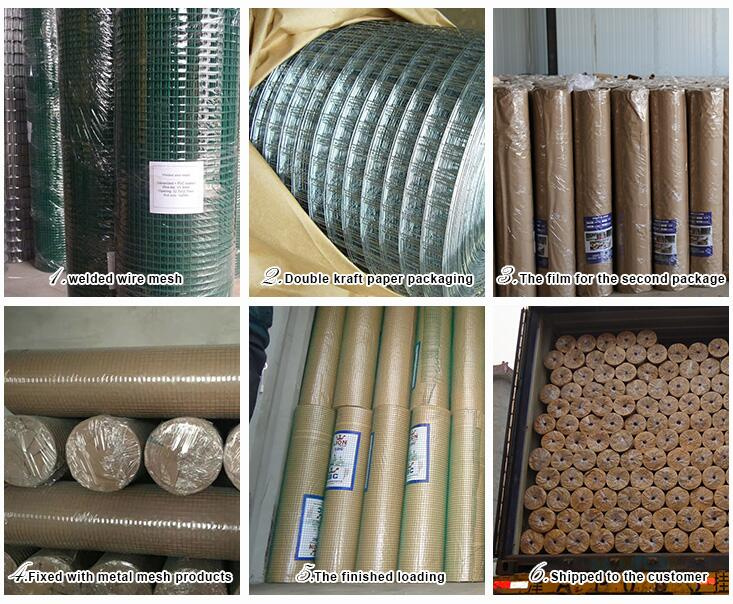

Packing and deliveryWire mesh mesh with four layer packaging protection, neatly placed in the transport vehicle, so that products can reach the destination safely.

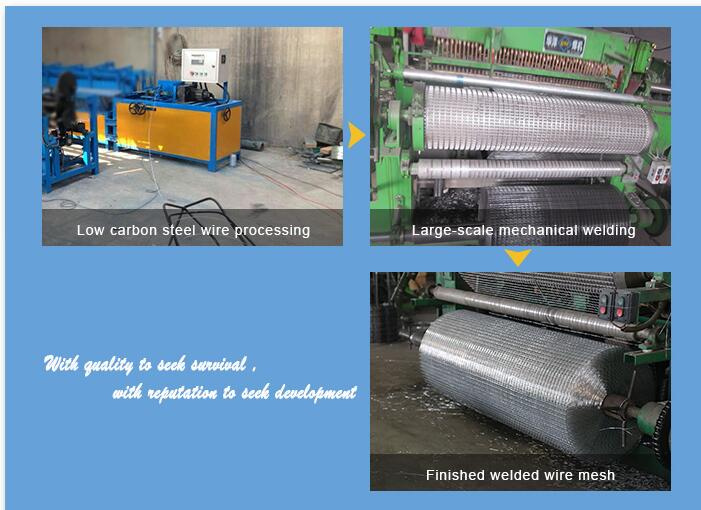

Production ProcessWelded wire mesh selection of high-quality low-carbon steel wire, through the automation of precision and precision mechanical processing after forming, the use of zinc surface treatment process, the net surface is smooth and tidy, solid structure evenly.
About our company
Contact me now
| Prod Model: |
NYL-02 |
| Aperture: |
3/8"-4" |
| Wire Diameter: |
0.5-4mm |
| Width: |
0.5-1.8m |
| Usage: |
Protection |
| Length: |
15-30m in General |
| Delivery Time: |
in General Within 15 Days. |
| Material: |
Low-Carbon Iron Wire |
| Hole Shape: |
Square |
| Mesh Size: |
1/4 Inch |
| Surface Treatment: |
PVC Coated |
| Application: |
Filter |
| Color: |
Green |
| Type: |
Welded Mesh |
| Certification: |
ISO9001 |
| Condition: |
New |
| Weave Technique: |
Welding |
