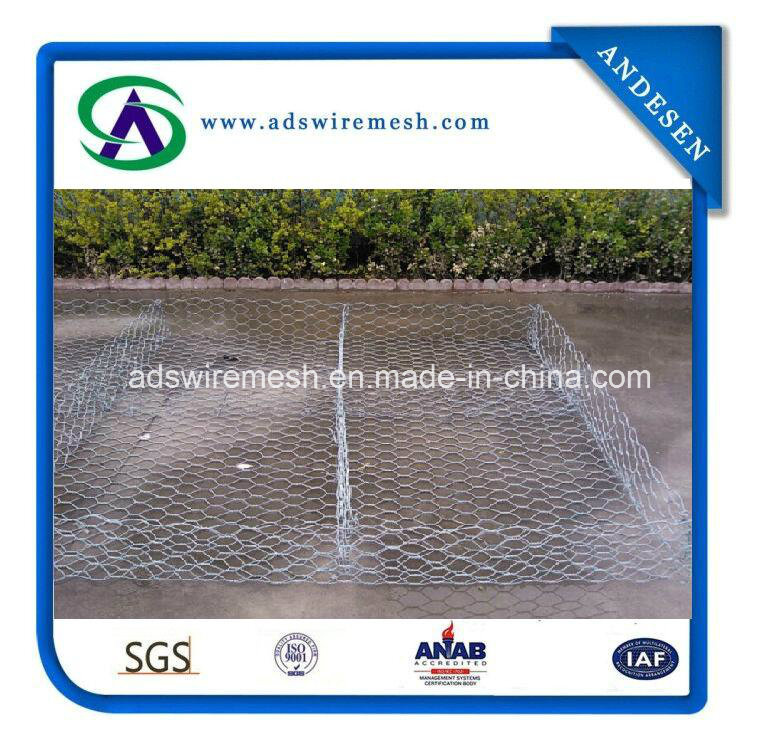

Gabion Box
Box are made of double - twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
1. Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2
Gabion Box Packing:
Gabion box applications:
1)Control and guide of water or flood
2)Flood bank or guiding bank
3)Preventing of rock breaking
4)Water and soil protection
5)Bridge protection
6)Strengthening structure of soil
7)Protection engineering of seaside area
| Hexagonal Wire Mesh Gabion Wire Mesh Specification |
| Length*Width*Height | 2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m or Customized |
| Mesh Size | 60*80; 80*100; 100*120 as standard, or customized |
| Wire Diameter | 2.00mm to 4.0m or customized |
| Surface Finish | Electro Galvanized
Hot Dipped Galvanized
Galfan Coated
PVC Coated |
| Weaving | Double Twist |
| PVC Coated Gabion Box Specification |
Opening
(mm) | Wire Diameter(Metal Wire) (mm) | Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
| 60X80 | φ2.0-2.8 | φ2.0/3.0-2.5/3.5 |
| 80X100 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 |
| 80X120 | φ2.0-3.2 | φ2.0/3.0-2.8/3.8 |
| 100X120 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 |
| 100X150 | φ2.0-3.4 | φ2.0/3.0-2.8/3.8 |
| 120X150 | φ2.0-4.0 | φ2.0/3.0-3.0/4.0 |
