| Price: | US $ 0.1-50/Meter |
|---|---|
| Min Order: | 100/Meter |
| Pay Type: | L/C,T/T,Paypal |
| size dxp(mm) | width | Approx Weight(kg/m) | Working LoadLimit(t) | Test Load(KN) | Breaking Load min. FN | |
| inside min.w1 | outside max. w3 | |||||
| 3x9 | 3.8 | 10.7 | 0.21 | 0.28 | 7.1 | 11.3 |
| 4x12 | 5 | 14.3 | 0.35 | 0.5 | 12.6 | 20.1 |
| 5x15 | 6.3 | 17.9 | 0.54 | 0.8 | 19.6 | 31.4 |
| 6x18 | 7.5 | 21 | 0.79 | 1.1 | 12.7 | 45.2 |
| 6.3x19 | 7.9 | 22.6 | 0.86 | 1.25 | 31.2 | 49.9 |
| 7x21 | 9 | 24.5 | 1.07 | 1.5 | 37 | 61.6 |
| 8x24 | 10 | 28 | 1.38 | 2 | 48 | 80.4 |
| 9x27 | 11.3 | 32.2 | 1.76 | 2.5 | 63.6 | 102 |
| 10x30 | 12.5 | 35 | 2.2 | 3.2 | 76 | 125 |
| 11.2x33.6 | 14 | 40.1 | 2.71 | 4 | 98.5 | 158 |
| 11x43 | 12.6 | 36.5 | 2.33 | 3.8 | 92 | 154 |
| 12x36 | 15 | 42 | 3.1 | 4.6 | 109 | 181 |
| 12.5x38 | 15.5 | 42.2 | 3.3 | 4.9 | 117 | 196 |
| 13x39 | 16.3 | 46 | 3.8 | 5 | 128 | 214 |
| 14x42 | 18 | 49 | 4.13 | 6.3 | 150 | 250 |
| 14x50 | 17 | 48 | 4 | 6.3 | 150 | 250 |
| 15x46 | 20 | 52 | 5.17 | 7 | 168 | 280 |
| 16x48 | 20 | 56 | 5.63 | 8 | 192 | 320 |
| 16x49 | 24.5 | 59.5 | 5.71 | 8 | 192 | 320 |
| 16x64 | 23.9 | 58.9 | 5.11 | 8 | 192 | 320 |
| 18x54 | 23 | 63 | 6.85 | 10 | 246 | 410 |
| 18x54 | 21 | 60 | 6.6 | 10 | 246 | 410 |
| 19x57 | 23.7 | 63.2 | 7.7 | 11.3 | 270 | 450 |
| 20x60 | 25 | 70 | 8.6 | 12.5 | 300 | 500 |
| 22x65 | 28 | 74.2 | 10.7 | 15.3 | 366 | 610 |
| 22x66 | 28 | 77 | 10.2 | 15.3 | 366 | 610 |
| 22x86 | 26 | 74 | 9.5 | 15.3 | 366 | 610 |
| 24x72 | 32 | 82 | 12.78 | 18 | 432 | 720 |
| 24x86 | 28 | 79 | 11.6 | 18 | 432 | 720 |
| 26x78 | 35 | 91 | 14.87 | 21.3 | 510 | 720 |
| 26x92 | 30 | 86 | 13.7 | 21.3 | 510 | 850 |
HANGZHOU DELE ELECTRICAL Co., Ltd is located near the beautiful West Lake in Hang zhou city, Xiaoshan district, Zhejiang Province 30 minutes from Xiaoshan Airport (Hangzhou), 2 hours' drive from Shanghai & Ningbo Port. We can provide excellent advice and support to insure you get the right products at the lowest cost. Quality Policy Provide Customer with Satisfactory Products and Services with Continuous innovation. Our business aim is to provide the best quality products at the most competitive prices. We have a group of highly skilled and trained personal having rich experience in international service and have a wealth of knowledge, experience in the field of lifting and lashing.
We pride ourselves for offering the highest quality products and for our passion to provide the best possible service and support to our customers. Our main goal is to exceed every customer's expectations.
Service - Our Customer Service Department is recognized as the best in the industry; Skilled, qualified, friendly and willing to go the extra mile.
Engineering Expertise - Knowledgeable and responsive Engineering Department that is customer focused and available to answer questions and provide immediate response to customer calls.
Lead Time - Best turn-around time in the industry. You need it - our plant will get it out to you.

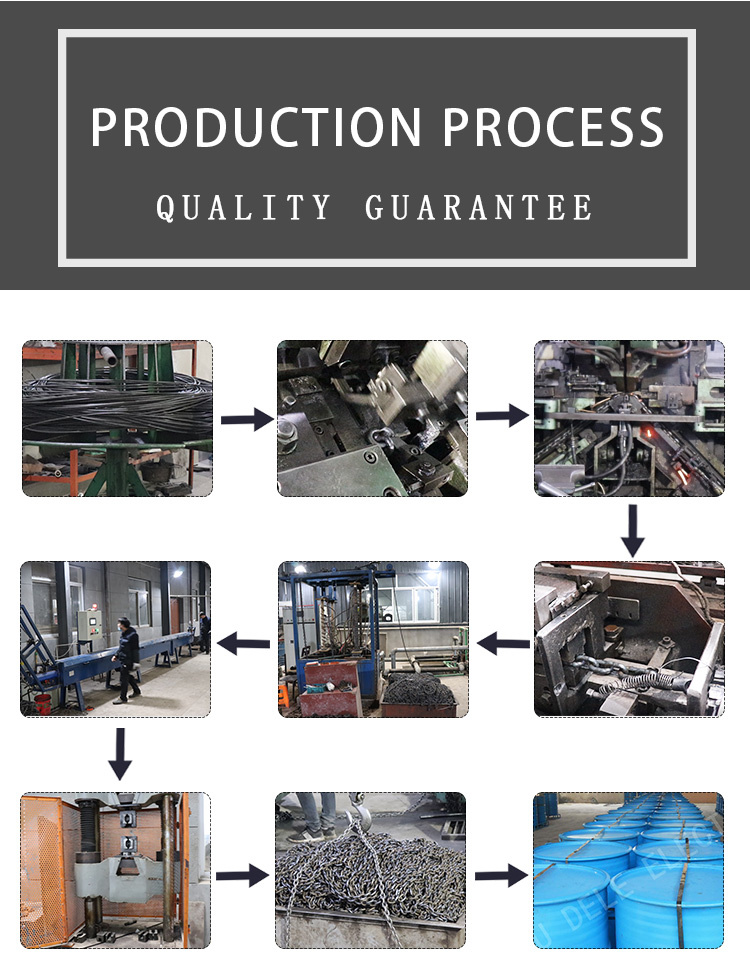

Production Capability - Our factory is equipped with full on-site machining, welding and fabrication abilities

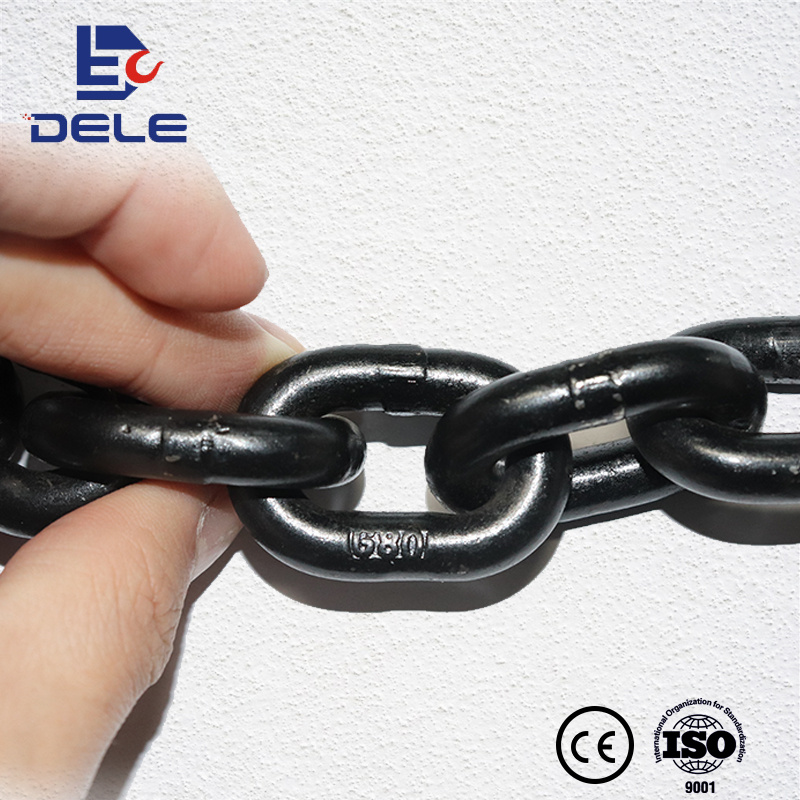

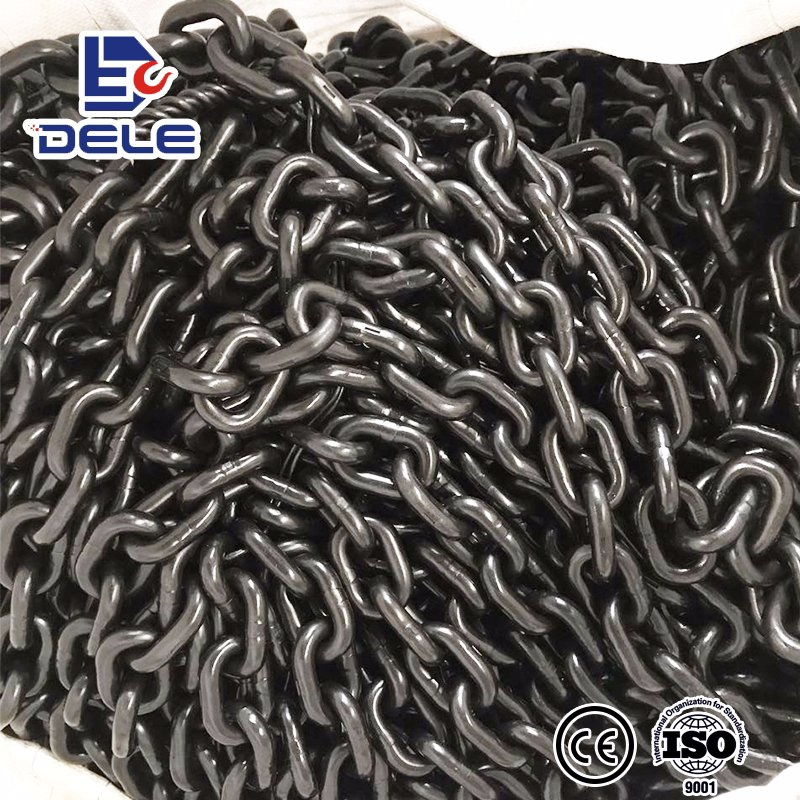

| Prod Model: | G80 |
|---|---|
| Usage: | Load Chain |
