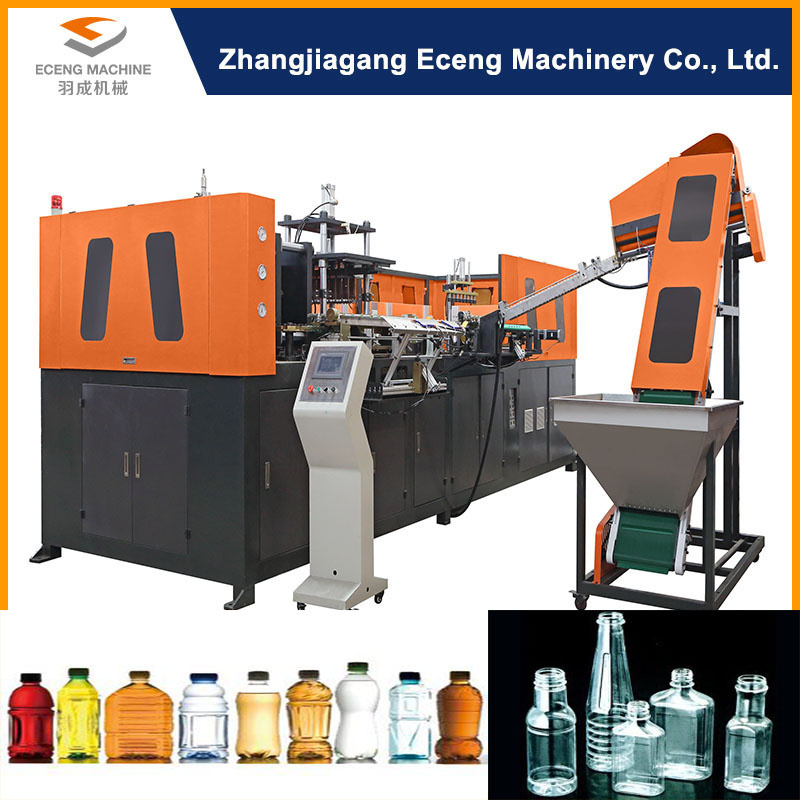

fully automatic hot fill PET blowin machine
Model:YCQ-2L-4E
YCQ type Automatic PET Bottle Blowing Machine is suitable for blowing PET bottles of various shapes, volume from 100 ml to 1000 ml, wide application for blowing mineral water bottles, soda bottles, cola bottles..
1,New double crank four pull-up bar clamping structure, cross balance fixed slide
2,Sealing, stretch adapts parallel bars (CIS) design, combined, good for products molding
3,Advanced gas path design, single, dual air intake can be; low-pressure mechanical clamping, sealing, stretching; high pressure blowing molding
4,Programmable PLC controller automatically control, microcomputer touch screen convenient operation
5,Bottle embryo heated by infrared, controllable constant pressure control, so as to achieve the best blowing precision
Features of Bottle Blowing Machine
1. Our Automatic Bottle Blowing Machine is Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.
2. Pneumatic elements from FESTO (German) and SMC (Japan)
3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.
4. Malfunction alert and diagnostic units allow easy maintenance.
5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..
6. Oven can be made according the different preform requirements of customers
| Item | YCQ-2L-4E |
| Bottle type specification | Cavity | 4 |
| Theory output | 4000-5000 |
| Max. volume | 2L |
| Bottle mouth maximum overall diameter | 28-38mm |
| Bottle biggest diameter | 100mm |
| Bottle maximum height | 330mm |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 1.25KW |
| Maximum heating power | 40KW |
| All electric machine installation | 43KW |
| Actual consumption | 21.5KW |
| Air pressure specification | Work pressure | 7-9kg/c |
| Low-pressure gas consumption | 1600L/min |
| Blow bottle pressure | 25-35kg/c |
| Higher -pressure gas consumption | 3000Ltr/min |
| Frozen water specification | Work pressure | 5-6 kg/c |
| Temperature range | 10ºC |
| Consumption | 8000kcal/hr |
| Frozen water flow | 88L/min |
| Machine specification | Size of the machine | 4.5x1.6x1.9 |
| Weight of the machine | 3.5ton |
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory to install the machine ,and give you the operating manual ,and train your employee until they can operate the machine well.
3.we provide one year warranty with spare parts free.
The sample service
1.we can send you the video of the running machine.
2.you are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
Customized service
1.we can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on).
2.at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
well-known for its fine quality for plastic bottle blowing machine
After sales service
1> Find our products through www.encengcompany.com Alibaba,GlobalMarket,Made in China,Globalsources,Tradekey.
2>After one year , we can help you to maintain the machine and the accessories are provided only one the cost price.
3>Every 3 year , we can help to overhaul the machine freely(labor).
4>Free production technology and process configuration.
5> We can help you to design the product line , workshop and provide turn-key project.
6>Installation: Experts' team to buyer's country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $60/day during the engineer's journey.
7>Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
