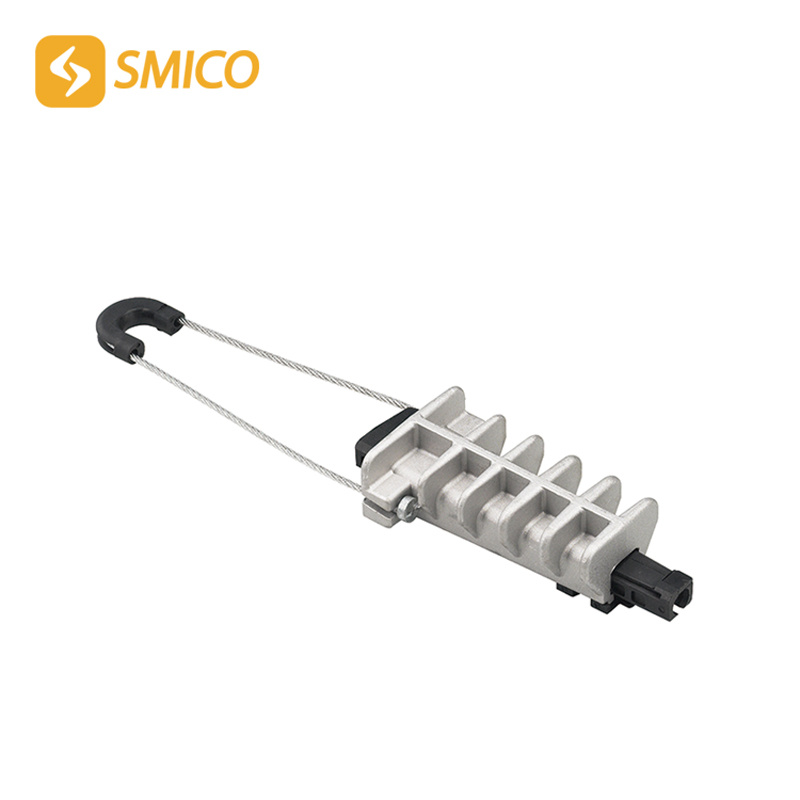

Full Tension Aerial Cable Clamp (DR1500) 35-70mm2

Full Tension Aerial Cable Clamp (DR1500) 35-70mm2
Price: US $ 2.6-3/Piece
Min Order: 1/Piece
Pay Type: T/T,Western Union,Paypal
Contact Supplier
ZHEJIANG SMICO ELECTRIC POWER EQUIPMENT CO., LTD.
Showroom Product Company Profile
                   DR1500 ABC Cable Aerial Electrical Fittings Anchoring Connector

 Introduction
 The anchoring clamp is designed to anchor LVABC lines with insulated neutral messenger.
 The stainlessteel flexible bail is equipped with an movable insulating saddle and the  two sleeves are compressed on the ends and locked on the clamp body.

  Feature
 1.High mechanical stability
 2. Reduced dimensions for easier handling
 3. The cable gripping device avoids damage to sheath

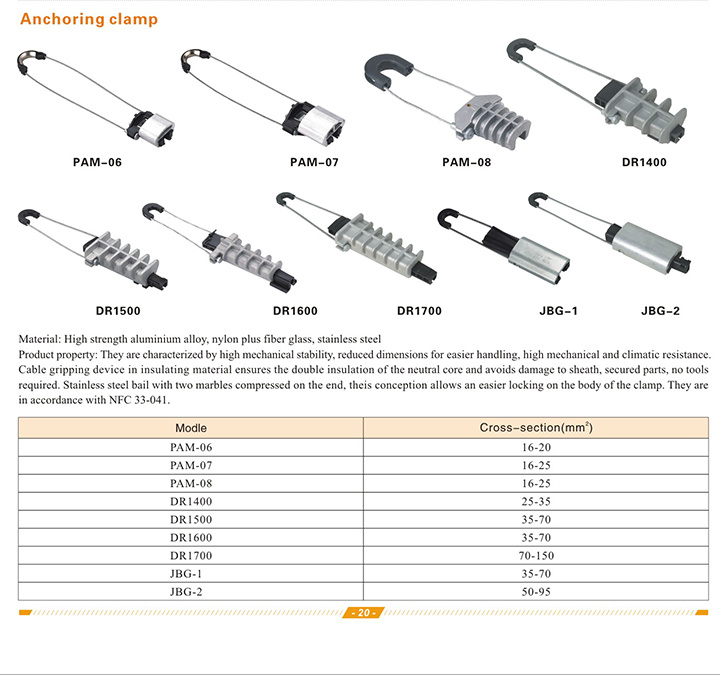

MODELCROSS-SECTION( mm2)
DR150035-70
















(Performance testing)
2.1 Mechanical performance:the grip force of the wire clamp is 1/10 bigger than the break force of the lead. It comply with GB2314-1997
2.2 Temperature rise performance: under the conditìon of big current, the temperature rise of connector is less than that of connection lead.
2.3 Heat circle performance:confirms to GB/T2317.3-2000,the beat circle trial standard for electric fitting.
2.4 Waterproof insulatìon performance:confirms to the relevant requirements in Part 2 of GB/TI3140.4-1998,
2.5 Resistance to corrosion performance: under the conditìon of SO, and salt fog, it can do three tìmes of fourteen days circle testìng.
2.6 Environmental aging performance:under the circumstance of ultraviolet, radiation, dry and moist, expose if with change of temperature and beat impulse for six weeks.
2.7 Fire-proof performance: insulation material of the connector withstands glowing filament test. Confirm to the requirements in Chapter4-1 0 of GBrr5169.4

Prod Model: DR1500
Conductor Range: 35-70 mm2
Application: Low Voltage 1kv
Weight: 110g
Zhejiang Smico Electric Power Equipment Co., Ltd. Located in Liushi Town, Yueqing City, the China Electrical City. Have conveniently traffic 25km respectively from Wenzhou airport and railway station, and 5km from 104 national road freeway.

SMICO CONNECTOR is a leading professional manufacturer specialized in heavy duty connector, electric power fittings, switches and so on. SMICO connectors are suited for the hardest requirements in industrial environmenont. SMICO connector has been widely used in Automatic, machine made, power and equipment industries. SMICO connector is in conformance with the standard DIN 5510-2 and EN 61984.

As we strive to hold on our promise of "Human Oriented, Technology Advanced", we make hard effort to increase our global market presence. We strictly produce the goods accordance with the ISO9001, and most of for our products have the CE and CB certificate.

We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together. We are always your electrical friends.
