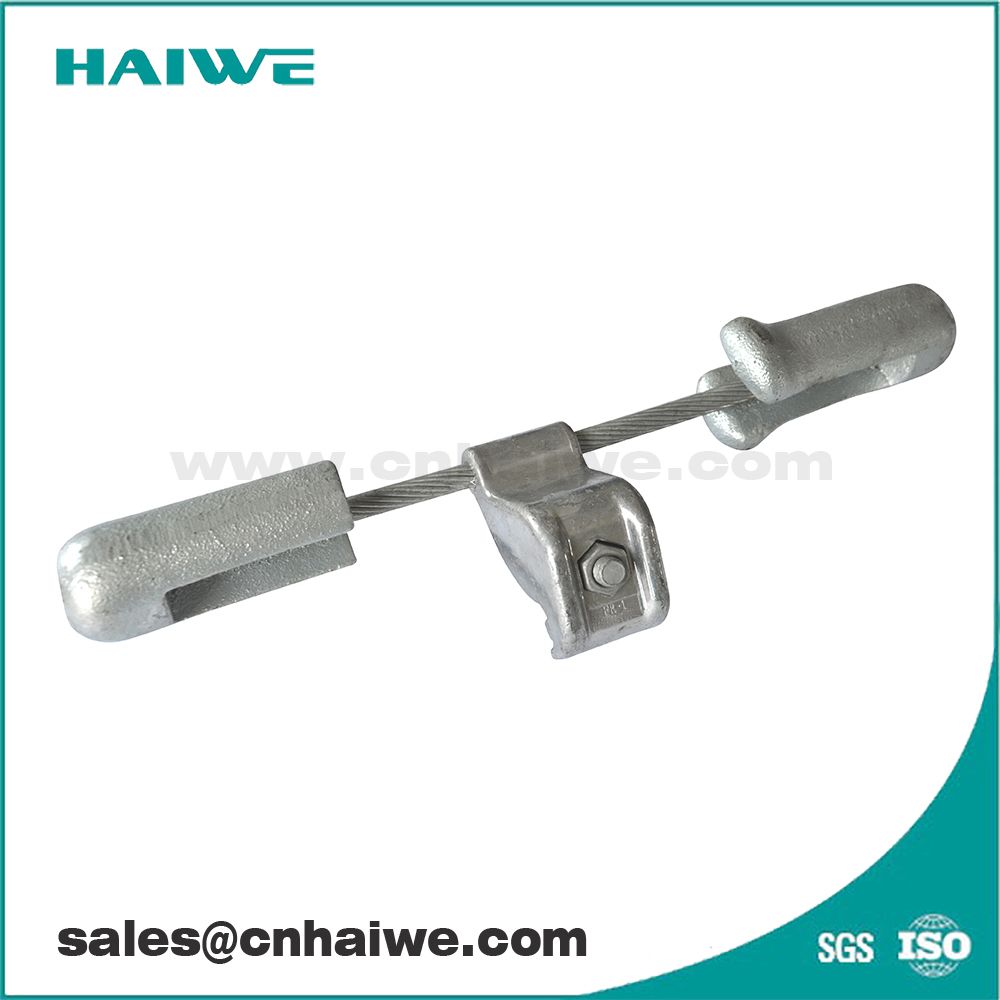

FR Opgw Stockbridge Vibration Dampers in Transmission Power Line Hardware
Application:Vibration damper is suitable for use on all conductor and earth wire constructions including ACSR, AAC, AAAC ,AACSR (Aluminium alloy conductor steel reinforced). A dreaded phenomenon in overhead transmission lines is the occurrence of high-frequency, short-wave vibrations in conductors, shield wires and aerial telecommunication cables due to natural wind flow.
Features:
1. remove the wind energy from the conductor
2. reduce vibration stresses sufficiently to ensure a long life for the overhead transmission lines.
3. economical , effective and easy to install ,correct installation easily recognized from the ground
4. no lateral forces and therefore ideal for sensitive fiber-optic overhead cables
5. minimized bending strain
Material:
Body & keepers: aluminium alloy.
Counter Weights: grey iron, painted or hot dip galvanized.
Other parts: hot dip galvanized steel.
| Catalog No. | Suitable
Conductor | Dimensions(mm) | Weight
(kg) |

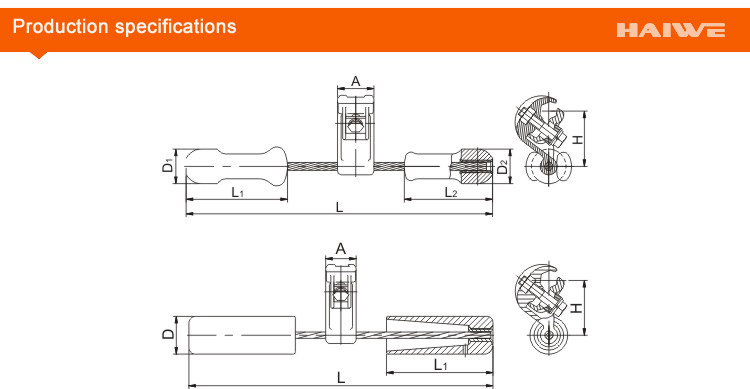

| D1 | D2 | A | H | L1 | L2 | L |
| FR-1 | 7.0~12.0 | 48 | 48 | 50 | 81 | 138 | 118 | 429 | 2.54 |
| FR-2 | 11.0~20.0 | 48 | 48 | 50 | 81 | 138 | 118 | 429 | 2.61 |
| FR-3 | 18.0~28.0 | 57 | 57 | 60 | 91 | 167 | 146 | 505 | 5.00 |
| FR-4 | 23.0~36.0 | 64 | 64 | 60 | 97 | 218 | 163 | 550 | 6.00 |
| FR-5 | 33.0~38.0 | 64 | 64 | 70 | 127 | 218 | 163 | 550 | 7.90 |
| FR-6 | 36.0~40.0 | 74 | 74 | 70 | 127 | 325 | 325 | 650 | 11.00 |
Stockbridge Vibration Damper (type FD-L)Material:Counter Weights: grey iron, painted or hot dip galvanized
Other parts: hot dip galvanized steel
| Type | Suitable conductor cross-section(mm) | Dimensions(mm) | Steel
wire | Weight(kg) |
| D | A | H | L1 | L |
| FD-1L | 35~50 | 40 | 50 | 81 | 95 | 300 | 7/2.6 | 1.5 |
| FD-2L | 70~95 | 46 | 50 | 81 | 130 | 370 | 7/3.0 | 2.4 |
| FD-3L | 120~150 | 56 | 50 | 81 | 150 | 450 | 19/2.2 | 4.5 |
| FD-4L | 185~240 | 62 | 50 | 91 | 175 | 500 | 19/2.2 | 5.6 |
| FD-5L | 300~500 | 67 | 50 | 96 | 200 | 550 | 19/2.6 | 7.2 |
| FD-6L | 500~630 | 70 | 50 | 96 | 200 | 550 | 19/2.6 | 8.6 |
