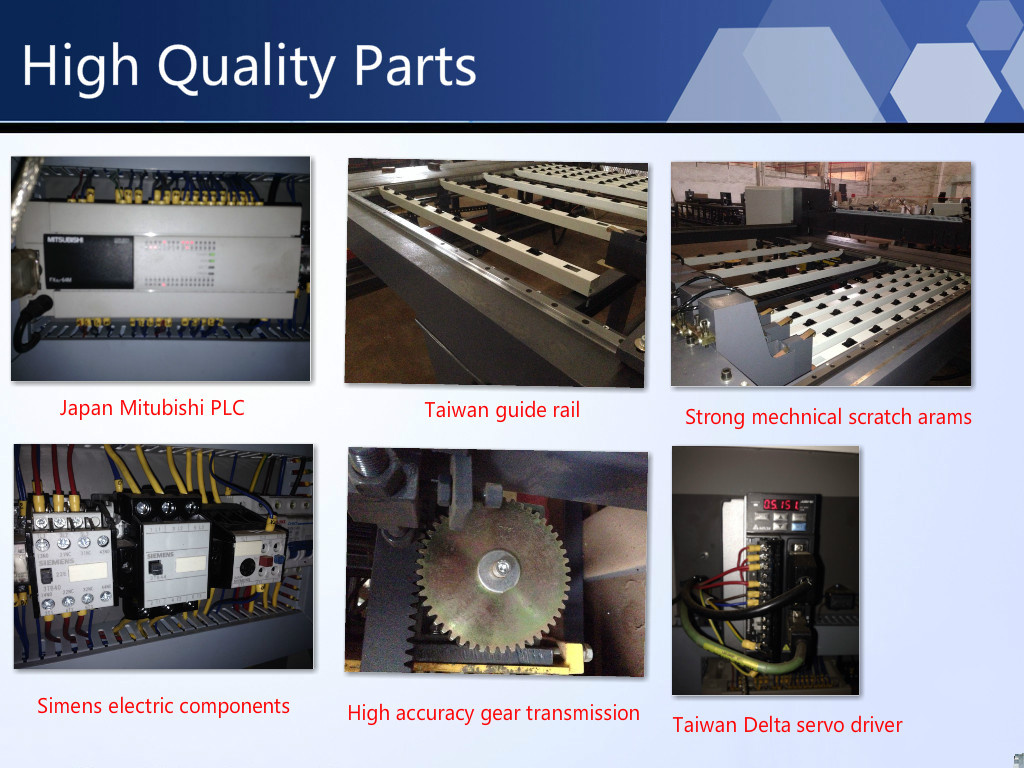

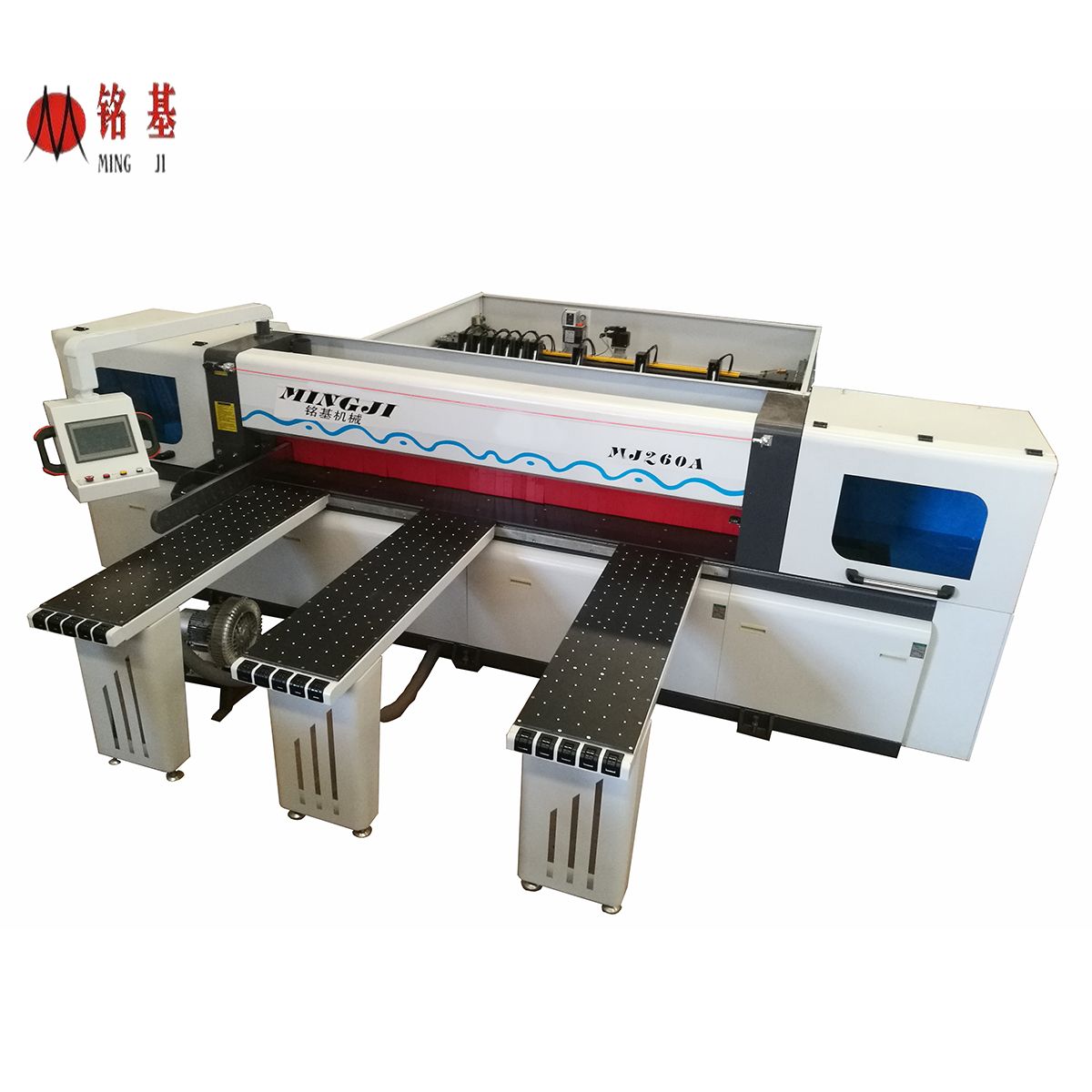

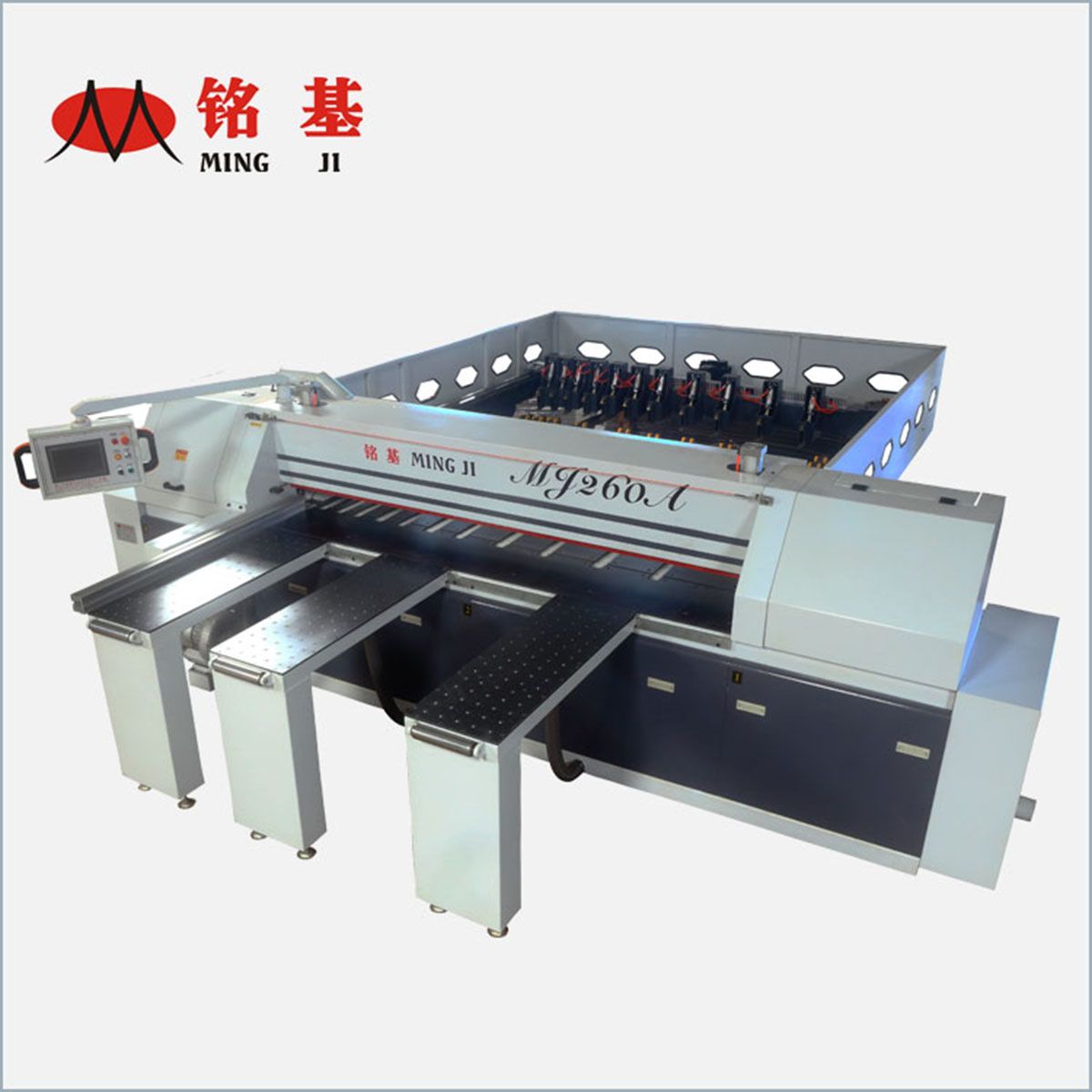

Application: This woodworking cnc panel saw machine can be used on various of different materials : MDF, particalboard, plywood, solid wood, PVC, Acrylic, ABS, aluminum etc. Features: 1. The machine equipped with air floating work table, easy to load the materials. 2.All PLC control, easy and simple operation. Equipped with Optimized software, can be directly imported material listing, optimized cutting and printing labels. 3.There is a fault alarm device,machine will stop at once when it work failure and have the function of fault detection,easy to check the cause of the problem. 4.Machine use international famous electric components from Japan, to ensure stability and high accuracy.
Technical Data:| Model | MJ260A |
| Max cutting length | 2600mm |
| Max cutting thickness | 90mm |
| Diameter of main saw blade | 355/400mm |
| Diameter of main saw spindle | 60mm |
| Rotation speed of main saw blade | 5600r/min |
| Diameter of scoring saw blade | 180mm |
| Diameter of scoring saw blade | 30mm |
| Diameter of scoring saw blade | 6100r/min |
| Forward speed of saw carriage(stepless) | 0-60m/min |
| Backward speed of saw carriage | 0-100m/min |
| Drive motor of main saw blade | 11kw |
| Guide rail | Linear guide rail |
| Scoring saw power | 1.5kw |
| Automatic feeding motor | 1kw |
| Drive motor of saw carriage | 1.5kw |
| High pressure ventilator motor | 1.5kw |
| Total power consumption | 17kw |
| Automatic feeding motor | 0-60m/min |
| Pnenmatic pressure | 6-8kg/cm2 |
| Table height from floor | 900mm |
| Net weight | 4200kg |
| Automatic feeding speed | 5300*5200*1750mm |
Technical support: 1.Before buying the machine: sales people will introduce all information of the machine to customer, if customer come to factory, we will make sample product for customer
2.After buying the machine: if any problems of machine happen, customers can find our technical engineer by email, phone, SMS, Wechat, whatsapp etc, we will reply once we see the message.3.We will provide free training for customer in our factory;4. Sending engineer to customer's location is optional, but the related fees should be paid by customerAfter sales service:1.The whole machine guarantee for 12 months2. During the guarantee period, if malfunction caused by non-artificial factor, we will provide consulting service for the customer, if the damage can not be fixed, we will send replaces parts to the customer, customer should paid the freight cost.
Established in 2009, Foshan Mingji Woodworking Machinery Co., Ltd is a professional manufacturer of woodworking machinery located in Lunjiao Town, which is famous for "China woodworking machinery manufactoring base".
We have several series of production lines, main products are computer panel saw, CNC panel saw, beam saw, CNC router, edge banding machine, hinge drilling machine and other related woodworking machinery. With the help of modern manufacturing equipment and professional technician, we already delivered more than 1500 machines to other countries and "MingJi " Brand products receive good reputation in China and across the world.
We always keep in mind that "quality first, hommization is the core, ensure professional after sales service". We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
