FM/UL/Ce Approvals Grooved Pipe Coupling and Fitting for Fire Safety System

FM/UL/Ce Approvals Grooved Pipe Coupling and Fitting for Fire Safety System
Price: US $ 0.5-12/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal

NamePipe Coupling and Fitting
StandardANSI, ASTM, DIN, JIS, GB, BS, etc
Size1/2 inch--12 inch
MaterialDuctile Iron ASTM A536/QT450-10
Surface FinishPaint Epoxy Powder or Galvanized
ColorRed-RAL3000,Blue,Orange or as customer want
Working Pressure300 PSI/2.07 Mpa
TypeGrooved
ConnectionFemale
ApprovalFM/UL/ISO
Usage1) Automatic sprinkler system for fire protection on commercial, civil and municipal constructions like water supplying, gas supplying, heat supplying, etc.
2) Industrial pipeline system on shipping,mine,textile oil field,powder plant, etc.
3) Pipeline system on subway station, railway station airport, seaport, bridge, etc

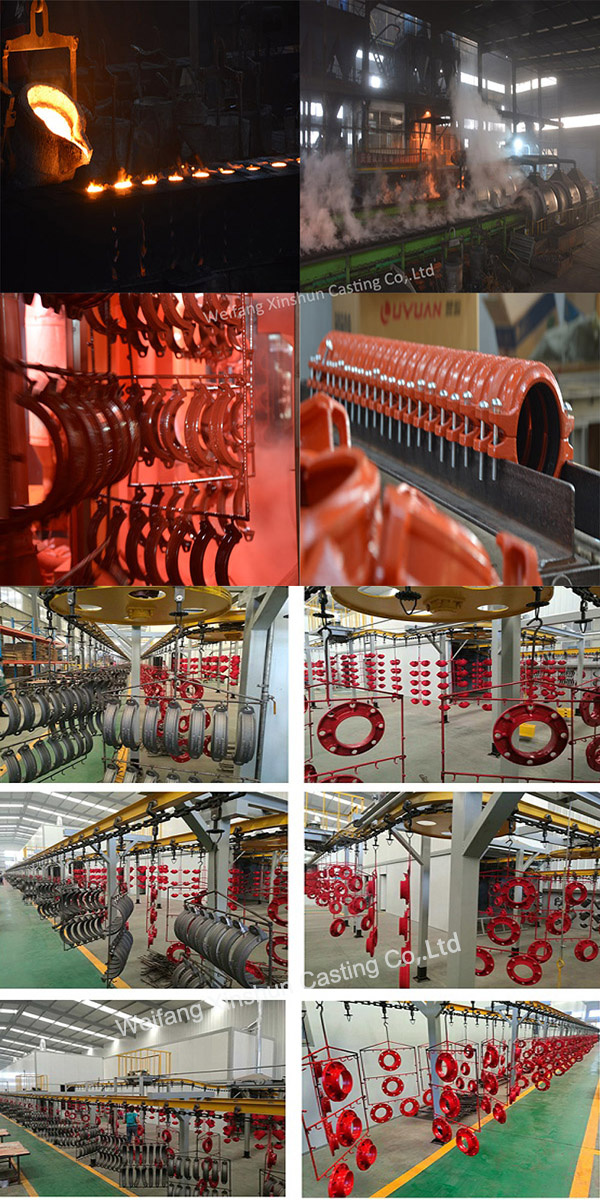

 Factory Processing:
Smelting---Shot Blasting---Grooved&Machining---Painting---Assemble---Packing

Bolts and Nuts
Lab Hear treated and electro galvanized bolt with oval neck and heavy duty hexagon nuts.
Track head meet to the physical and chemical requirements od ASTM A 449 and physical requirement
of ASTM A-183.

Rubber Gasket
Material CompositionGasket Mark  ColorApplocable Temperature

          EPDM

        E

  Black

      34ºC- +150 ºC

       Silicon rubber

       S

  White

      -40ºC-+177ºC

       Nitrile rubber

       N

  Black

     -29ºC-+82ºC
Notes: 1.Gasket rings of different materials will be used for different liquid mediums.
       2.Products can be supplied as per customers requirments.

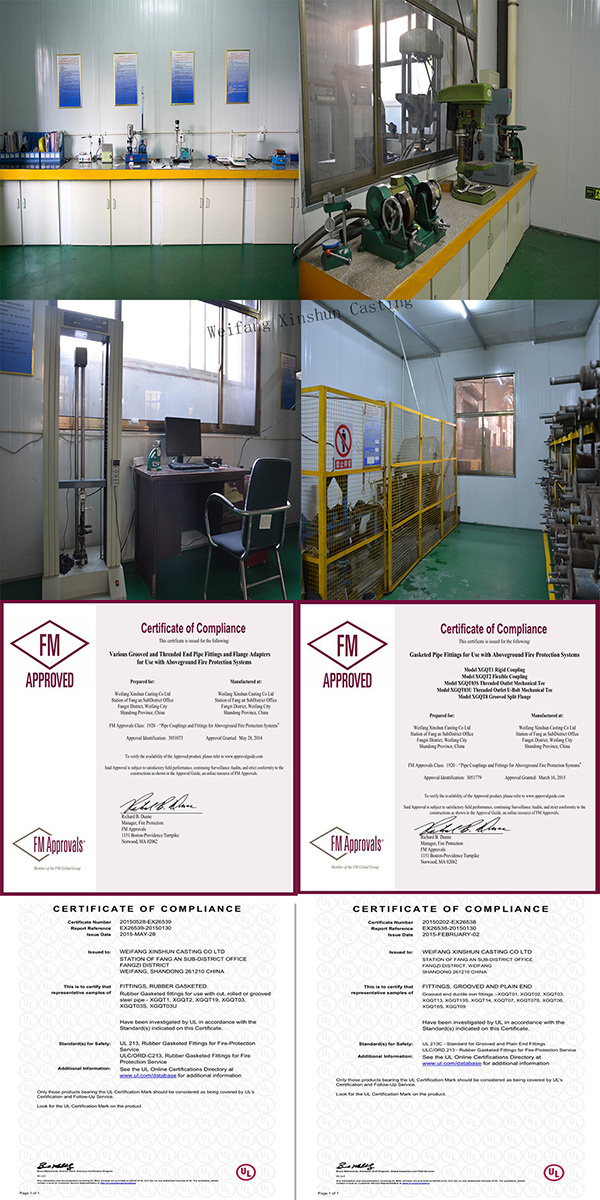

Quality Test:
Our Lab for testing the material (bolt,nut,seal ring,sands,coal,etc) and the finished products
(quality and performance test as the UL/FM,GB5135.11-2006)

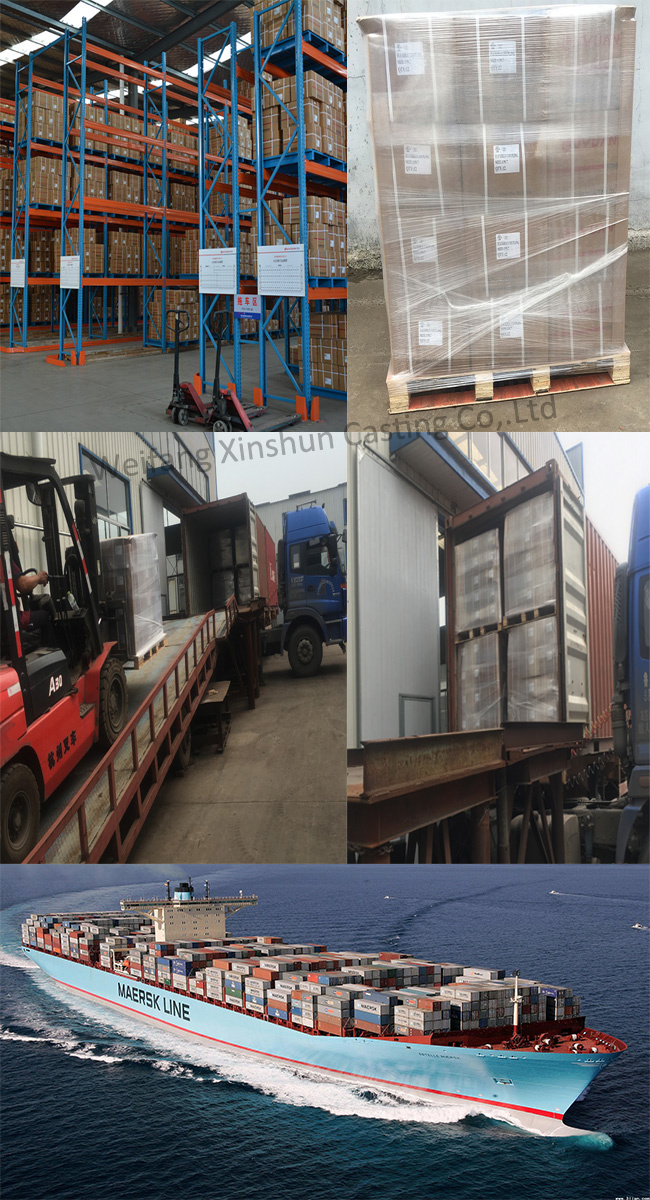

Pack & Deivery
PackCarton box with pallet
PaymentT/T :30%deposit,the balanced 70% before delivery
L/C at sight
PortQingdao
Delivery TimeWithin 30 days after we get the deposit payment


Factory Introduction

Weifang Xinshun Casting Co,.Ltd,a factory specializing in production of Ductile Iron pipe fitting
with over 12 years professional experiences.Our pipe fittings have been approved by UL and FM
of USA in 2004,
We factory has three automatic DISA casting line and CNC lathe,Modeling
machine center,Automatic coating and packaging line.Our Products have high reputation at
home and abroad and we have been exporting to USA,Canada,Mexico,Chile,Columbia,Peru,Italy,
Saudi Araba,Bangladesh,South Africa and so on.

Exhibitions (NFPA USA,INTERSEC DUBAI)& Customers visiting our Factory


If you have a chance in future,welcome to visit our factory

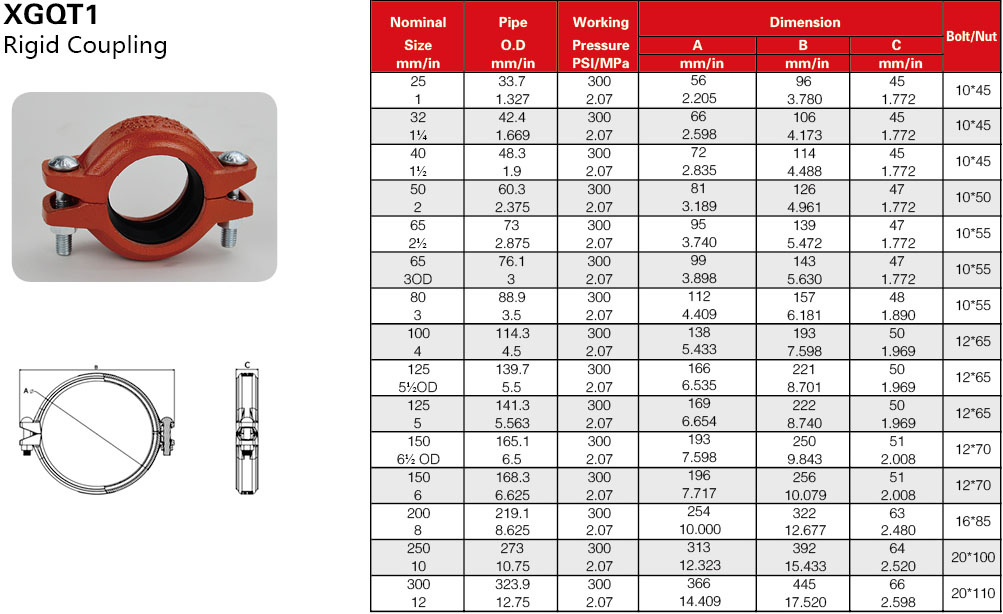

Prod Model: XGQT1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fittings Size: 1"-12"
Fittings Technics: Casting
Fittings Tensile Strength: Min.65,000(MPa-448)
Fittings Yield Strength: Min.45,000(MPa-310)
Fittings Elongation: Min.12%
Fittings Gasket: Rubber Gasket Self Lubrication
Fittings Surface: Epoxy Powder/Galvanized/Paiting
Fittings Bolts & Nuts: Comforming to ISO898-1 Class 8.8
Fittings Cerfiticate: FM/UL/Ce/CCC
Flexible Or Rigid: Rigid
Connection: Grooved or Threaded
Structure: Squal
Material: Ductile Iron
Standard: ASTM/ANSI/BS
Weifang Xinshun Casting Co., Ltd established in 2005, located on Weifang City- The world kite capital, Shandong Province, China.

Our company is a large-scale manufacturer specialized in production of Ductile iron Grooved couplings and fittings for over 12 years, There are 450 employees in our factory, including 185 skilled workers, 10 senior engineers, 6 mold developments staffs and 12 quality inspectors. The annual capacity is over 50000 Tons. Our company has professional R&D team, Sales team and After-sales service team to meet all needs of customers.

Our company has been passed ISO9001: 2008 quality system and our grooved couplings and fittings have been approved by CCC of China, FM and UL of American, and European Union CE certificate, Products are on sale over 300 cities of China and exported to the United State, Canada, Mexico, Columbia, Chile, Peru, Brazil, Panama, Spain, Saudi Arabia, Turkey, Korea, South Africa etc. More than 20 countries and areas. Our "LUYUAN" brand has been becoming the well-known brand in China, enjoying high reputation among the customers for its excellent quality, competitive prices and professional service.

There are three automatic casting production lines in our factory, One new DISA molding line imported from Denmark is under construction, the production process use fully automatic intelligent control system. We have CNC lathe, Mold machining center, Automatic coating and packaging line and so on. We also have a very professional laboratory with full series of testing and inspection, such as hydrostatic strength testing, raw material receiving inspection, batch chemical composition inspection, microstructure testing, dimension inspection, first article inspection, in- process inspection and final visual inspection in order to ensure the product quality.

With mature and advance technology, quality product, prudent working style, we believe we will be your best supplier!
