Flat Spring+ Rubber Coating Civil Engineering Diamond Wire

Flat Spring+ Rubber Coating Civil Engineering Diamond Wire
Price: US $ 42-45/Meter
Min Order: 50/Meter
Pay Type: L/C,T/T,D/P,Western Union
Description

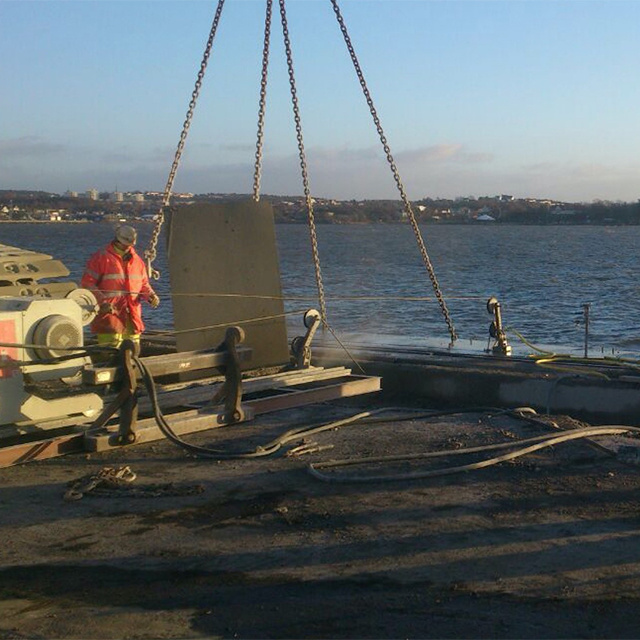

Diamond wire technology is also widely used in construction industry, for controlled demolition of buildings, bridges, piers, concrete pipes and underwater construction.

With features as below:
1. Easy operation for cutting.
2. Easy movement and installation of cutting machine.
3. Available for big and irregular building cutting.
4. Available for any direction and part cutting.
5. No pollution with high efficiency.
6. No damage for construction etc.

Please find the performance of our wire for your kind reference as below:

Application 1: For cutting the road base or bridge  (Concrete: C50; Density of steel 3-5%, Diameter of steel: 12mm screwed)
Cutting speed: 3-5M2/Hour
Cutting life: 4-5M2/LM

Application 2: For the railway bridge (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 32mm screwed, twin lines with 10cm distance)
Cutting speed: 2-3M2/Hour
Cutting Life: 2.5-3M2/LM

Application 3: For the Highway (Concrete: C50; Density of Steel: >5%; Diameter of Steel: 25mm screwed, twin lines with 15cm distance)
Cutting Speed: 2-3M2/Hour
Cutting Life: 4-6M2/LM


Feature
1) Keentool studied the materials to be cut to design the bond and select diamond according to strength grading of cement, diameter and density of steel reinforced;
2) Keentool wires use the top quality steel cable from Germany;

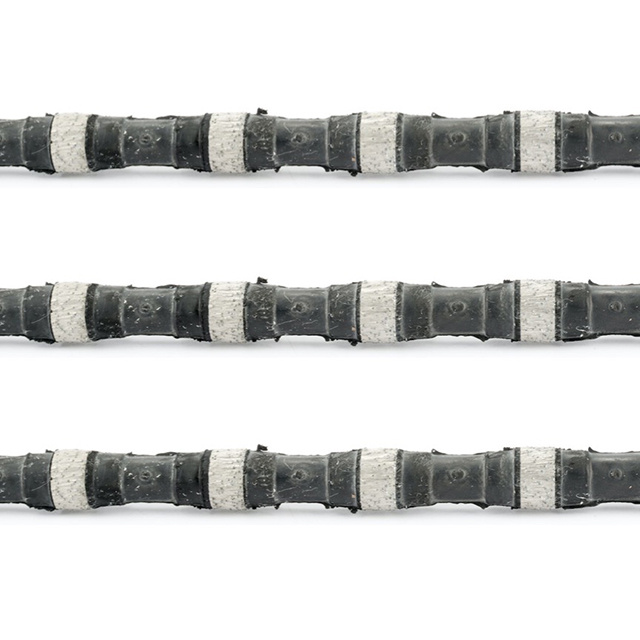

3) Keentool developed special rubber and the technology of vulcanization, with strong flat spring between beads to make sure our diamond wire can work in most hard-working condition

Technical Data
ApplicationArt NoSpecification (mm)Beads/MReinforcement
To be widely used for cutting reinforced and highly reinforced concrete  ROC-C110R¢11.0×6.540Rubber+Spring
ROC-C105R¢10.5×6.540Rubber+Spring
Cutting MaterialLinear Speed (M/S)Cutting Speed (M2/H)Cutting Life
(M2/M)
Reinforced Concrete24-262-33-5
Highly Reinforced Concrete20-241-32-4
Beads SpecOut DiameterLength of work layer (mm)Bead LengthManufacture Tech
¢11.06.511Sintered
¢10.56.511Sinte

Packaging & Shipping:

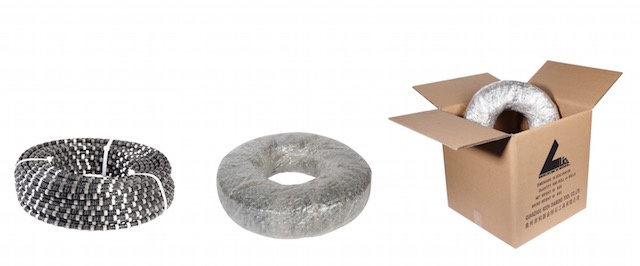

Packaging: Carton with water proof plastic.
Meters/Roll: 50/60Meters/Roll
NW: 17KG-18.5KG
Sample lead time: In 3 working days.
Delivery time: In 14 days for quantity of 1000 Meters diamond cutting wire







Our Services:
1. Diamond Wire Cutting Operation Training and Guidance
2. Full Consulting Service and Turnkey Solutions for the Stone Quarry







Always at your service!





Prod Model: G635B
Reinforcement: Flat Spring+Rubber
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.

We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:

1. For stone Quarry:

Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.

Consultant service for project evaluation, quarry development and mining construction

Consultant and marketing service for block distribution

2. For stone Factory:

Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.

3. For civil construction:

Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.

Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction

Diamond blade for cutting concrete, reinforced concrete and asphalt

Diamond Core Drills for concrete reinforced concrete, wall and asphalt

Diamond polisher for polishing of concrete floor, wall and blocks

The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
