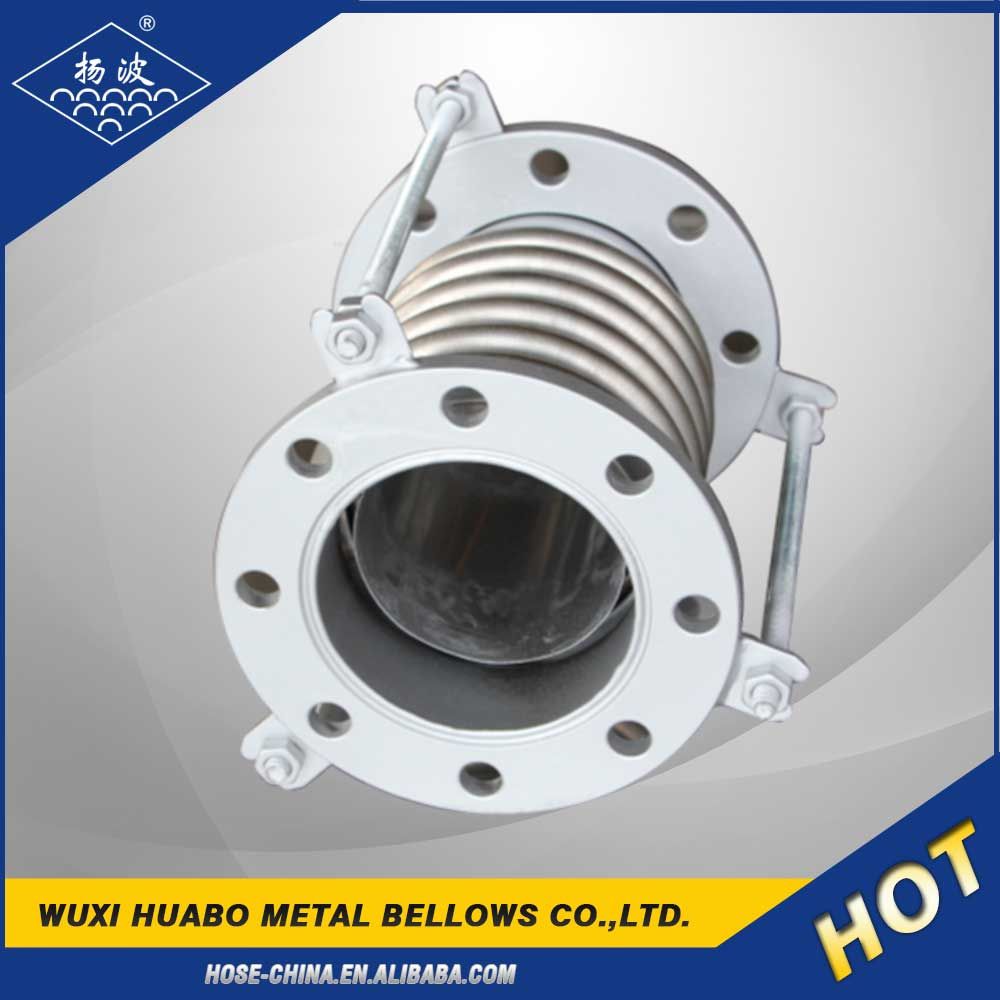

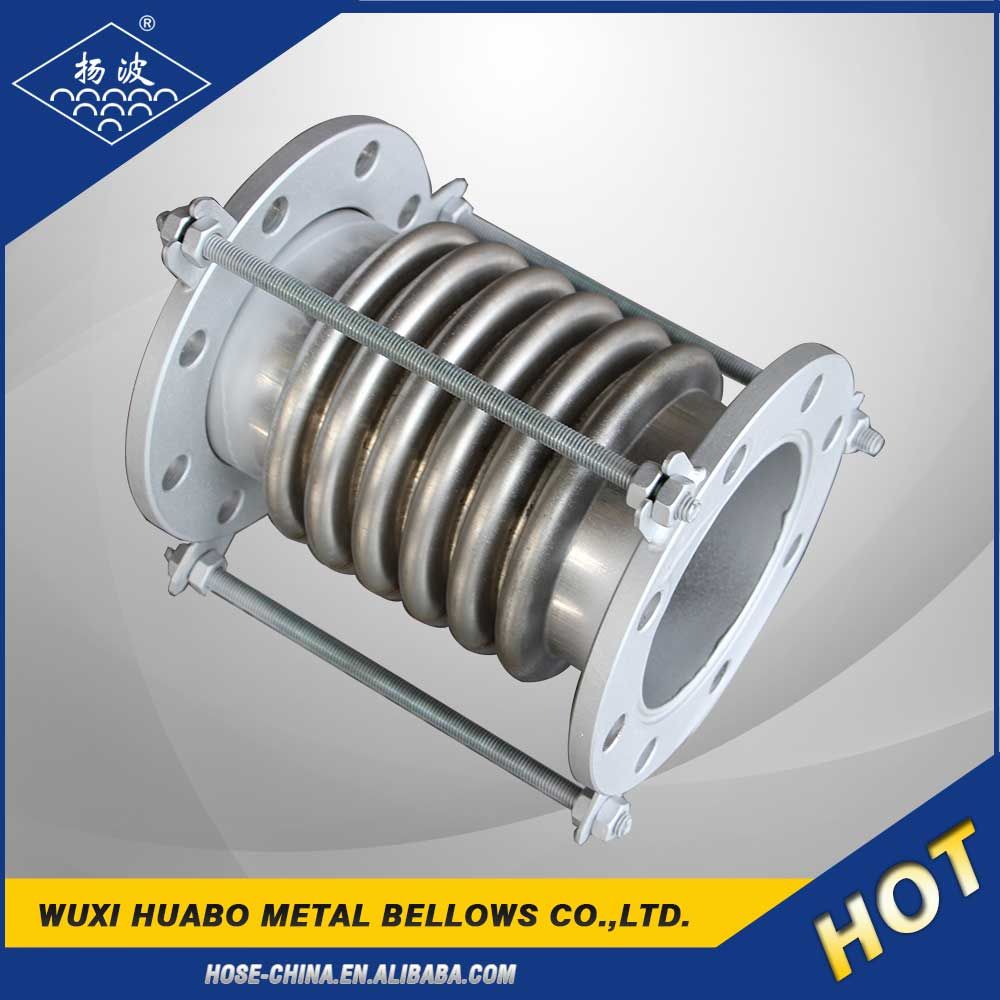

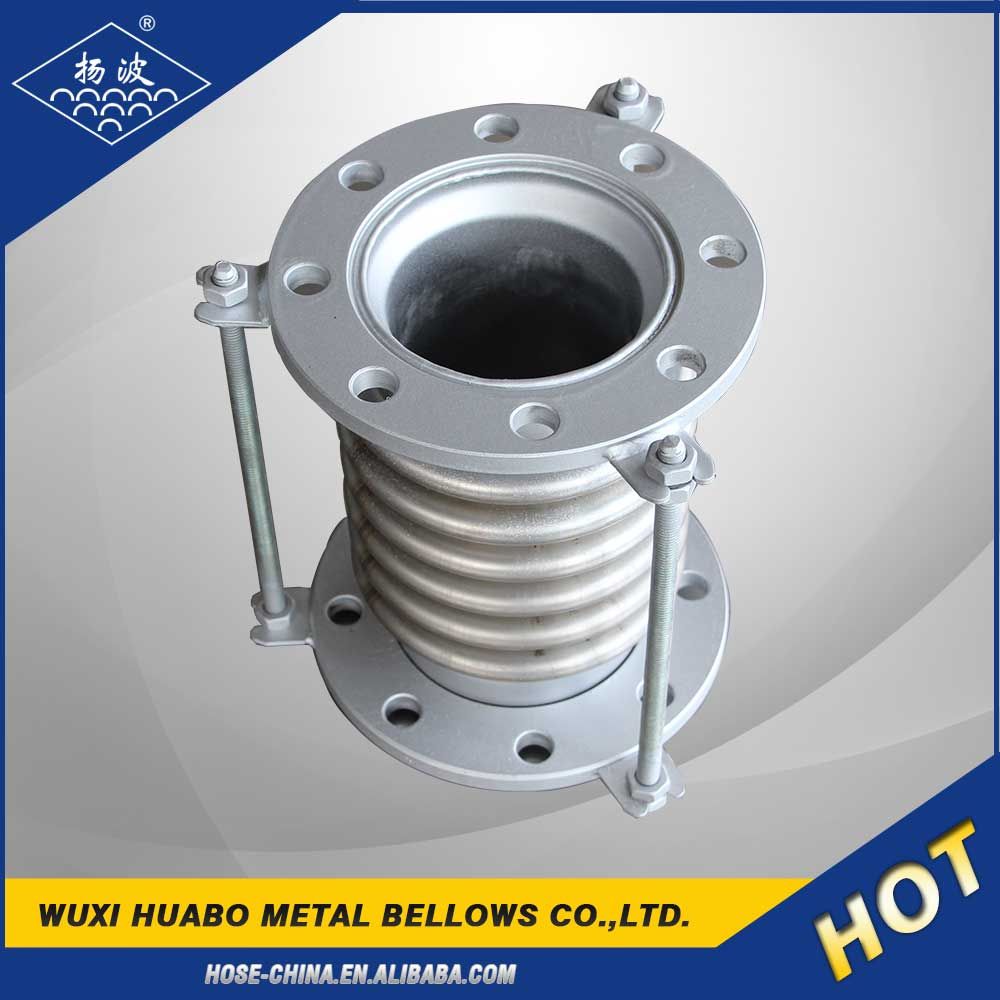

Metal bellows expansion joint with flange end
SIZE (IN) | TOTAL LENGTH | NEUTRAL LENGTH
(IN. ) | MAX TRAVEL (IN) | ANGULAR MISALIGN (DEG. ) | MAX. MISALIGN (IN. ) | WORKING PRESSURE (PSIG) AT TEMP. | FULL VAC. UP TO DEG. F. | WEIGHT (LBS) |
| @70ºF | @180ºF | @300ºF |
| 1 | 70mm | 1.375 | 0.25 | 10 | 0.126 | 190 | 146 | 88 | 350 | 4.0 |
| 1-1/2 | 70mm | 1.375 | 0.25 | 10 | 0.126 | 190 | 146 | 88 | 350 | 5.0 |
| 2 | 80mm | 1.625 | 0.25 | 10 | 0.126 | 190 | 146 | 88 | 350 | 8.0 |
| 3 | 100mm | 2.250 | 0.38 | 15 | 0.250 | 190 | 146 | 88 | 350 | 12.0 |
| 4 | 110mm | 2.625 | 0.50 | 15 | 0.250 | 190 | 146 | 88 | 350 | 18.0 |
| 5 | 120mm | 3.250 | 0.50 | 15 | 0.250 | 190 | 146 | 88 | 350 | 27.0 |
| 6 | 120mm | 3.750 | 0.50 | 12.5 | 0.250 | 190 | 146 | 88 | 350 | 31.0 |
| 8 | 160mm | 4.000 | 0.50 | 12.5 | 0.250 | 160 | 93 | 60 | 250 | 51.0 |
| 10 | 180mm | 5.250 | 0.50 | 10 | 0.250 | 150 | 85 | 52 | 200 | 63.0 |
| 12 | 200mm | 6.000 | 0.50 | 12.5 | 0.250 | 150 | 85 | 52 | N/A | 88. |
Features:
1. Expansion Joints to absorb large axial displacement between straight tube and support frame, and small horizontal displacement;
2. To resolve minor deviation because of piping connection and eliminate the pipeline residual stress;
3. All of our expansion joints are easy to clean and maintenance.
Delivery Details: Within 10-15 days after receiving payment for expansion joint
Packaging Details: Standard export wooden case for expansion joint
We are specialized in the manufacturing of all kinds of stainless steel expansion joints and metal bellows for over 20 years.
We have achieved ISO 9001 quality system certification and Manufacture License Of Special Equipment Peoples's Republic Of China.
Advanced technology, good quality, reasonable price and good after-sales service, let us become the industry's leading brand!
FAQ:
Q: How to pay express charges if order samples?
A: For those customer, who has DHL, FedEx, TNT, UPS account, can give us your account and we will send the samples by freight collected. For those customers, who do not have an express account, we will calculate the express freight charge for you and you can pay the freight charge directly to our company account. Then we will delivery the samples of expansion joints by prepaid.
Q: How to pay sample charges?
A: You can pay to pur company account. When we received the sample fee, we will arrange to make the samples for you, The prepare tiome for sample of expansion joints will be 3-7 days.
Q: How to order your items?
A: If you have the drawings of products like expansion joints, send them to us, we can production the items according to your drawings perfectly! If you not have drawings, please tell us the size, material, quantity, pressure, medium of the item you want, then our technical section will provide drawings for you to confirm the right specification. Finally make you satisfied!
We company specializes in producing stainless steel metal hoses and corrugated expansion joints. Metal hoses of DN6~800mm, corrugated expansion joint of DN15~7000mm. Various rectangular corrugated expansion joint and non-metal compensators available. Suitable for ships, oil, chemicals, railways, automobiles, construction, building materials, metallurgy, electricity, nuclear power, textile, rubber and paper productions etc.
Products with advanced design, rational structure, stable performance, flexible, and high anti-fatigue properties, the company's quality assurance system and improve the comprehensive means test has made the ISO9001 quality system certification and pressure pipe components production license.
