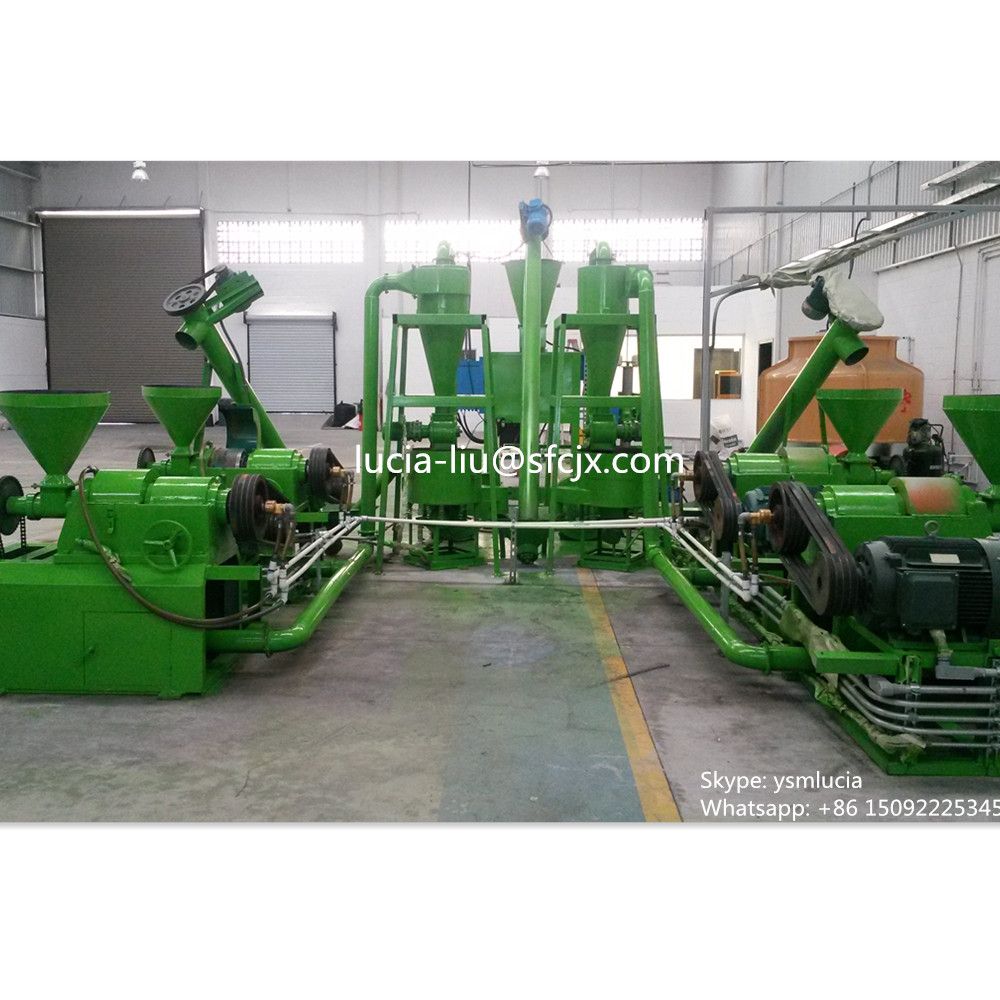

Fine Rubber Power Pulverizer, Recycling Line Machine, Rubber Grinder
For your tyre recycling machine, raw material is tyre scraps (tyre shaving), to produce 2mm and 0.6mm rubber powders in 1~1.5tons/h, as the client already had the crushing mill (600x800), so we give you the following solutions:
1st Step: Crushing the tyre scraps into 2mm rubber powders by using of the crushing mill (600x800).
2nd Step: Grinding the 2mm rubber powders into 0.6mm by using fine rubber powder pulverizer
1. Semi-automatic recycling system
Waste Tires-Ring Cutter-Press loop Machine-Strips Cutter-Blocks Cutter-Rubber Crushing Mill-Oscillating Screen, Conveyor Belt, Magnetic Plants-Fiber Separator(Rubber Granule Diameter between 1.7mm~0.55mm) -Fine Rubber Powder Pulverizer-Rubber Powder(Rubber Powder Diameter Between 0.55mm~0.12mm)
2. High automatic recycling system.
Waste Tires-Single Hook Debeader-Tire Cutter-Whole Tire Shredder-Rubber Crushing Mill-Oscillating Screen-Fiber Separator(Rubber Granules Diameter 1.7mm~0.55mm)-Fine Rubber Pulverizing Machine-Rubber Powder(Small Rubber Granules Diameter 0.55mm~0.12mm).
For the whole recycling recycling sytem, we can design a suitable system exactly according to your detailed requests.
| No. | Name | Model | Qty.
(Qty) | Motor Power (KW) |
| 1 | Single hook debeader | LSJ-1200 | 1 | 11 |
| 2 | Whole tyre cutter | QDJ-1200 | 1 | 5.5 |
| 3&4 | Whole tyre shredder
(with conveyor) | ZPS-900 | 1 | 61.5 |
| 5 | Double Rolls
Rubber Crusher | XKP560 | 1 | 75 |
| 6 | Big conveyor equipment | BCL-8 | 1 | 2 |
| 7 | Small conveyor equipment | BCL-3 | 1 | 1.1 |
| 8 | Big Magnet separator | BMS22 | 1 | 2.2 |
| 9 | Small Magnet separator | SMS-1 | 1 | 1.1 |
| 10 | Big Shaking screen | BSS-8 | 1 | 7.5 |
| 11 | Small Shaking screen | SSS-3 | 1 | 3 |
| 12 | Fiber separator | FS110 | 1 | 5.5 |
| 13 | Fine Rubber Powder Pulverizing Machine | XJFS-420 | 1 | 29.25 |
| 14. | Vibrating screen | | 1 | 0.75 |
Packaging Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases. FAQ 1. What does your factory do regarding quality control?We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment. 2. What's the machine quality guarantee?Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition. 3. Are you able to give installation and commissioning overseas?How long time will it take?Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days. 4. How can I trust you to deliver the right machine as I ordered?We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers. If you come to our factory, we can show the user around us. 5. How can we go to your side? We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport. Our Services ♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost. ♦ In the process of production, we will take photos and send to customers for their track the progress. ♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery. ♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing. ♦ We supply overseas engineer service and help to train your workers to operate the machine.
Qingdao Shun Cheong Machinery Co., Ltd. (Original China Qingdao first Rubber Machinery Factory) was founded in 1968, which is a professional manufacturer in rubber machine field of China with high-tech technology. We have ISO9001: 2008, CE1282 and SGS certification. Our customers spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc. Our company's major customers including: Michelin, Bridgestone Americas Tire Operations, LLC, Kumho, Cheng Shin Rubber Industry, United States Goodyear Tire & Rubber Company etc.
Reduce the production cost and supply high efficiency rubber machines are the target aim of our service. Our company is near from Qingdao steel factory and Qianwan port, which is largely lowering the logistics cost; Germany and United States' core talents and experienced engineers and outstanding technical teams have been introduced, constantly improving the R&D capability, with the advanced fabricating equipment to develop the world excellent rubber machine, satisfying the clients high requirements.
In order to supply better service for our customers, we also provide the conveyor belt production line, waste tire processing line, tire and other rubber products' producing on- site for customers to visit and consult.
1. Our company machines must pass inspection of 3-7 hours of load test operating before they leave the factory, thus saving customers' time and expense of equipment commissioning.
2. We provide one year's guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of the guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translation to you to solve equipment problems.
3. Our company establishes "CUSTOMER FILE" for sold equipment in the form of return visits regularly; Including equipment's maintenance, troubleshooting and customer feedback.
4. Complete after-sales service
