Fine Copper Wire Drawing Machine 24 Dies

Fine Copper Wire Drawing Machine 24 Dies
Price: US $ 6400-6800/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T

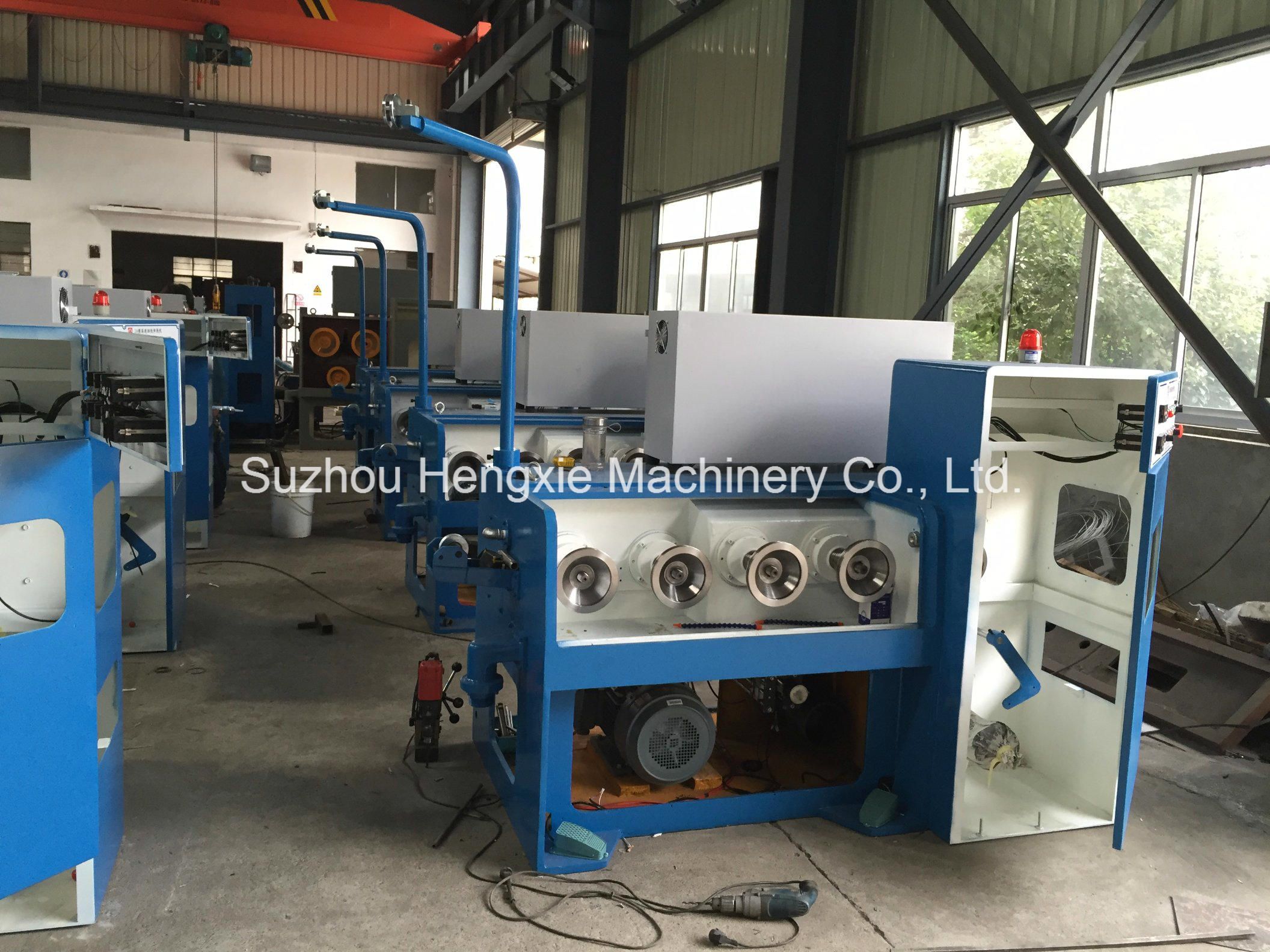

Fine copper wire drawing machine 24 dies
Product Description

Pictures about company

Name Quantity
1.Pay-off shelf1 set
2.HXE-24DW Fine copper wire drawing machine 1 set
3.Bobbin Unloading device1 set
4.Spare partsAs per List
5.Operation manual

Main Technical parameters
1.Inlet wire diameter: 0.6mm-1.2mm
2.Outlet wire diameter: 0.08mm-0.5mm
3.Speed: 2500mpm, Capacity: 0.2mm, 30kg/h; 0.3mm, 37kg/h; 0.4mm, 46kg/h; 0.5mm, 52kg/h.
4.Dies number: 24
5.Slip ratio (Area reduction) : 13%+ 8%
6.Wire drawing mode: horizontal-mode and 4 axes
7.Driver: by dual Inverters control, Brand: Inovance,Chinese famous brand, 15kw+3.7kw.
8.Main motor: 15KW AC 3 phase motor
9.Spooler motor: 3.7KW AC 3 phase motor
10.Motor brand: Wan Nan motor, China classical brand
11.Capstan: Ceramic plasma
12.Max capstan diameter: 242mm
13.Max fix speed capstan: 207mm
14.Machine structure: Cast iron
15.Reverse system: PID synchronous control spool
16.Transmission: Flat belts
17.Pay-off method: Over-head
18.Tension control: Weight balance by swing arm
19.Lubrication type: spray, Grade 2.5%-3%, Capacity 40L/min,
20.Bobbin size: 300mm, material steel, 17kg.
21.Take up: Shaft type

22.Bobbin capacity: 50-60kg/max
23.Brake: Magnetic brake

24.Power source: Customize
25.Machine dimension: L2550mm*W1600mm*H1590mm, Machine weight: 2500KG
Why choose us

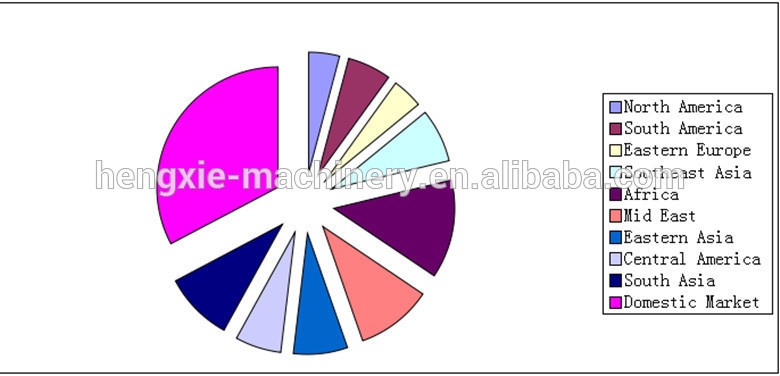

Our markets


 Brand of accessories
Inverter : Invoance
Motor :Wannan
Precision resistance: WDD military enterprise
Bearing :NSK
Low voltage equipment: France Schneider
6 month for electrical part
12 month for mechanical part
After-sell service
Pre-sale training:In order to guarantee the customers are able fully to operate the copper wire drawing machine , if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem

     Kindly please contact us to get more services and more information of copper wire drawing machine .

Looking forward to cooperating with you!

Prod Model: 24DW
After Service: Engineer Available to Overseas
Color: Blue / Customized
Popularity: Hot/on Sales
Size: 2550mm*1600mm*1590mm
Warranty: 1 Year
Main Motor: 15kw
Speed: 2500mpm
Voltage: 380V/50-60Hz
Payment Terms: T/T L/C
Brake: Magnetic Brake
Type: Horizontal Metal Drawing Machine
Usage: Rope Wire
Outlet Diameter: 0.08-0.5mm
Max.Inlet Wire Dia.: 0.6-1.2mm
Block Dia.: 242mm

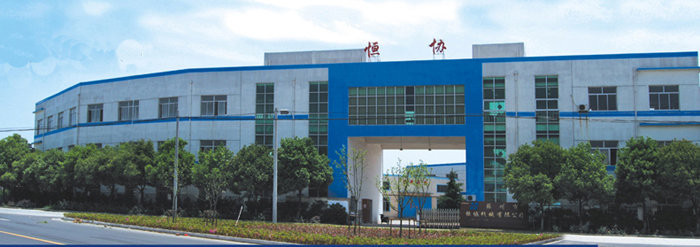

Suzhou Hengxie Machinery Co., Ltd. Locates in Yinghu Industrial Zone, Wangting town, Suzhou Hli-New District, near to G312 with a conveninet transportation and nice environment. It is a professional company which specializes in electronic cable, electromagnetic cable, electrical wire eat. It is at a leading position in this line because of the topping managing talent and advanced technics.

Hengxie has invested RMB ten Millons to introduce the Germany equipments and technics and developed the cable producing line by itself. This ensures the quality stable and capability superior. Hengxie has successfully set up a superior enterprise mode.

With the mange concept"Stable Quality, Mutual Development" Hengxie warmly welcome alll the friends to grant the changefor sincere cooperation and win the mutual benifit in the future.
