Home Toolbuy Products Fiber Optic Patch Cord/Patch Cable with SC, LC, ST, FC Connectors

Fiber Optic Patch Cord/Patch Cable with SC, LC, ST, FC Connectors

Fiber Optic Patch Cord/Patch Cable with SC, LC, ST, FC Connectors
Price: US $ 1.5/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union

Fiber optic patch cord

Product Description

Multimode SC-ST fiber optic patch cord
Specification:
1.Type: SC-ST
2.Polishing: PC (APC/UPC)
3.Insertion Loss: ≤0.2 dB
4.Return Loss: ≥50dB
5.Exchangeability: ≤0.2Db
6.Repeatability: ≤0.2dB/1000times
7.Operation Wavelenghth: 850nm,1310nm,1550nm
8.Operating Temperature: -30 °C ~ +75 °C
9.Storage Temperature: -40 °C ~ +85 °C
10.Cable OD: 3.0mm/2.0mm/0.9mm
11.Cable Material: OFNR,LDZH&Polarization maintaining
12.Mode: 50/125
13.Fiber Cable Type: PVC 3.0mm
14.Spec: single core , dual - core , the 4 core , 6 cores , 12 core . . . etc(according to your requests)
15 . the joint selection : FC,SC,ST,LC,MU,MTRJ,E-2000 and other
16. length : The length of patch cord is depend on user's requirements
Feature:
1.Low insertion loss and hight return loss.
2.Excellent repeatability and changeability
3.Simplex and duplex available.
4.With ceramic fettules.
5.PVC&LSNH cable option.
6.Optical performance 100% factory test.
Applications:
Local Area Networks (LANs) and Wide Area Networks (WANs)
Fiber Optic CATV, FTTH, FTTB, FTTP etc
Fiber Optic telecommunication systems
Transmission Mode (ATM)
Fiber Optic Backbone
Military Instrumentation
Company Information




Products

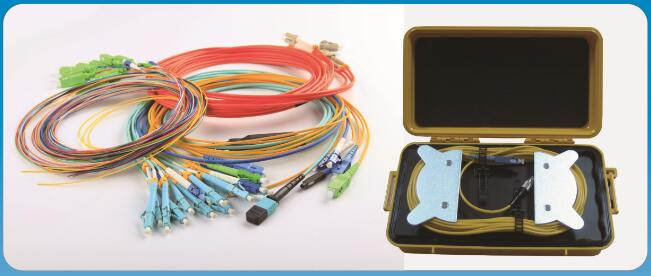

We manufacture Fiber Optic System products as follows:
Active & Passive Components
Passive components

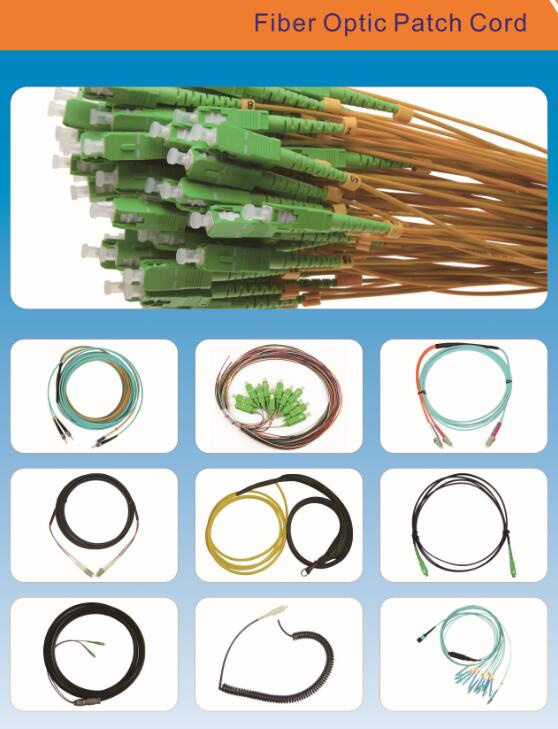

Patch cords
Pigtails
Splitter
Termination boxes
Patch panel/ODF

Active equipment
Fiber converters
SFP/GEBIC transceivers
Receivers




Packaging & Shipping




Why you choose us ?
1.Factory, OEM/ODM available
2.Steady quantities supply, Strict quality control
3.Excellent  Datolink or your own brand box/roller design and package
4.Stirictly conform to ISO, Rohs CE certificates
5.Long time experience at domestic and export market
Welcome you visit our factory !
Relying on good prestige, creditable quality, perfect service and reasonable price, our company win the confidence of customers. We sincerely welcome old and new customers home and abroad to visit our manufactory and bulid the long term business relationshiop with us !
FAQ :
1.Are you factory ?
Yes,we are factory ,our factory located in Shenzhen ,Longgang district .
2.What products your factory mainly produce ?
Our factory mainly produce  LC,SC,FC,ST Connector patch cord ,pigtail ,SFP transceiver module and other fiber optic components .
Datolink brand, OEM/OEM fiber optic patch cable manufacturer, factory in Shenzhen, Chi
Specifications
 Single modeMultimode
Insert Loss≤0.20dB≤0.25dB
Return Loss≥50 dB (PC)
≥55 dB (UPC)
≥65 dB (APC)
Durability<0.20 dB typical change, 1000 mating
Operating TemperatureFrom -40 to + 80°CFrom -40 to + 80°C
Ferrule Hole Sizes125.0+1/-0μm, Concentricity: ≤1.0μm125μm, Concentricity: 1≤3μm
 125.5+1/-0μm, Concentricity: ≤1.0μm127μm, Concentricity: 1≤3μm
 126.0+1/-0μm, Concentricity: ≤1.0μm128μm, Concentricity: 1≤3μm




Prod Model: PCTUSU2MM
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Insert Loss: < 0.20dB
Return Loss: > 50dB
Diameter: 2.0mm, 3.0mm
Application: Communication
Type: Multi-mode Fiber
Connection Structure: SC-ST
Certification: ISO9001
Brand: Datolink
Sheath Material: PVC or Lszh
Shenzhen Datolink Communication Technology Co., Ltd. Was founded in the January of 2007 by several engineers, who have had many years of working experience in fiber optical as well as in structured cabling industry. Datolink is a high technology oriented company with fiber optical products and structured wiring. We are dedicated to the design, manufacture and sales, meanwhile, we can provide customers with complete cabling solutions in installation and maintenance.

The company has a strict and comprehensive system of quality control and approved the standard ISO9001: 2000. Is well connected with raw materials providers and factories worldwidely, to offer customers a broad line of products with competitive prices and very soon time of delivery.

Our products have been exported to over 20 countries and regions such as Europe, Middle East, Southeast Asia, Latin America, etc. Datolink Ltd is committed to offer the partners high quality products and professional services, we look forward for the successful development with mutual-benefits, for casting the future of fiber optical and structured cabling!
