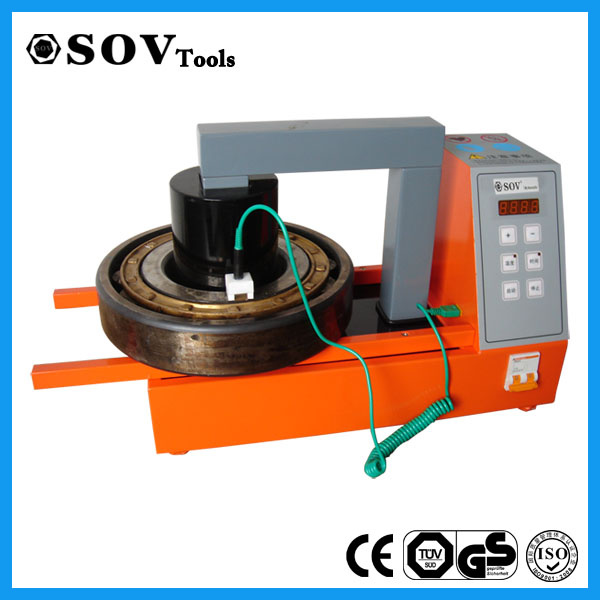

High Quality Induction Bearing Heater
Induction bearing heater is an advanced, fast and controllable heating tool, which is safer and more environmental way of heating.
Product Features
Power supply: 2.5-12 KVA
Voltage :220, 380V
Rated current: 10-32A
Min. inner diameter of workpiece: 15-60m
Max. outside diameter of workpiece: 220-1020mm
Max. width of workpiece: 95-380mm
Stainless steel induction heater
Bearing heater/induction heater device
1. Improve assembly quality, even heating, high precision, keep surface harness constant;
2. Improve work efficiency, quick heating speed, reduce works strength, improve assembly progress, reach to the aim of civilized production;
3. Rational and advanced in structure, easy, safe, reliable to operate with fire danger;
4. Save energy sources, reduce cost, improve profit, saving 100% oil compared with oil induction heating, save 60% oil compared with electric furnace;
5. After stopping heating, ZBJ series induction heater will automatically demagnetize below 0.8mt, which conforms to ZJS-004 standard. So it is the best induction heater equipment for civilized production, high-efficiency production and safe production.
Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.
Product Function
Electromagnetic Induction
Digital Display
Sound Remind
Error Warning
Heat Preservation
Over-load protection
Packaging Details
1. Outside packaging: standard export wooden packing;
2. Inner packaging: stretch Film;
3. Customized packaging acceptable.
Shipping
1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: by sea transportation. Goods will arrive in 30~45 days, according to the diatance.
Product Application
Our products are widely used all over the world, especially in Papermaking, Metallurgy, Petrification, Bridge, Construction, Electricity, Shipping, etc.
Our Service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.
Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.
Technical Parameters:
Model | SV24T10S | SV24T15S | SV24T20S | SV24T25S |
Power supply (KVA) | 2.5 | 3.6 | 10 | 12 |
Rated Voltage (V) | 220 | 22/380 | 380 | 380 |
Rated Current (A) | 10 | 16 | 25 | 32 |
Frequency (Hz) | 50 | 50 | 50 | 50 |
Rocker Arm Design | -- | -- | √ | √ |
Magnetic Section (mm) | 40*40 | 45*45 | 65*65 | 85*85 |
Max. Weight of Workpiece (kg) | 15 | 50 | 150 | 600 |
Min. Inner Diameter of Workpiece (mm) | 15 | 20 | 45 | 60 |
Max. Outside Diameter of Workpiece (mm) | 220 | 480 | 720 | 1020 |
Max. Width of Workpiece (mm) | 95 | 175 | 200 | 380 |
Temperature Control | √ | √ | √ | √ |
Temperature Range (ºC) | 40-250 | 40-250 | 40-250 | 40-250 |
Magnetic Temperature Feeler | √ | √ | √ | √ |
Digital display | √ | √ | √ | √ |
Time Setting | √ | √ | √ | √ |
Longest Time(minute) | 0-99 | 0-99 | 0-99 | 0-99 |
Sound Remind | √ | √ | √ | √ |
Error Warning | √ | √ | √ | √ |
Automatic Heat Preservation | √ | √ | √ | √ |
Demagnetization | Manual/Auto | Manual/Auto | Manual/Auto | Manual/Auto |
Heating Rod | 10, 14, 20, 30, 40 | 14, 20, 30, 45 | 30, 40, 50, 65 | 40, 60, 85 |
Extending Rod | Customized | Customized | Customized | Customized |
Warranty(Year) | 1 | 1 | 1 | 1 |
Dimension (mm) | 260*240*260 | 510*300*290 | 675*520*580 | 1600*850*1250 |
Weight(kg) | 15 | 35 | 84 | 250 |
