Factory Direct Supply Crawler Anchor Drilling Rig Machine for Sale

Factory Direct Supply Crawler Anchor Drilling Rig Machine for Sale
Price: US $ 10200-11700/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Crawler Anchor Drilling Rig Machine for Sale

Applications



Mainly applicable to the pit support in the city and control of building displacement, geological disaster management and other construction.



Parameters

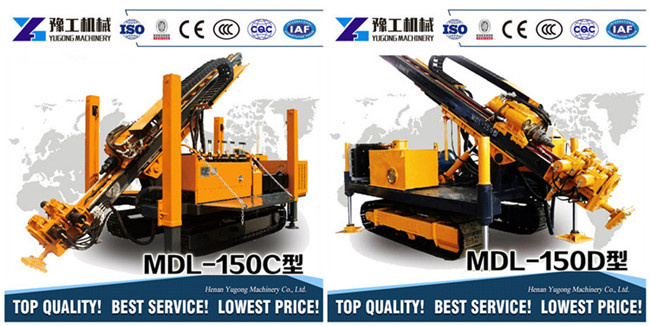

ModelMDL-150CMDL-150D
Main Parameters
Drilling Diameter (mm)Φ150-250
Drilling Depth (m)130-170
Final hole diameter (mm)75
Drill pipe diameter / casing diameter (mm)Φ73,Φ89,Φ102,Φ114
Drilling angle0-90°
Rotator output speed (r/min)10/20/30/35/40/60/65/70/85/130/170
Rotator output torque (N.m)7500
Rotator travel (mm)3400
Rotor lift force (KN)70
Rotator lift speed (m/min)0-5 adjustable /7/23/30
Rotor pressure (KN)36
Rotator pressure rate 0-10 adjustable (m/min)0-10 adjustable /14/46/59
Walking parameters
Walking modeCrawler walking
Climbing angle25°
Crawler Grounding Pressure (Kpa)36
Walking speed (km/h)20
Input power
Input powerDiesel 96KwElectric 55+18.5kw
Dimensions (mm)5400x2100x20005400x2100x2000
Weight (kg)65006000

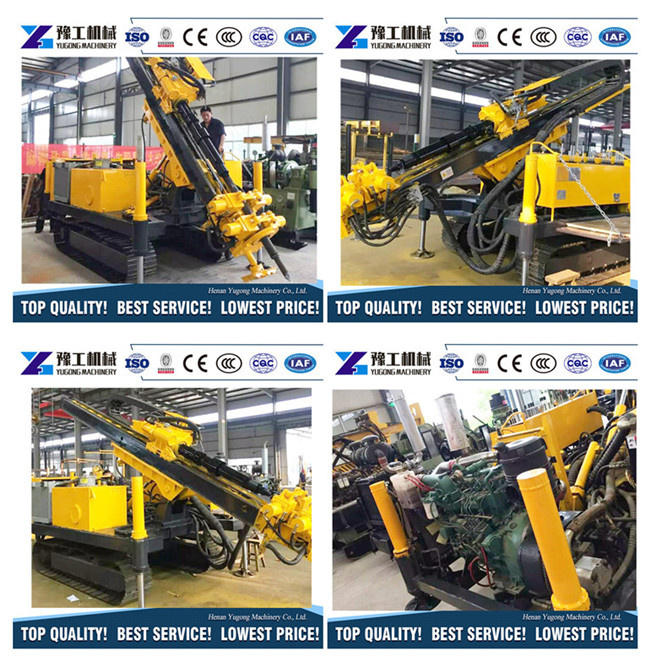

Product Display


Main features

1.  Full hydraulic power head.
2.  Widely used in Tunnel construction, water conservancy, railway and road side slope.
3.  For anchoring hole, anchor rod.
4.  Convenient adjust mechanism for upward and downward. The hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from  different angles.
5.  Power components:3-phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig.
6.  Centralized control bench: The control bench far from drilling rig can protect the safety of operator. The centralized control metal stick makes the controlling of drilling rig easy and convenience.
7.  Compact hydraulic station:Radiator can reduce the hydraulic oil temperature effectively to keep hydraulic oil temperature under suitable working status.  The electric control box can protect the electric motor to operate safely.


Packing and Shipping



Company and Contact Information

Henan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years.We are committed to researching and developing all kinds of mineral equipment, construction machinery,  prestressed machinery, metallurgy machinery etc.

Our company has more than 500 employees,including more than 30 senior technical staff and 30 international sales persons.We can supply high quality and professional services.

Henan Yugong Machinery Co., Ltd aims to have top quality, top reputation and top service. "Quality First, Reputation First, Be Innovative, Be Excellent" has always been our purpose. We warmly welcome your corporation from all fields and build great future for us all.

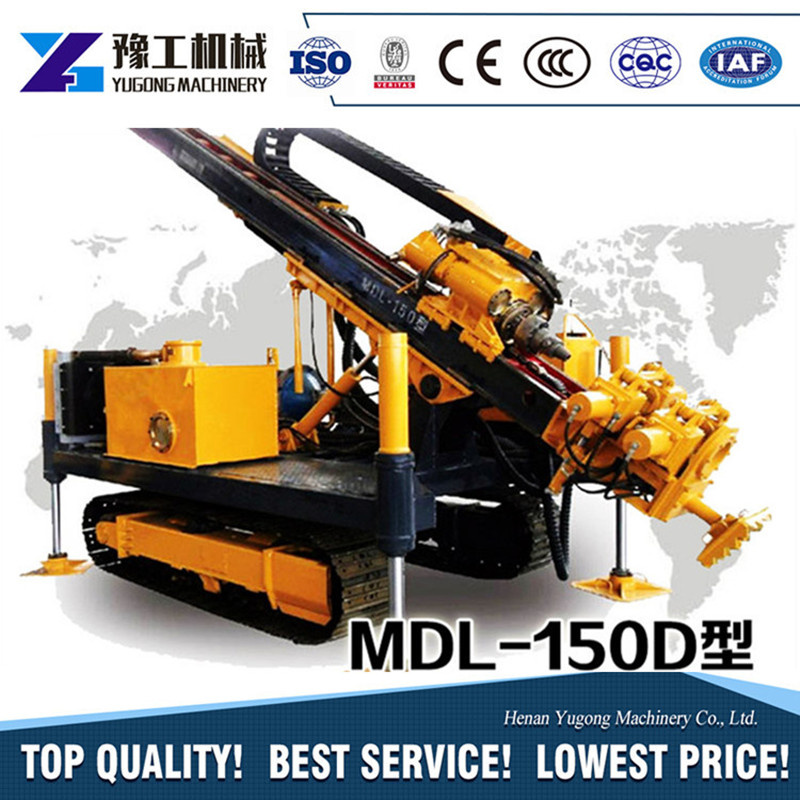

Prod Model: MDL-150C, MDL-150D
Product Name: Crawler Anchor Drilling Rig Machine
Model: Mdl-150c,Mdl-150d
Drilling Diameter: 150-250mm
Drilling Depth: 130-170m
Rotator Output Torque: 7500n.M
Rotator Travel: 3400mm
Rotor Lift Force: 70kn
Rotor Pressure: 36kn
Input Power: Diesel 96kw,Electric 55+18.5kw
Weight: 6500,6000kg
Henan Yugong Machinery Co., Ltd., located in Zhengzhou City, is specialized in machinery in China over 20 years. Our company focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on. Our products include equipments of different fields, highways, bridges, tunnels, culverts of metros, mining, coal mines and non-coal mines. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Our factory have 20 years of manufacturing all kinds of mineral equipment, construction machinery, prestressed machinery, metallurgy machinery etc. There are more than 500 employees in our company, including more than 30 senior technical staff and 30 international sales persons. You can be rest assured that All the products with high quality meet international standards and have won a good reputation at home and abroad.

We are warmly looking forward your long-term friendly cooperation, please kindly contact us any time you need these machines.
