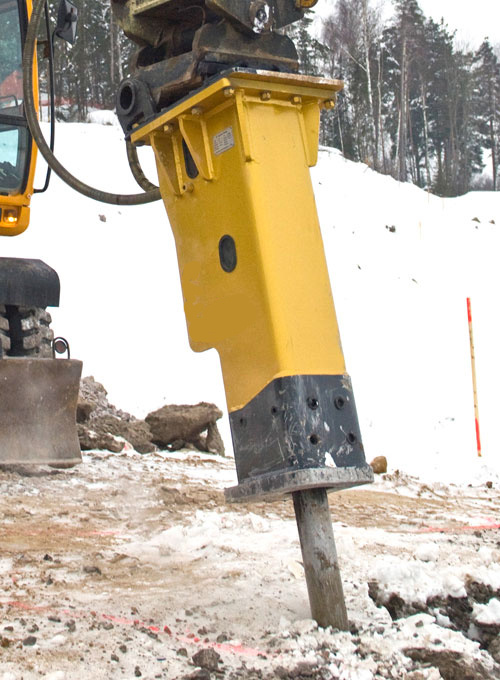

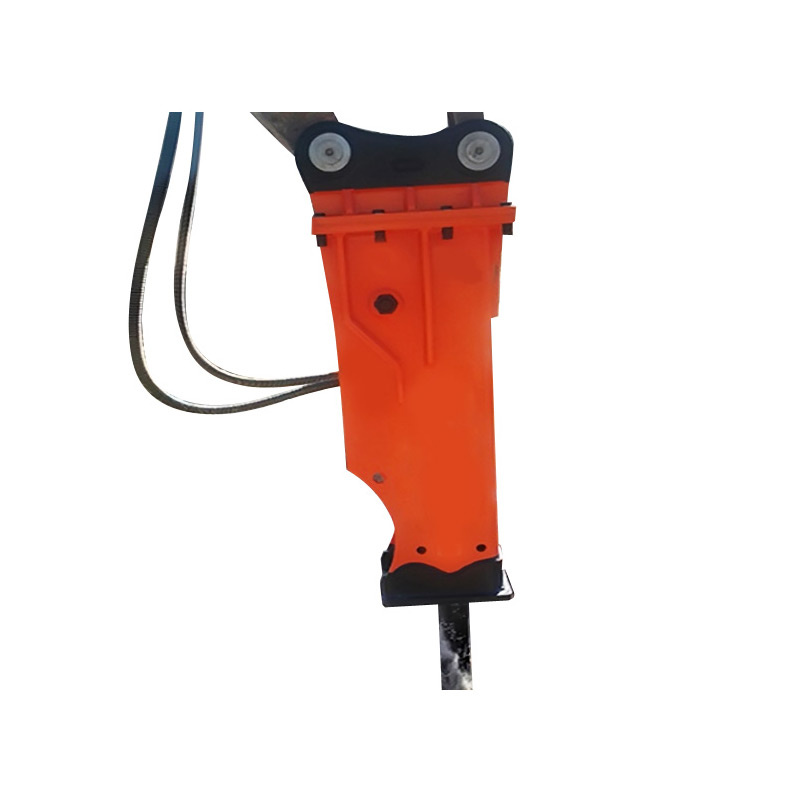

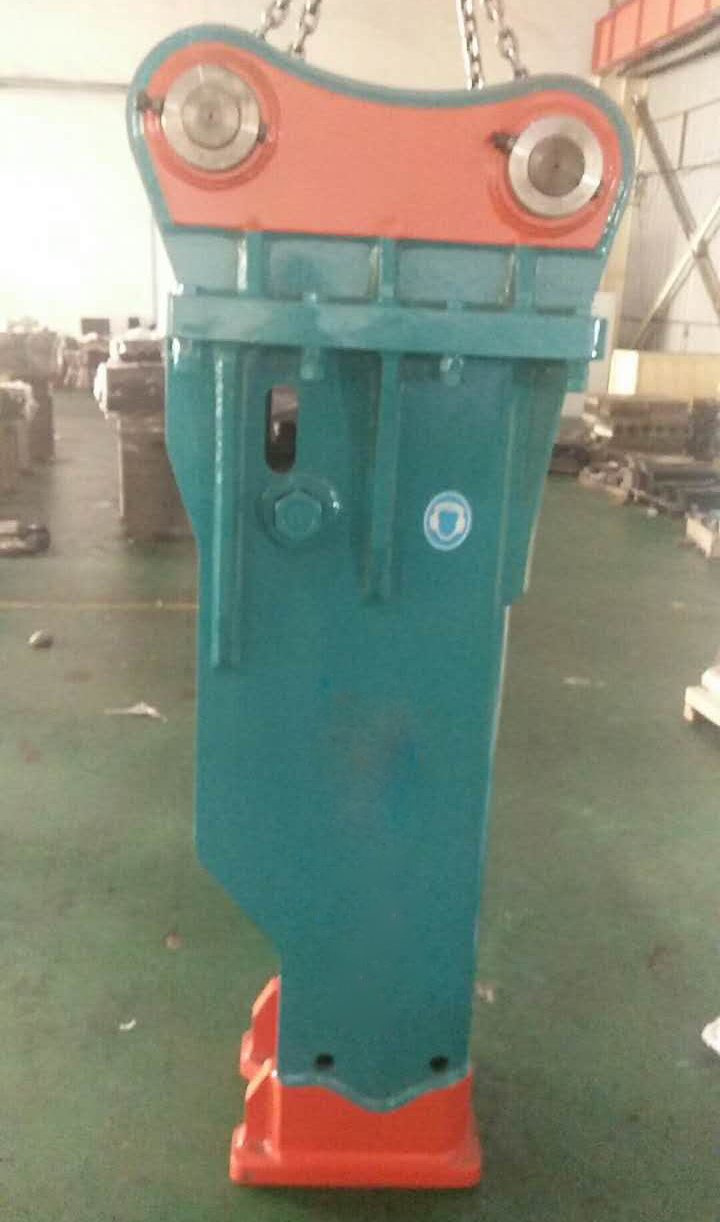

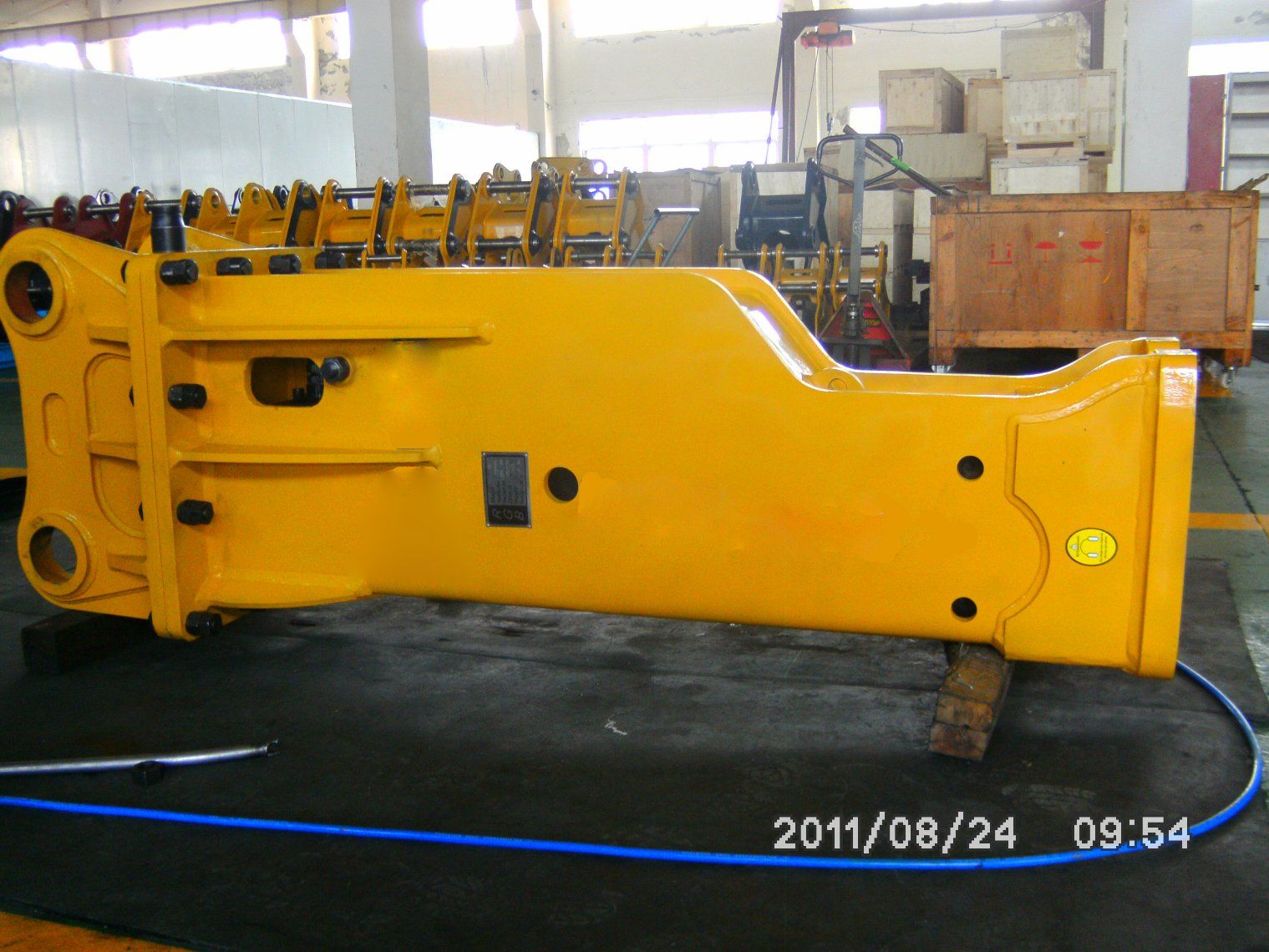

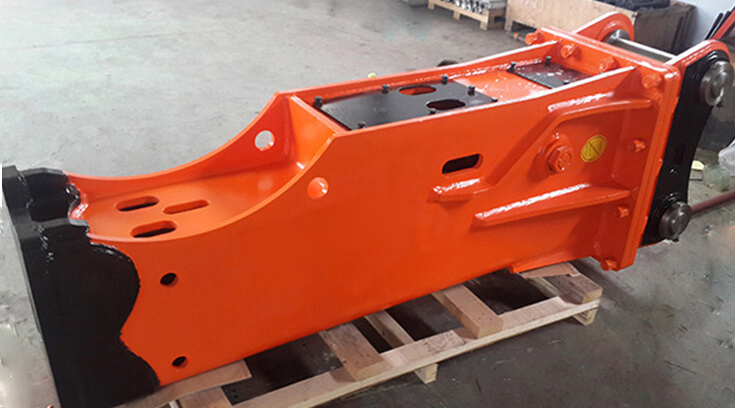

Excavator Attachments Silent Box Type Hydraulic Impact Breaking Hammer

Excavator Attachments Silent Box Type Hydraulic Impact Breaking Hammer
Price: US $ 1200-1999/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Hydraulic Impact Breaking Hammer

LUTHB-B-45
Cylinder Weight62kg
Total Weight128kg
Overall Length1279mm
Required Oil Flow20-40L/min
Working Pressure90-120Kg/cm2
Impact Rate700-1200b.p.m
Chisel DiameterD45mm
Application Excavator0.8-1.5ton

UTHB-B-53
Cylinder Weight80kg
Total Weight170kg
Overall Length1446mm
Required Oil Flow20-50L/min
Working Pressure90-120Kg/cm2
Impact Rate600-1100b.p.m
Chisel DiameterD53mm
Application Excavator2.5-4.5ton

UTHB-B-70
Cylinder Weight146kg
Total Weight343kg
Overall Length1652mm
Required Oil Flow40-70L/min
Working Pressure110-140Kg/cm2
Impact Rate500-900b.p.m
Chisel DiameterD70mm
Application Excavator4-7ton

UTHB-B-75
Cylinder Weight207kg
Total Weight477kg
Overall Length1862mm
Required Oil Flow50-90L/min
Working Pressure120-150Kg/cm2
Impact Rate400-800b.p.m
Chisel DiameterD75mm
Application Excavator6-9ton

UTHB-B-85
Cylinder Weight263kg
Total Weight658kg
Overall Length2140mm
Required Oil Flow60-100L/min
Working Pressure130-160Kg/cm2
Impact Rate400-800b.p.m
Chisel DiameterD85mm
Application Excavator7-14ton

UTHB-B-100
Cylinder Weight444kg
Total Weight935kg
Overall Length2310mm
Required Oil Flow80-110L/min
Working Pressure150-170Kg/cm2
Impact Rate350-700b.p.m
Chisel DiameterD100mm
Application Excavator11-16ton









Dear All,Welcome to visit our factory!

Prod Model: UT
Warranty: 1 Year
OEM: Yes
ODM: Yes
Applicaple: Excavator
Color: Yellow, Red, Blue,Green,White,Black
Load Capacity: Customized
Certification: CCC
Condition: New
Type: Breaking Hammer
Shandong UT Trailer Parts Co., Ltd. Is an integrated company of production/industry and trade. It was established in the year 2001 and covers an area of about 30, 000 square meters. Our headquarter is located in Jinan City, Shandong Province.

We have always been engaged in the production and sale of trailer and semi-trailer accessories. We started from the production of axles and suspensions. With more than 10 years of development, we constantly enrich the production line, expand the production workshop, employ domestic and foreign outstanding engineers, we become one professional and comprehensive manufacturer of axle, suspension, landing leg, turntable, fifth wheel, king pin and other trailer parts

We have strong technical force with more than 10 senior engineers, more than 30 intermediate engineers. We cooperate with domestic well-known universities and set up our own production technology research and development centers. From the year 2003, we passed ISO9001 quality management system, ISO14001 environmental management system and GB / T28001 occupational health system. Our production and management is operated with the above three system strictly.

Our sales network has covered many cities of China and develops at least one dealed in each province. At the same time UT brand trailer accessories have been exported to more than 30 countries and regions located in Middle East, Southeast Asia, Europe, Central and South America
