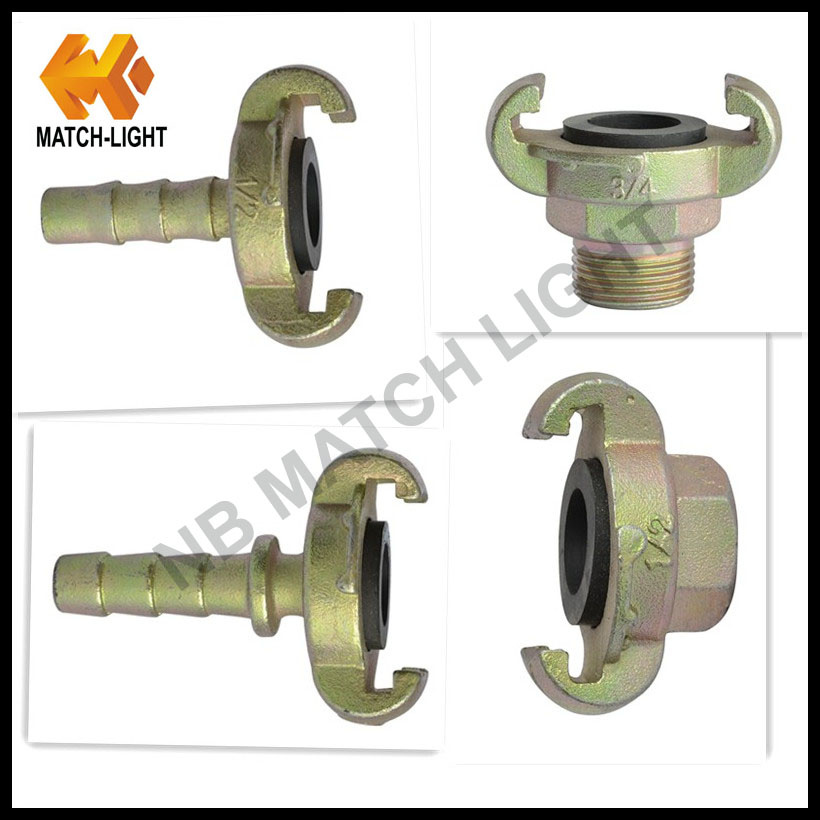

European Type Chicago Style Universal Air Hose Coupling
Specification:Brand Name:NBML Air hose coupling
Specification Met:A-A-59553Material: Carbon Steel---ZN PLATEDItem Shape:Coupling
Maximum Pressure:150PSIStyle Name:Threaded BSPSize: 1/4" 3/8" 1/2" 3/4" 1" | Hose End | Gaskets are N.B.R |
| Size | Carbon Steel Part Number | Brass Part Number | Stainless Steel Part Number |
| 1/4" | H025 CS | H025 BR | H025 SS |
| 3/8" | H038 CS | H038 BR | H038 SS |
| 1/2" | H050 CS | H050 BR | H050 SS |
| 3/4" | H075 CS | H075 BR | H075 SS |
| 1" | H100 CS | H100 BR | H100 SS |
| Female N.P.T Ends | | Gaskets are N.B.R |
| Size | Carbon Steel Part Number | Brass Part Number | Stainless Steel Part Number |
| 1/4" | F025 CS | F025 BR | F025 SS |
| 3/8" | F038 CS | F038 BR | F038 SS |
| 1/2" | F050 CS | F050 BR | F050 SS |
| 3/4" | F075 CS | F075 BR | F075 SS |
| 1" | F100 CS | F100 BR | F100 S |
| Female N.P.T End with Four Lug | | Gaskets are N.B.R |
| Size | Carbon Steel Part Number | Brass Part Number | Stainless Steel Part Number |
| 1-1/4" | F125 CS | F125 BR | F125 SS |
| 1-1/2" | F150 CS | F150 BR | F150 SS |
| 2" | F200 CS | F200 BR | F200 SS |
| Hose End with Four Lug | | | Gaskets are N.B.R |
| Size | Carbon Steel Part Number | Brass Part Number | Stainless Steel Part Number |
| 1-1/4" | H125 CS | H125 BR | H125 SS |
| 1-1/2" | H150 CS | H150 BR | H150 SS |
| 2" | H200 CS | H200 BR | H200 SS |
Technic:
Air Hose Couplings are recommended for use on virtually any type of pneumatic equipment. The maximum recommended working pressure for universal coupling is 150 psi at ambient temperature 70 degrees F. With the universal head, any fittings within that range can be connected regardless of hose shank or thread size. Unexpected twisting of hose assemblies can occur during use. To eliminate the possibility of accidentally disconnecting, each Air King comes with a Safety Clip. This clip is designed to be inserted into the locking holes on the fittings. The use of a Safety Clip assures the users that the fittings have been properly connected. Meets pressure requirements as specified in A-A-59553 commercial item description superseding Mil Spec.WWC-633D. Rubber seal. Made of iron. 3/8" Hex size. 7/8" Threaded part length. 2-1/2" Head size. 2-13/16" Length. 3/4" Size. 3/4" NPT male.
Ningbo Match-Light Co., Ltd.
1 Our Story:
Ningbo Match-Light Co., Ltd. is located in Jiangdong, Ningbo, China where is one of the well- known four biggest ports in China, and the transport facilities are very convenient to all over the world.
12-year 's experience in exporting and thriving to meet your various demands and standards. OEM and ODM are available at Match-Light China.
2. Our Products:
Camlock Coupling, Guillemin Coupling, Universal Coupling(Air Hose Couplings), Fire Hose Coupling, Clamps, Valves, Bauer Coupling, hydraulic Couplings, hoses and so on.
3. Why US:
1)High Quality:
We have professional QC team, who could guarantee stable quality for OEM production service.
2)Good Service
We have experienced salesmen to work for you. The aim of our company is quick reply, good and correct service for all of you.
3)Reasonable Price:
We always insist on supplying customers good quality with rock -bottom price goods.
Match-Light is not the cheapest coupling supplier, however we are the most reasonable. We expect more than price.
4)Prompt After-Sale Service:
In case of any performance failure in normal use of our product, we are always here at your service and trying our best to solve the problem.
4. Our vision:
Better Couplings, Better Life.
