| Price: | US $ 50/Piece |
|---|---|
| Min Order: | 100/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

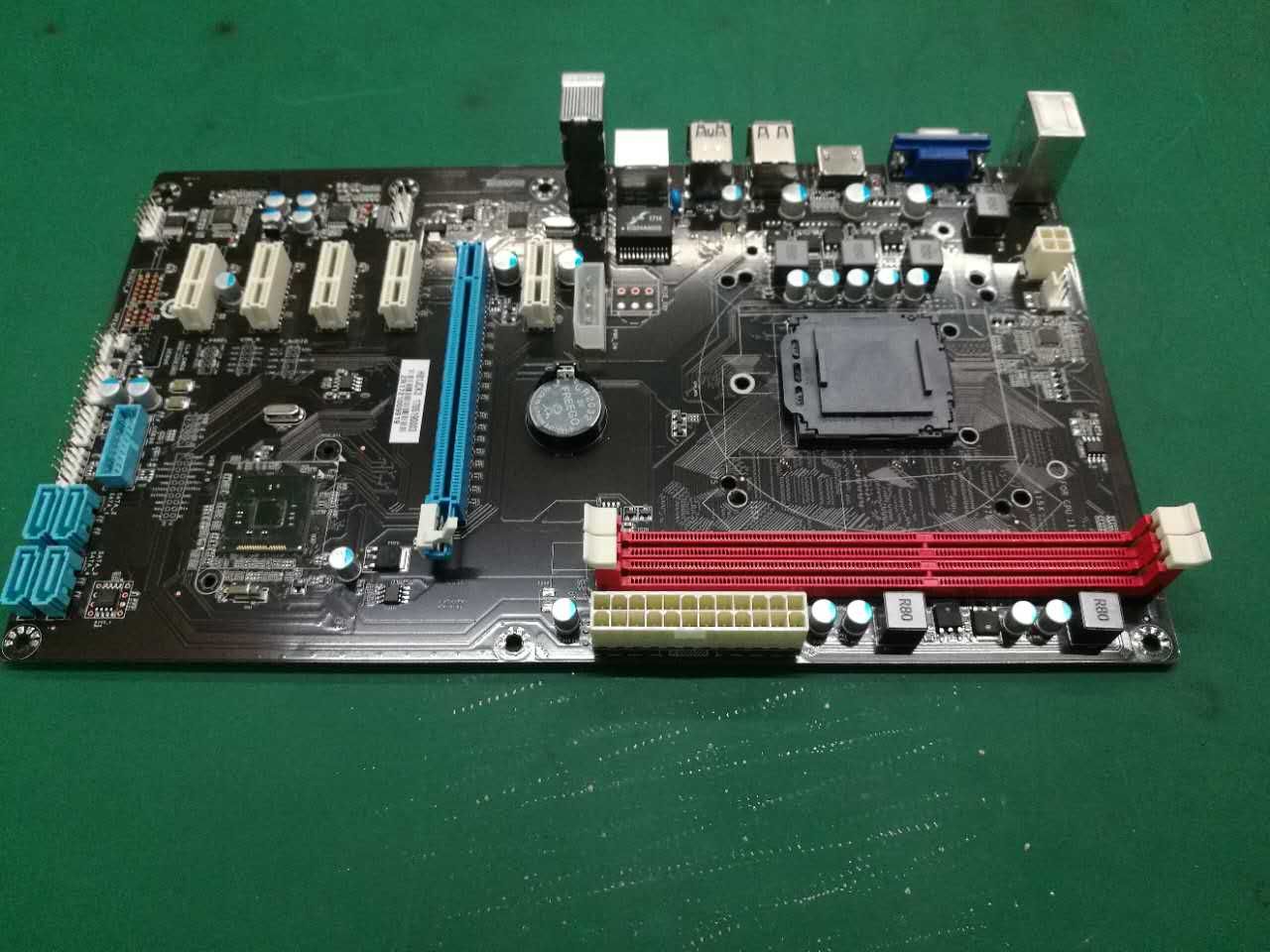

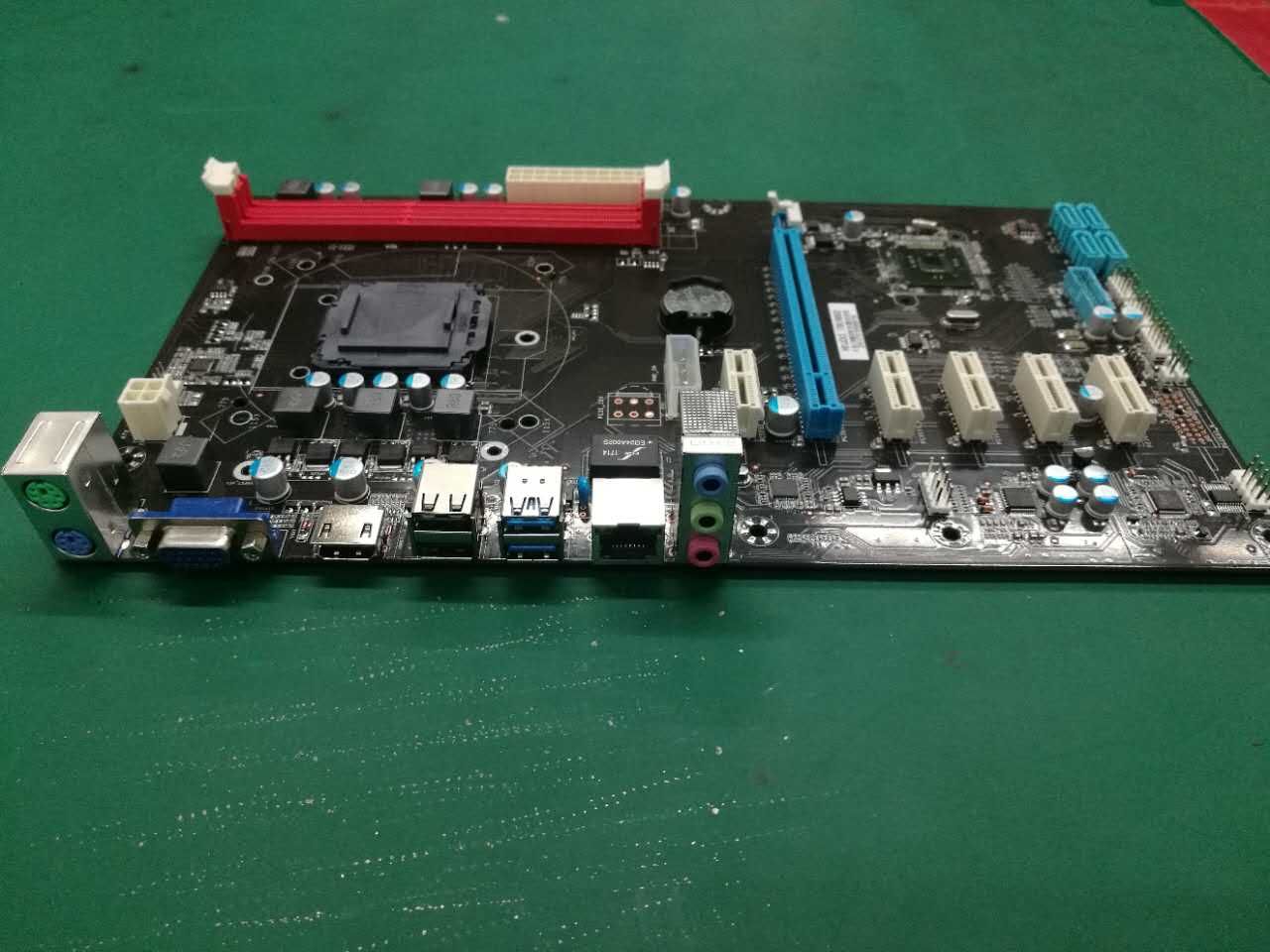

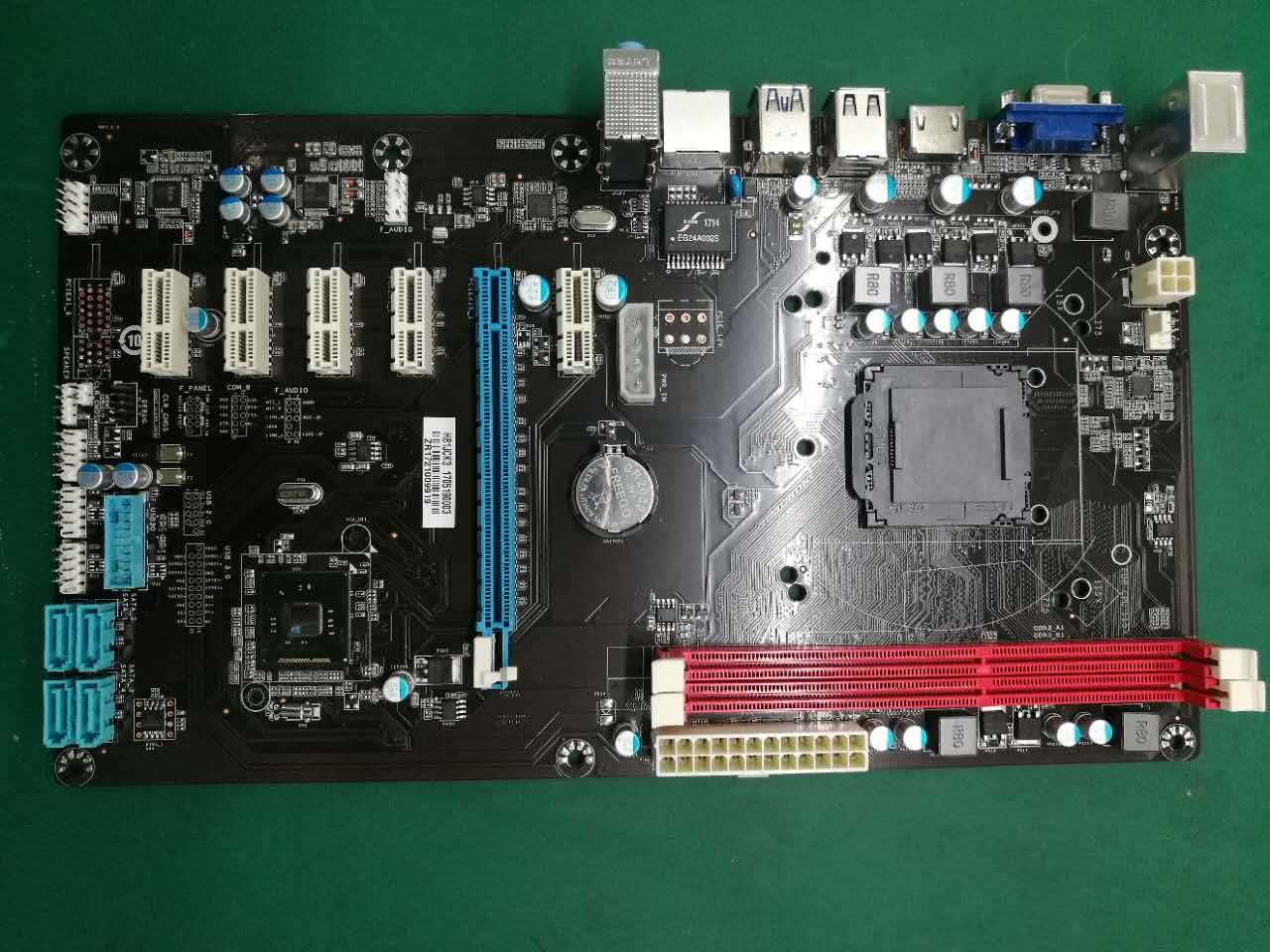

Esonic Intel B85-BTC-king for Bitcoin Miner , 7*PCIE Slots ,
Mining motherboard
| CPU(Processor) |
| Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package. L3 cache varies with CPU. |
| Chipset |
| Intel® H81 H87 B85 Q85 Q87 Express Chipset |
| Memory |
| 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory Support for DDR3 1600/1333 MHz memory modules |
| Slots |
| - 1 * PCI Express x16 Slot |
| - 6 * PCI Express x1 Slot |
| Storage |
| - 4* Serial ATA 2.0 devices |
| Internal I/O Connectors |
| - 1 * 24-pin ATX Power Connetor |
| - 1 * 4-pin ATX 12V Power Connetor |
| - 2 * USB connector support additional 4 USB ports |
| - 1 * LPC_DEBUG connector |
| - 1 * Front panel audio connector |
| - 1 * System Panel connector |
| Back Panel I/O Ports |
| - 1 * PS/2 Mouse/Keyboard |
| - 1 * VGA |
| - 1 * HDMI |
| - 4 * USB 3.0 / 2.0 |
| - 1 * RJ45(LAN) Port Gigabit lan |
| - 1 * 3 Audio jacks |
| BIOS |
| LAN |
| Realtek® GbE LAN chip (10/100/1000 Mbit) |
| Audio |
| Chip integrated by Realtek ALC661, Supports 5.1-channel audio-out |
| Form Factor |
| - Micro ATX - 320*168 mm |
| Prod Model: | B85-BTC-king |
|---|---|
| Integrated Graphics: | Integrated Graphics |
| Main Chipset: | Intel |
| Maximum Memory Capacity: | 16G |
| Structure: | ATX |
| Memory: | DDR3 |
| SATA Interface: | SATA3.0 |
| Printed Circuit Board: | Four Layers |
| Main Board Structure: | Integrated |
| Audio Effects: | HiFi |
| CPU Socket: | 1151 |
