| Price: | US $ 100-5000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

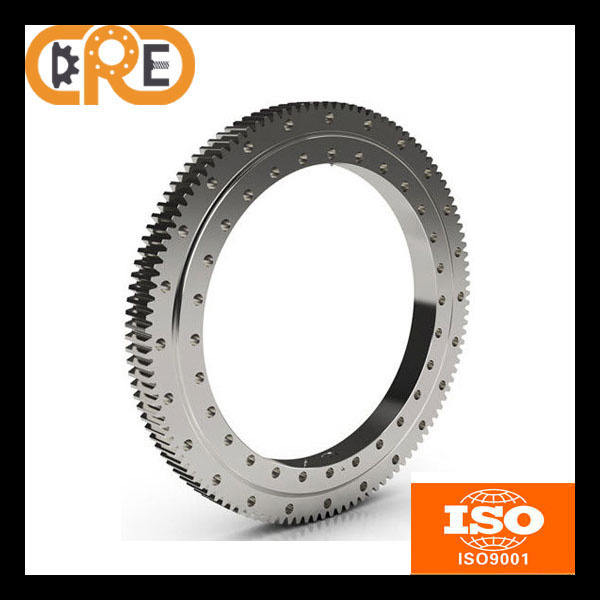

The single-row four point contact ball slewing ring is composed of 2 seat-rings.It features compact in design,and light in weight.The balls contact with the circular race at four points,via which the axial force,radial force and resultant moment may be born simultaneously.It may be used for slewing conveyers,welding arm and positioner,light,medium duty cranes,excavators and other engineering machines.

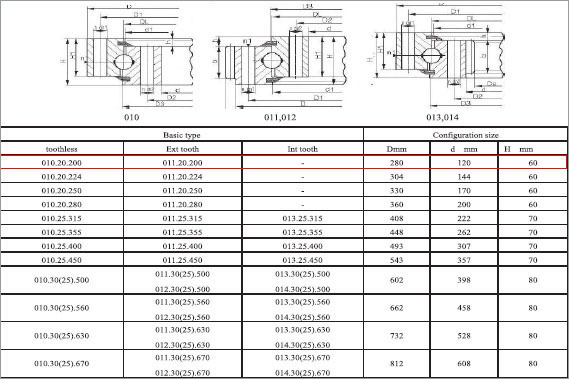

DRE Slewing Bearings Structure
Single row four point contact bll bearing is composed of two seatings. This type slewing bearing/slewing ring bearing features compact in design,light in weight, the balls contact with the circular raceway at four moment may be simultaneously. We provide many types of bearings.
Process Flow
Some factory photos to make you know more about us.
Know More About Our Company
Brief Introduction
Our company is establisted in 1998.We supplied excellent product and service to every user.We have gained ISO9001 certificate for our control of quality. We are specialized in slewing bearing, slew drive, gears and other medium and large size bearing.We can provide our customerss with exact, suitable, economic products also the technical services.Our company website address is www.dlrtr.com.
| Prod Model: | 010, 011, 012, 013, 014 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: | Internal Gear, External Gear and Nongeared |
| Bore Size: | 80-5000mm |
| Outside Diameter: | 100-5000mm |
| Warranty: | 12 Months |
| Seals Type: | NBR |
| Normalizing Hardness: | 206hb-262hb |
| Quench&Temper Hardness: | 229hb-269hb |
| Recaway Hardness: | HRC 55-62 |
| Quenched Teeth Hardness: | HRC 55+-5 |
| Rolling Element: | Ball |
| Rolling Body: | Ball Bearings |
| The Number Of Rows: | Single |
| Outer Dimension: | Small and Medium-Sized (',60-115mm) |
| Load Direction: | Thrust Bearing |
| Separated: | Unseparated |
| Material: | Manganese, Chrome Molybdenum |
