| Price: | US $ 3000-5000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union,Money Gram |
1. Adoping MOSFGT and IGBT inverting device, tracking frequency automatically
2. High frequency, heated quickly, its power consumption is only 20%~30% of eletronic tube induction heating machine and other heating style.
3. Security and reliability, the equipments have the secure voltage and it's secure to operate
4. Manual, automatic regulating automatically, it can protect itself from over voltage, over current, lack of water, phase fail, over hot, etc
5. It has no open-fire, noise and pollution, be suit for the environmental protection and fire, improve the image of the company
6. Recommend usage: Weld, forging, hot cooperate, melting, quenching, anneat etc
| Model | JJ-GP20X | JJ-GP25X | JJ-GP30X | JJ-GP35X | JJ-GP40X | JJ-GP50X | JJ-GP60X | JJ-GP80X |
| Input power desire | Single phase 220V 50/60HZ | 3 phase 380V 50/60HZ | 3 phase 380V 50/60HZ | 3 phase 380V 50/60HZ | 3 phase 380V 50/60HZ | 3 phase 380V 50/60HZ | 3 phase 380V 50/60HZ | 3 phase 380V 50/60HZ |
| Oscillate power max | 20KW | 25KW | 30KW | 35KW | 40KW | 50KW | 60KW | 80KW |
| Actual power | 5KW | 8KW | 10KW | 15KW | 20KW | 22KW | 45KW | 70KW |
| Max input current | 30-40A | 25A | 30A | 35A | 40A | 50A | 70A | 130A |
| Oscillate frequency | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ | 30-100KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min | >0.2MPa 2-6L/Min | >0.2MPa 2-6L/Min | >0.2MPa 2-6L/Min | >0.2MPa 2-6L/Min | >0.2MPa 2-6L/Min | 0.3Mpa≥6L/MIN | 0.3Mpa≥6L/MIN |
| Duty cycle | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C | 100% 40°C |
| Dimensions(L*W*H) | 45X19.5X40CM | 50X23X44.5CM | 55X24X43.5CM | 50X23X44.5CM | 55.5X26.5X46.5CM | 55.5X26.5X46.5CM | 63.5X31X62.5CM | 63.5X31X62.5CM |
| Net weight | 22KG | 27.5KG | 33kg | 20.2/19.4KG | 27.6/26.7KG | 29/31KG | 42.8/37.3KG | 49.4/50KG |
| Cable length | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) | 2-6(Meters) |

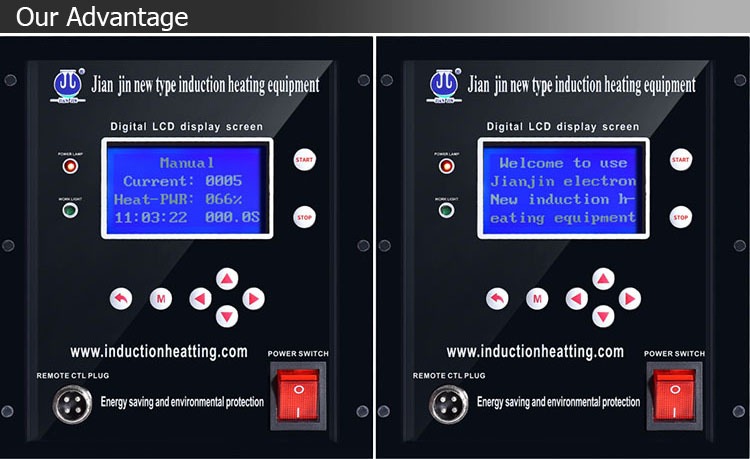

Our front panel use new digital LCD display have advantage as follows:
1.it has manual mode
2.it has automatic mode
3.it has clock
4.it has timing function(with millisecond)
5.it has count function
6.it is more convenient to adjust and use.
7.it can be accurate to microseconds

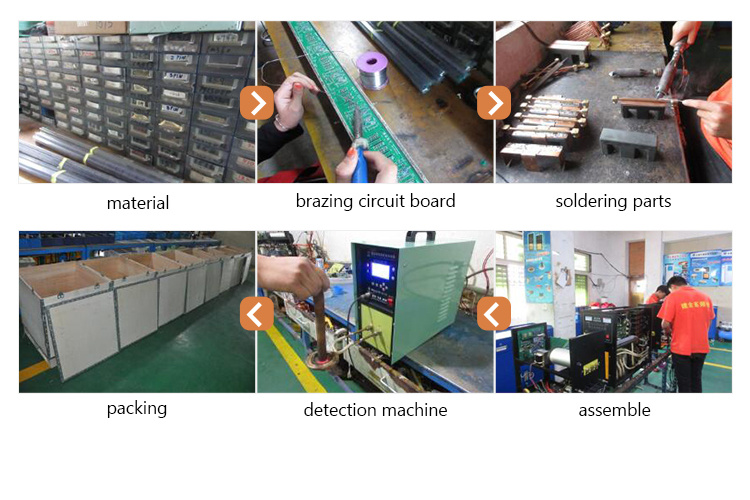

Production process:
Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
Heat treatment for various electric tools, such as gear and axes.
Heat treatment for machine tools,such as lathe deck and guide rail.
Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp etc.
Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
Welding of various meatal products,such as drill bits,cutter teeth,accessories,tool bit etc.
Packing details:

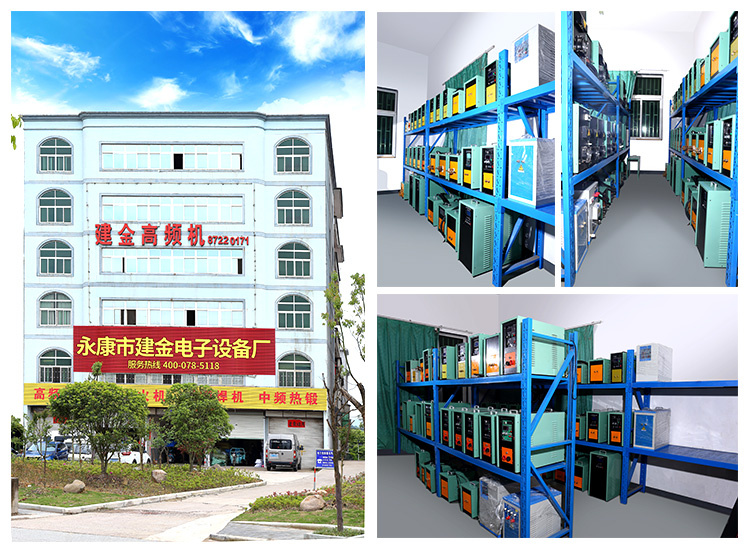

YongKand JianJin Electronics Co.,Ltd is a China based company with 12 years experience in special induction heating equipment region. Our R& D team has developed different induction machines for varied applications, and our machines have been successfully installed and commissioned all world wide.
We are a leading manufacturer of reliable, high quality induction heating equipments, that ensures an excellent payback on your investment. Besides, JianJin Electronics Co.,Ltd can provide specific application oriented equipment to meet individual needs of our customers and assist you with automation of the machines offered.If you have any interest in our products, pls do not hesitate any more, our staff will give you the best service at the first time.
FAQ:
1.which countries your products are exported to ?
Our products are sold all over the world and with related certifications.
2.How to install your machine?
We have paper installation instructions and videos ,we will teach till you learn it.
3.How about the warranty?
All our products have one year quality warranty,during the warranty time,the spare parts replacement is free,and we
provide life long time technical support and other assistance.
4.Which export port you use?
Any China port,commonly we will use Ningbo Shanghai port,can appoint as you like.
5.If I have paid but can not receive the goods,how should I do?
Alibaba international website is a famous trade platform and has been mature those years,every merchant on it has
paid large integrity fund,and we have China business licenses which can be checked on China official website or we
can show it to you,so that situation will never appear, please be assured.
6. How about the payment ways and delivery time?
30% deposit,70% before sending the goods(we will shoot total delivering process for customer's confirmation)and the
related papers.You can pay by T/T,L/C,western union or other ways.The small machinedelivery date is within 7 days,
the bigger one takes about 15days,we will delivery goods on time.
7.What is your nature of your company,dealer or factory?
We are manufacturer, warmly welcome to visit our factory.
Contact details:
Yongkang jianjin electonic equipment factory
Tel:86-0579-83967118
Fax:86-579-87237793
Cell:86-18067607118
http://www.inductionheatting.com

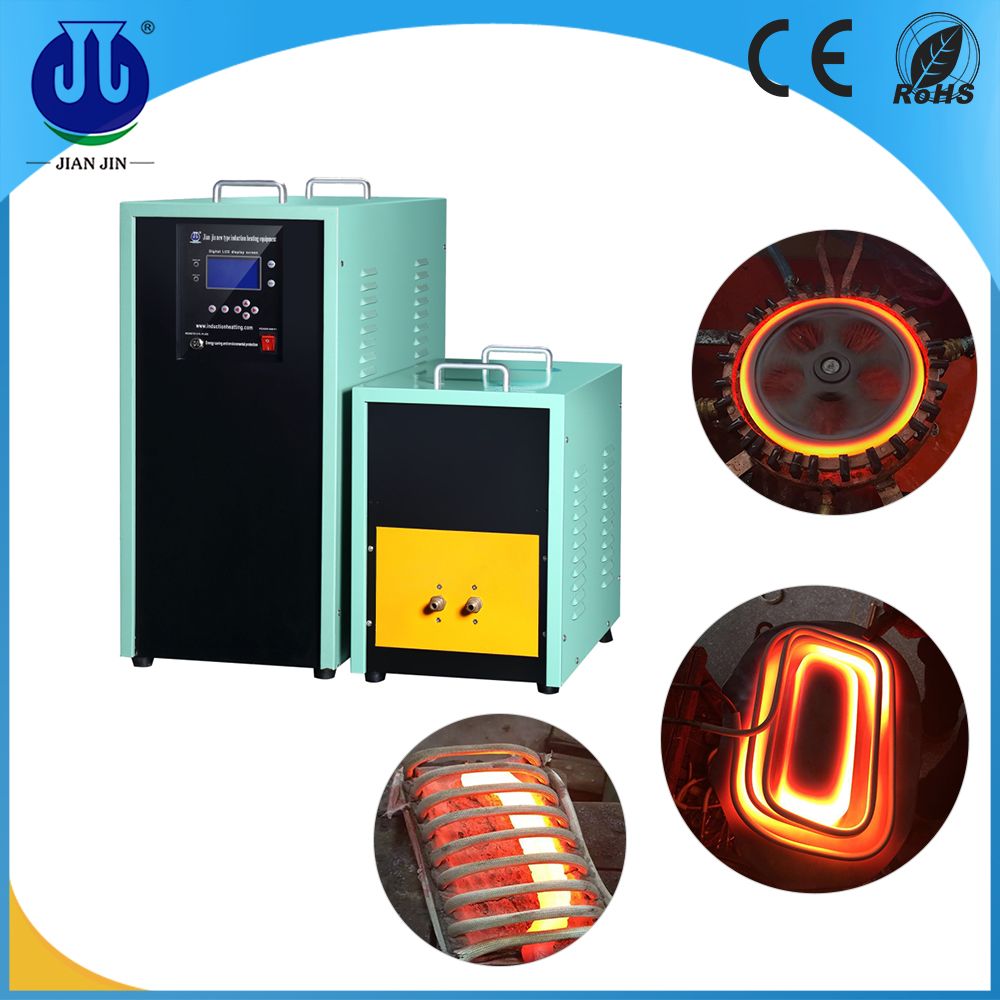

| Prod Model: | JJ-GP60X |
|---|---|
| Input Power: | 60kw |
| Input Voltage: | Three Phase 380V, 50-60Hz |
| Oscillation Frequency: | 30-100kHz |
| Net Weight: | 42.8/37.3kg |
| Certificate: | Ce RoHS SGS |
| Used For: | Quenching, Annealing, Welding, Melting, Forging |
| Color: | Black+Green |
| Name: | Induction Heater |
| Model: | Jj-Gp60X |
