Electric Torque Wrench /Hydraulic Torque Wrench /Torque Wrench (30XLCT)

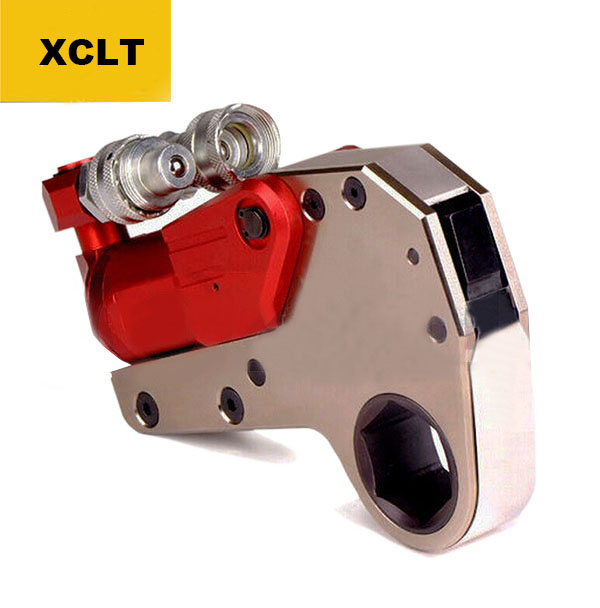

30XLCT Series Special Customized Hydraulic Torque Wrench


The Drive Unit is strong uni-body design, the material of wrench is Aircraft Grade Materials of TITAL 919 alloy with high strength and ultra-light.
The working head is quite safe and reliable for complete inclusion in design. Ultra-light. Ultra-thin. Big torsion fit with various high difficulty space.
Output accuracy ±3%, very high repeatability.
360° swivel hose connection allows easier positioning in confined areas.
Anti-reverse pawl designed for preventing ratchet return in the return stroke.
Sleek Design affords Easy Fit on the tightest bolt patterns.
Wide range of optional metric and imperial hexagon cassettes and reducers
S configured with high technology, ideal for long-term usage by means of aluminum-titanium design.  Almost every tightening & loosening problems can be accomplished with these series that have a torque capacity up to 3.6992 Nm. Hongli serves a wide range accessory for LOW series. These products which are designed for serving true resolutions, entitled with TUV seal result of an effort with appropriate directives.
Function as below:

Xlct series hexagon cassette selection chart:

2XLCT				4XLCT				8XLCT				14XLCT				30XLCT
Cassettes Kassetten	R mm	A mm	Max Torque (Nm)	Cassettes Kassetten	R mm	A mm	Max Torque (Nm)	Cassettes Kassetten	R mm	A mm	Max Torque (Nm)	Cassettes Kassetten	R mm	A mm	Max Torque (Nm)	Cassettes Kassetten	R mm	A mm	Max Torque (Nm)
2XLCT-19	27	16	2328	4XLCT-34	36	16	5858	8XLCT-41	46	22	10941	14XLCT-50	60	31	18521	30XLCT-85	78	28	41882
2XLCT-22	27	14	2328	4XLCT-36	36	15	5858	8XLCT-46	46	19	10941	14XLCT-55	60	28	18521	30XLCT-90	78	27	41882
2XLCT-27	27	11	2328	4XLCT-41	39	15	5858	8XLCT-50	46	17	10941	14XLCT-60	60	25	18521	30XLCT-95	83	28	41882
2XLCT-30	29	12	2328	4XLCT-46	42	15	5858	8XLCT-55	50	18	10941	14XLCT-65	60	22	18521	30XLCT-100	83	25	41882
2XLCT-32	29	11	2328	4XLCT-50	44	15	5858	8XLCT-60	52	17	10941	14XLCT-70	60	19	18521	30XLCT-105	89	28	41882
2XLCT-34	31	11	2328	4XLCT-55	46	14	5858	8XLCT-65	55	17	10941	14XLCT-75	63	19	18521	30XLCT-110	89	25	41882
2XLCT-36	31	10	2328	4XLCT-60	50	15	5858	8XLCT-70	58	17	10941	14XLCT-80	66	19	18521	30XLCT-115	95	28	41882
2XLCT-41	34	10	2328	4XLCT-65	53	15	5858	8XLCT-75	60	17	10941	14XLCT-85	69	19	18521	30XLCT-117	95	27	41882
2XLCT-46	37	10	2328	4XLCT-70	56	15	6474	8XLCT-80	63	16	10941	14XLCT-90	72	20	18521	30XLCT-120	95	25	41882
2XLCT-50	40	11	2328	4XLCT-75	59	15	6474	8XLCT-85	66	16	10941	14XLCT-95	74	19	18521	30XLCT-125	101	29	41882
2XLCT-55	43	11	2328	4XLCT-80	61	15	6474	8XLCT-90	69	17	10941	14XLCT-100	77	19	18521	30XLCT-130	101	26	41882
2XLCT60	46	11	2141					8XLCT-95	71	16	10941	14XLCT-105	80	19	18521	30XLCT-135	104	26	41882
								8XLCT-100	75	17	11774	14XLCT-110	83	19	18521	30XLCT-140	110	29	41882
								8XLCT-105	78	17	11774	14XLCT-115	87	20	18521	30XLCT-145	110	26	41882
												14XLCT-117	87	19	18521	30XLCT-150	116	29	41882
																30XLCT-155	116	26	41882
																30XLCT-160	128	36	41882
																30XLCT-165	128	33	44593
																30XLCT-170	128	30	44593
																30XLCT-175	128	27	44593

Website: www.pipetool.com.cn
Welcome to contact us!

Tel: 0086-0571-86260006



Ordering information
Model	2XLCT	4XLCT	8XLCT	14XLCT	30XLCT
Torque (N.M))	282~2832/241~2414	585~5858/647~6474	1049~10491/1177~11774	1558~17639	4188~41882/4459~44593
Screw sizes(MM)	19~55 / 60	34~65 /70~80	41~95 /100~105	50~117	110~155 / 160~175
L(mm)	196	258 /263	310 / 311	360	430 / 441
H1	126	163 173	192 / 201	225	303 / 315
H2	102	136 / 146	168 / 177	204	272 / 285
W1	32	42	53	64	85
W2	51	66	83	99	131
Power head weight(KG)	0.9	1.7	3	4.6	10.4
Work head weight(KG)	1.5	3.4	6.3	11.4	20.5
