Electric Thin Plate hydraulic power unit auto liftFeature:1. Driven by double hydraulic cylinders, steel wire chain-type elevatingsystem
2. Oil cylinder parts made by automatic high rotation speed CNC lathe ensure
the excellent finish and concentricity.
3. Automatic arm safety lock and hook type post lock
4. Electrical box control both side unlocked safety, arm locks with tooth type
ratchet, multi-safety device. more reliable.
5. 3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs,
makes easy and quick service
6. Door opening protection rubber as standard
7. Laser cutting surface
8. Shot blasting and high temperature baking powder coated surface finish
9. Japanese oil seal
Specification:| Lifting Capacity | 4000kg |
| Lifting Height | 1850mm |
| Minimum Height | 110mm |
| Lifting Time | 40-45s |
| Overall Height | 2800mm |
| Overall Width | 3300mm |
| Width Between Columns | 3175mm |
| Motor Power | 2.2kw |
| Power Supply | 220V/380V/415V |
| short arm | 720mm-1110mm |
| long arm | 770-1240mm |
Similar product:| Model | Lifting capacity | Lifting height | width between posts | Overall height |
| JH-4000FS | 4000kgs | 1800mm | 2930mm | 2794mm |
| JH-4000F | 4000kgs | 1800mm | 3170mm | 2800mm |
| JH-5000FS | 5000kgs | 1800mm | 3400mm | 2920mm |

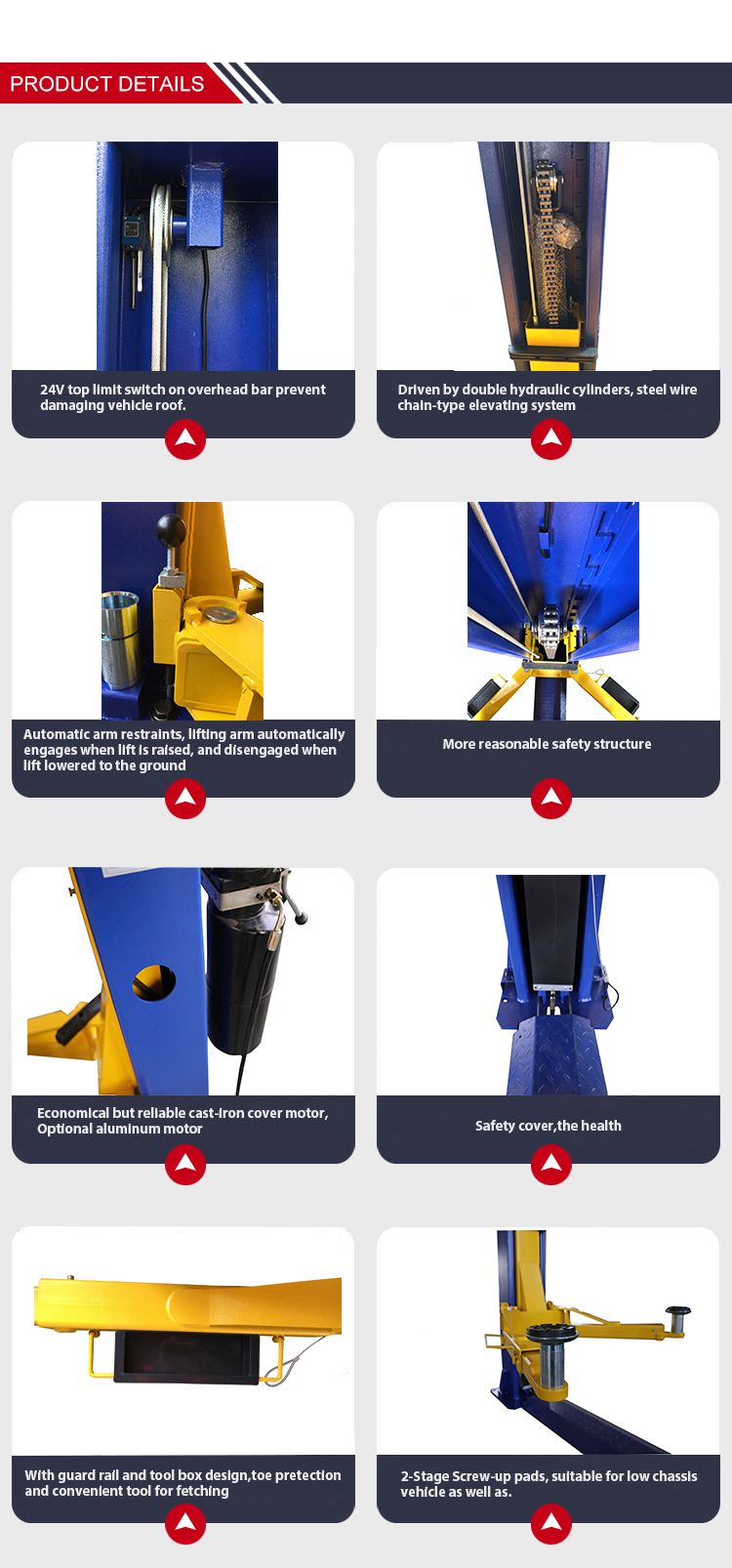

Detail picture:
Delivery Date:Usually it takes 3 weeks after receving your receipt payment .
However, it would depend on our production line schedule(the timing clients place order)and the complication of the item.
Quality management:To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification. All of our products are 100% inspected before shipment.Whole manufacturing processes are under a veryserious and strict system.
Company Introduction:
| FAQ |
| Q1 | What's the delivery term for making business with us? |
| A | Usually we send the shipments in FOB term.However, the terms of CIF and C&F are acceptable which depend of clients. |
| Q2 | What's the delivery time after placing the order? |
| A | Usually it takes 3 weeks after receving your receipt payment .However, it would depend on our production line schedule(the timing clients place order)and the complication of the item. |
| Q3 | What's the payment? |
| A | By T/T, 50% is paid in advance; balance befor delivery |
| Q4 | What's the min order? |
| A | 1 set. |
| Q5 | What's the warranty? |
| A | 1years for free |
Junhv Auto Maintenance Equipment Co., Ltd established in '2013. Has over 5 years experience in the design, manufacture and global distribution of an extensive line of qualified automotive lifts including 2-post, 4-post, scissors and portable lifts. We are one of the few companies in China which our lifts are passed the CE certification, Australian Safety certification and ETL/ALI certificates.
Junhv strives for providing customers high quality automotive equipment with best price. All the members of Junhv have rich experience and innovative spirit. The products are good reputed among all customers not only for the high quality guarantee but also for the superior services.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
