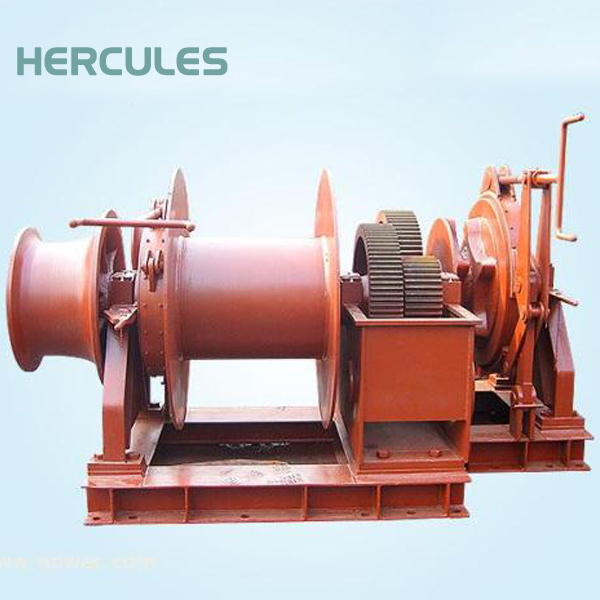

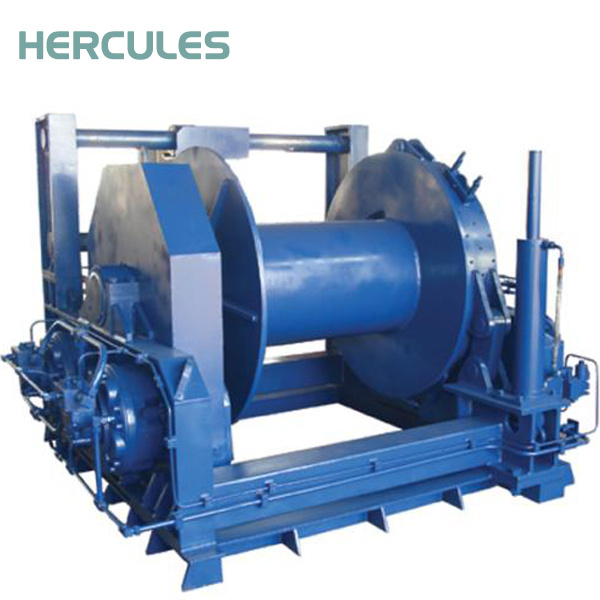

Electric Power Winch With Large Capacity1.Product Description
JM series:
Application: JM series electric slow winch, applied to power plants, petrochemical, metallurgy, transport and other large building construction and installation of the equipment, but also applicable to steel structure construction and bridge construction.
Feature: The winch has the advantages of small volume, light weight, high bearing capacity, simple structure, easy operation, high reliability. Drive speed reducer using multiple series, Reduction of single stage force, has large capacity and low speed positioning performance, according to user requirements according to different occasions for design construction.
Product Model: JM0.5T JM1T JM1.6T JM2T JM3.2T JM5T JM8T JM10T JM12.5T JM16T JM20T JM25T JM32T
JMW series

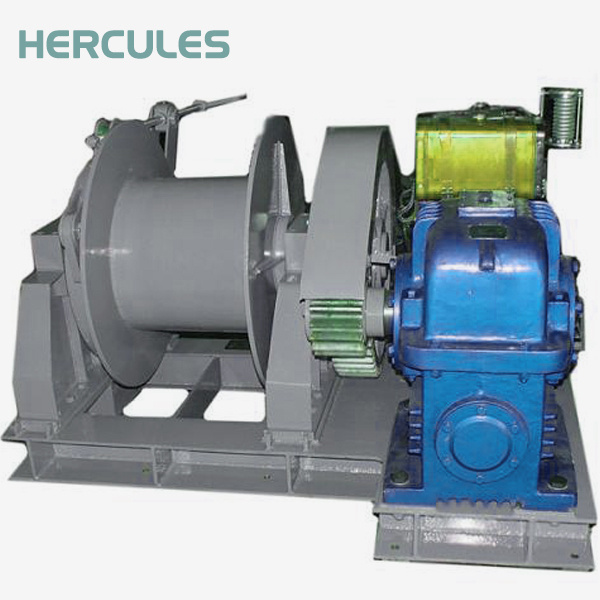

Application: JMW series of electric worm gear slow winch, mainly for water conservancy engineering, forestry, mining, port lifting or flat mop, also applies to machinery and equipment, construction of civil construction and installation engineering company.
Main Feature: The winch for worm gear reducer drive ,the drive for the meshing transmission, therefore ,stable running ,small noise ,and has self-locking function ,can realize the reverse self -locking .The speed reducer adopts a high abrasion resistance materials and lubricating device ,long service life .
Product Model: JMW3T JMW5T JMW8T JMW10T JMW16T
JMM series
Application: JMM series friction electric slow winch, mainly for large and giant write, steel structure, steel rope and tunnel, anchor of the long distance and large stroke lifting operation of traction.
Main Feature: The winch wire rope pitch circle diameter size unchanged, constant speed ,large amount of traction power without fluctuation ,which can achieve large tonnage ,long distance, large stroke intelligent heavy equipment hoisting traction, etc. ,but its complex structure ,high manufacturing accuracy.
Product Model: JMM1T JMM2T JMM3T JMM5T JMM10T JMM16T JMM20T
JMM32T
2. Technical Specification
Model | Pull Capacity
(KN) | Speed of Rope
(m/min) | Rope Capacity
(m) | Rope Dia
(mm) | Motor Model | Motor Power
(KW) | Dimension
(mm) | Weight
(KG) |
| JK0.5 | 5 | 22 | 110 | 7.5 | Y100L2-4 | 3 | 710*690*490 | 200 |
| JK1 | 10 | 22 | 80 | 9.3 | Y112M-4 | 4 | 710*610*410 | 300 |
| JK1.6 | 16 | 24 | 115 | 12.5 | Y132S-4 | 5.5 | 940*900*570 | 500 |
| JK2 | 20 | 24 | 110 | 13 | Y132M-4 | 7.5 | 940*900*570 | 550 |
| JK3.2 | 32 | 30 | 250 | 15.5 | YZR180L-6 | 15 | 1640*1430*820 | 1150 |
| JK5 | 50 | 30 | 240 | 21.5 | YZR225M-6 | 30 | 1900*1738*985 | 2500 |
| JK8 | 80 | 30 | 210 | 26 | YZR280S-8 | 45 | 1980*1790*1100 | 3500 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
| Model | Pull Capacity
(KN) | Speed of Rope
(m/min) | Rope Capacity
(m) | Rope Dia
(mm) | Motor Model | Power Pwer
(KW) | Dimension
(mm) | Weight
(KG) |
| JM1 | 10 | 15 | 80 | 9 | Y112M-6 | 2.2 | 740*690*490 | 270 |
| JM1.6 | 16 | 16 | 115 | 12.5 | Y132M-6 | 5.5 | 940*900*570 | 500 |
| JM2 | 20 | 16 | 100 | 13 | Y160M-6 | 7.5 | 940*900*570 | 550 |
| JM3.2 | 32 | 9.5 | 150 | 15.5 | YZR160M-6 | 7.5 | 1430*1160*910 | 1100 |
| JM5 | 50 | 9.5 | 190 | 21.5 | YZR160L-6 | 11 | 1620*1260*948 | 1800 |
| JM8 | 80 | 8 | 250 | 26 | YZR180L-5 | 15 | 2180*1460*850 | 2900 |
| JM10 | 100 | 8 | 200 | 30 | YZR200L-6 | 22 | 2280*1500*950 | 3800 |
| JM12.5 | 125 | 10 | 300 | 34 | YZR225M-6 | 30 | 2880*2200*1550 | 5000 |
| JM16 | 160 | 10 | 500 | 37 | YZR250M-8 | 37 | 3750*2400*1850 | 8800 |
| JM20 | 200 | 10 | 600 | 43 | YZR280M-8 | 45 | 3950*2560*1950 | 9900 |
| JM25 | 250 | 9 | 700 | 48 | YZR280M-8 | 55 | 4350*2800*2030 | 13500 |
| JM32 | 320 | 9 | 700 | 52 | YZR315S-8 | 75 | 4500*2850*2100 | 20000 |
| JM50 | 500 | 8 | 800 | 60 | YZR315M-8 | 90 | 4930*3050*2250 | 38000 |
| JM65 | 650 | 10 | 2400 | 64 | LA8315-8AB | 160 | 5900*4680*3200 | 46000 |
