Electric Hydraulic Pump Pipe Bender Machine

Electric Hydraulic Pump Pipe Bender Machine
Price: US $ 85-650/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Separately designed between the bender and pump, easy to carry on site. It is widely used in smooth wrinkle-free bending for water pipes, wire pipes, gas pipes, pipe, especially for thick-walled pipes.
Size 1/2''- 2'' pipes can be bent to 90º at a time, size 2''- 6'' must move the pipe to bend.

Product Features:

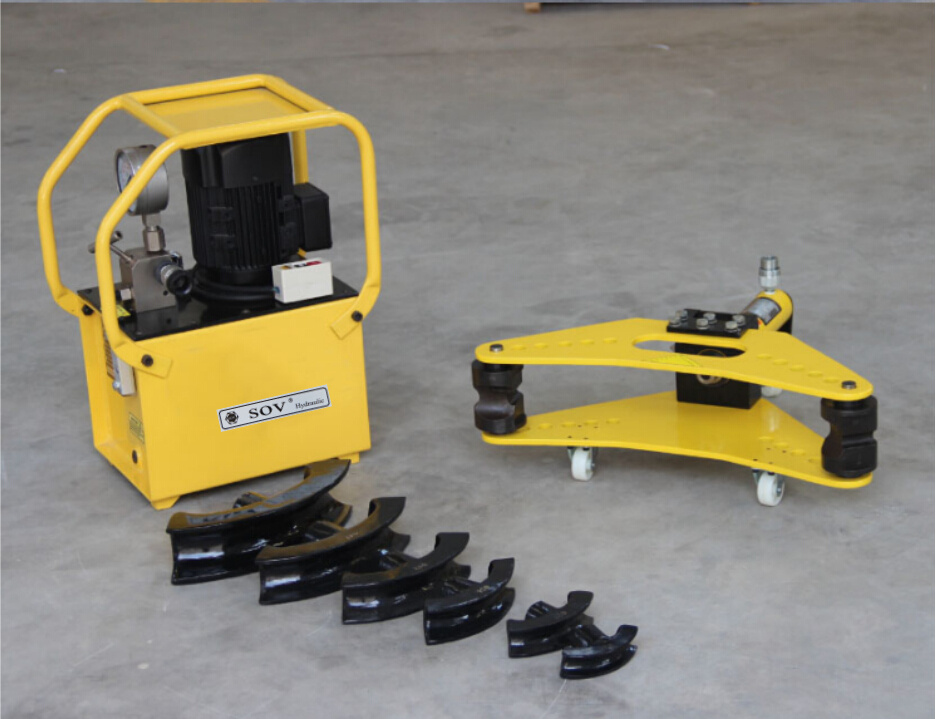

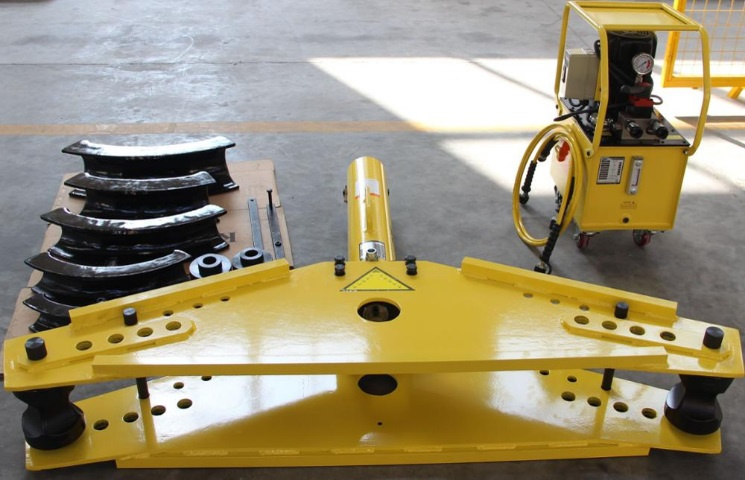

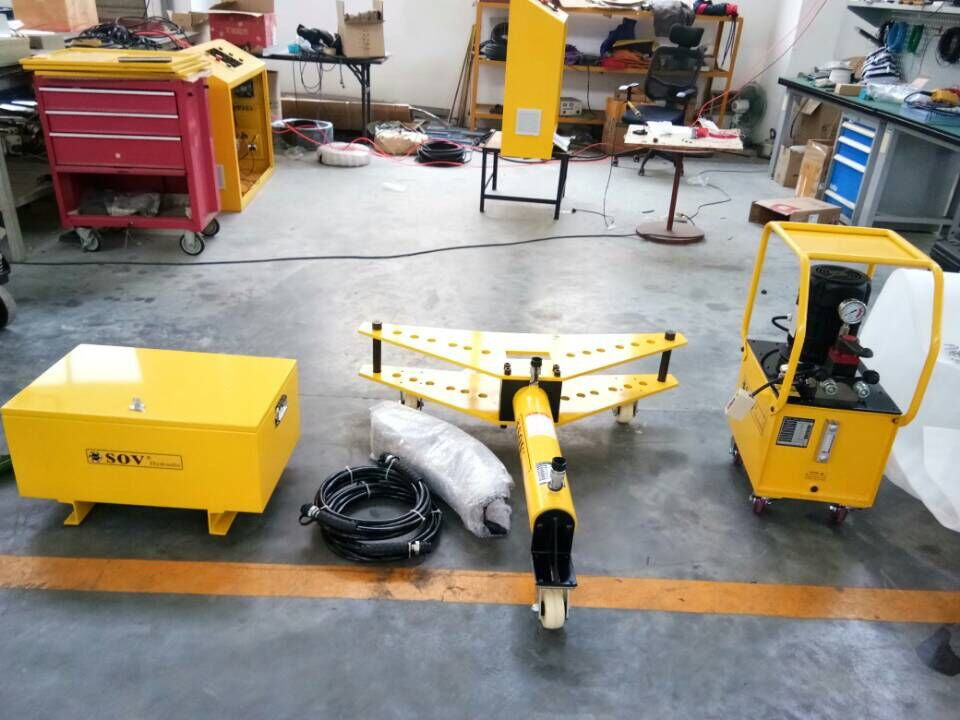

A whole set includes Hydraulic Pipe Bender, Electric Hydraulic Pump, Hydraulic Hose, Molds, Fixed Plug-pin;
Double acting Hydraulic Cylinder, quickly reset, improving the bending efficiency;
Piston plated hard Cr to prevent scratches and corrison, surface painted to improve the resistance and corrison;
Lightweight heat-treated steel molds and steel frame make bending pipe smooth wrinkle-free;
Size 4''- 6'' Electric Hydraulic Pipe Bender, equipped with Double Acting Hydraulic Cylinder which reset quickly, works more efficiently with Electric Pump.

Technical Parameters:
ModelBending Range
(O.D.)
(mm)
Bending Radius

(mm)
Pipe Thickness

(mm)
Max. Capacity

(KN)
Working Pressure
(MPa)
SOV-DWG-6022-604×pipe diameter≤410070
Female mould 2 pieces   Pin 2pieces Bending tyre:22 27 34 42 48 6070
SOV-DWG-7627-764×pipe diameter≤1030070
Female mould 2 pieces   Pin 2pieces Bending tyre: 27 34 42 48 60 7670
SOV-DWG-10827-1084×pipe diameter≤1030070
Female mould 2 pieces   Pin 2pieces Bending tyre: 27 42 48 60 76 89 10870
SOV-DWG-15976-1594×pipe diameter≤1050070
Female mould 2 pieces   Pin 2pieces Bending tyre: 76 89 108 133 159  Block 2 pieces70



Packing details
1. Out packing: standard export wooden case
2. Inner packing: with careful stretch film+cardboard

Shipping way
1. Small quantity: by international air express, within 3-7days arriving
2. Large quantity: by ocean cargo, arriving time depends on customers destination

Our service
1. 24hours online technical support (telephone and email)
2. 100% Satisfaction Guarantee
3. Engineers are available

Our company
Shanghai SOV Hydraulic Technology Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 5- 2000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.



Why Choose Us
1. Various style for completely series hydraulic products for you to choose
2. High quality with competitive price
3. Sample order & small quantity order is ok
4. Provide free products information

Why You Need SOV?
1. Because you need quality hydraulic tools at economical prices.

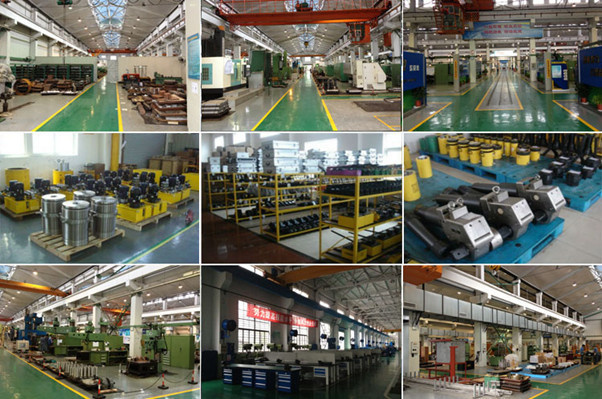

2. SOV hydraulic technology factory are produced in modern facilities using advantage processing technology. All SOV products meet or exceed CE and ISO standards and tolerances.
3. Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.
4. Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

Quality Control
Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.

NOTE: all items are directly from factory, We would allow you a quantity discount, so please contact with me when u gonna order, we will answer back ASAP.

Thanks for your attention, wish you have a nice day!

Prod Model: SV16PZ Series
Output: 10-30ton
Bending Range: 1/2"-6"
Stroke: 250-300mm
Oil Capacity: 375-980ton
Pressure: 700bar
Dies: 6-10pairs
Weight: 18-120kg
Stock: Yes
OEM: Yes
Payment: T/T
About SOV Hydraulic Technology(Shanghai) Co., Ltd.

Shanghai SOV Hydraulic Technology(Shanghai) Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.

Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

We are a manufacturer in tools, such as:

Hydraulic cylinders, jacks (5-1000ton), single acting and double acting, hollow plunger; Low height, ultra pressure, lock nut

Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-72000Nm);

Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton;

Hydraulic pumps, manual and electric type (max up to 3000bar);

Integrated hydraulic lifting system solutions ( 4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)

Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose

Hydraulic pipe cutting and beveling machine

Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
