Electric Drive Hydraulic Power Vertical Mobile Scissor Lift
| Price: |
US $ 200-500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

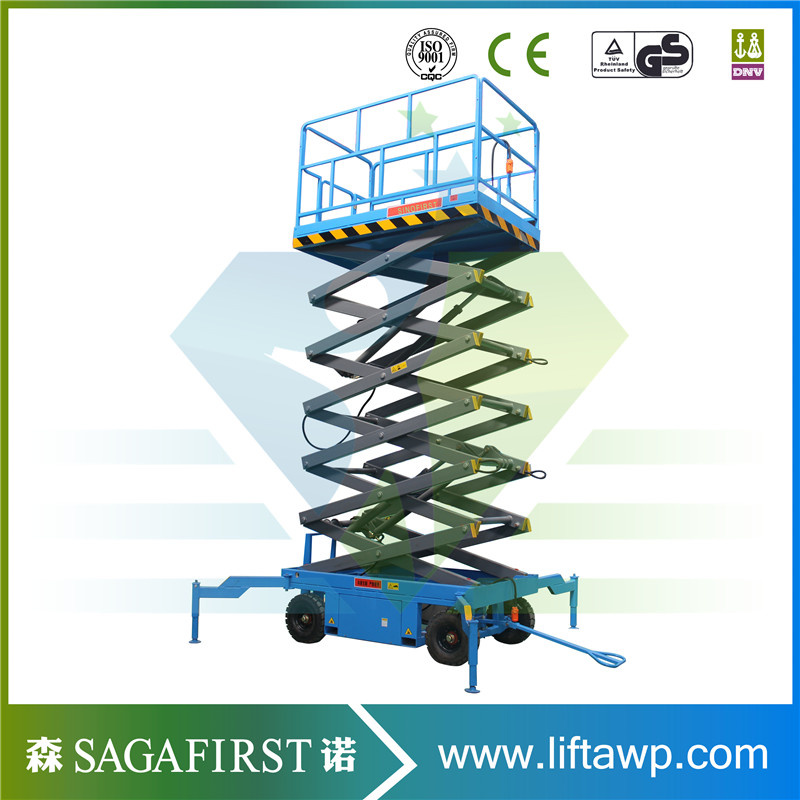

Electric drive hydraulic power Vertical Mobile Scissor LiftHydraulic Scissor lift platform is one of the most popular aerial work platforms because of its strong structure,
heavy duty load capacity ,simple structure and cheap price. SINOFIRST mobile scissor lift is widely used
in construction site, building maintenance, factory daily aerial work maintenance and various kinds of aerial workIntroduction:1.Moving by man manually. Lifting by AC or DC power
AC power: Connect to Socket directly.
DC power: Equipped with battery and charger.
2.Simple structure, easy to maintain.
3.Flexible producing technique, suitable for customization.Safety precautions for scissor lift platform:1. Explosion-proof valves
2.Equipped with antiskid plate
3.Overload protective system.
4.single control solenoid valves :prevent dropping if power failure.
5. Emergency decline valve
6.Four supporting legsSpecification for scissor lift platform:| Model | Capacity | Max Platform Height | Lowed Platform Height | Platform size | Lifting time | Lifting motor | Net weight |
| kg | mm | mm | mm | s | kw | kg |
| SSL0545 | 500 | 4500 | 980 | 1300×850 | 31 | 0.75 | 560 |
| SSL0360 | 300 | 6000 | 950 | 1780×880 | 54 | 0.75 | 750 |
| SSL0560 | 500 | 6000 | 950 | 1780×880 | 49 | 0.75 | 750 |
| SSL0575 | 500 | 7500 | 1400 | 1800×1000 | 62 | 1.0 | 1150 |
| SSL0390 | 300 | 9000 | 1350 | 1800×1000 | 72 | 1.0 | 1200 |
| SSL0590 | 500 | 9000 | 1550 | 1800×1000 | 81 | 1.0 | 1260 |
| SSL1090 | 1000 | 9000 | 1550 | 2100×1150 | 55 | 2.2 | 1850 |
| SSL0311 | 300 | 11000 | 1600 | 2100×1150 | 73 | 1.0 | 1320 |
| SSL0511 | 500 | 11000 | 1600 | 2100×1150 | 80 | 1.0 | 1380 |
| SSL0312 | 300 | 12000 | 1750 | 2450×1350 | 85 | 2.2 | 1700 |
| SSL0512 | 500 | 12000 | 1750 | 2450×1350 | 90 | 2.2 | 1850 |
| SSL0314 | 300 | 14000 | 1900 | 2450×1350 | 98 | 2.2 | 2200 |
| SSL0514 | 500 | 14000 | 1900 | 2450×1350 | 120 | 2.2 | 2500 |
| SSL0316 | 300 | 16000 | 1950 | 2500×1500 | 130 | 3.0 | 2600 |
| SSL1060 | 1000 | 6000 | 1300 | 1800×1100 | 50 | 1.0 | 1200 |
| SSL1090 | 1000 | 9000 | 1800 | 2600×1500 | 90 | 3.0 | 2200 |
| SSL1012 | 1000 | 12000 | 1800 | 2450×1350 | 95 | 2.2 | 2500 |
| SSL1014 | 1000 | 14000 | 1900 | 2500×1400 | 98 | 3.0 | 2600 |

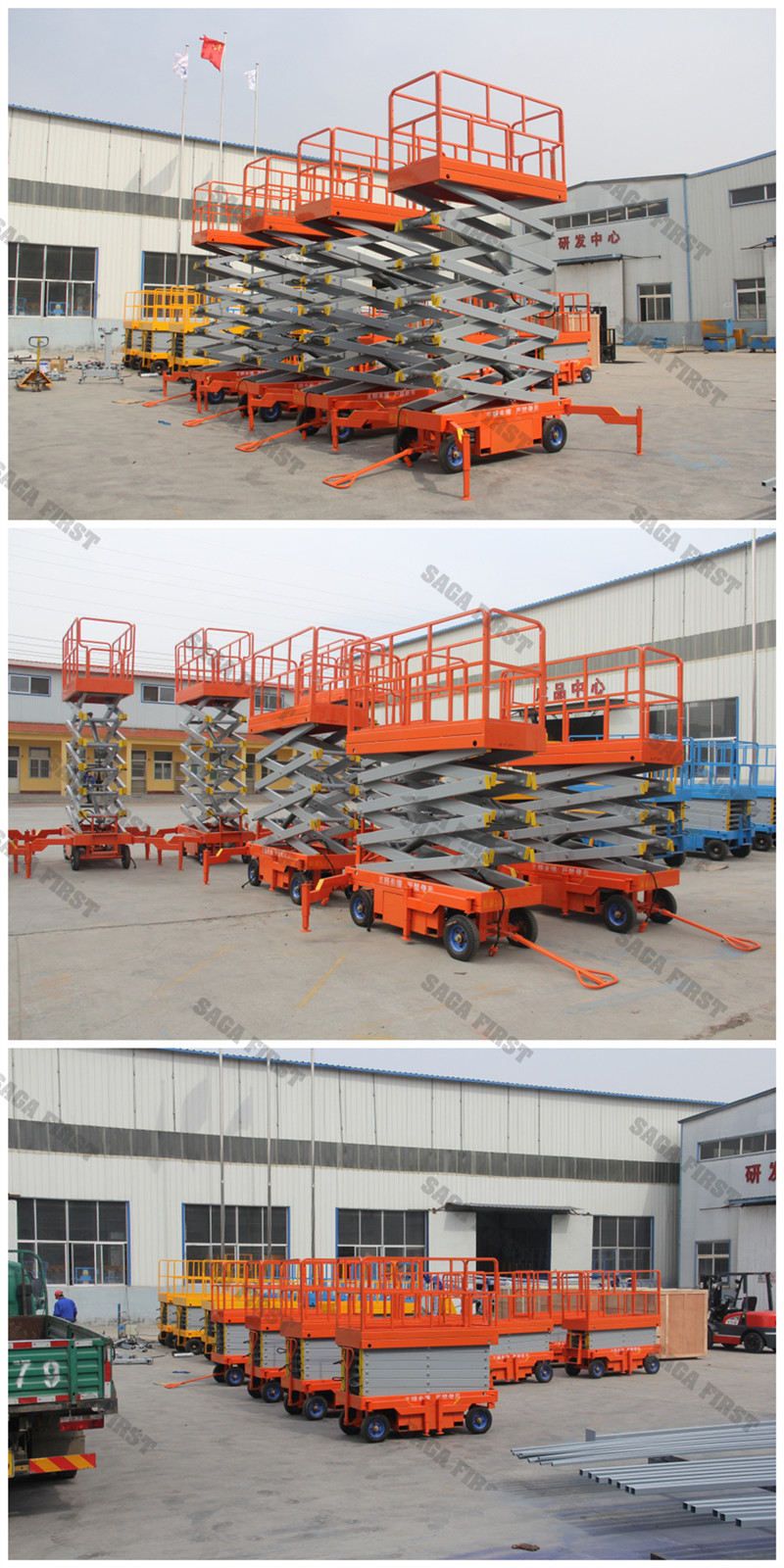

Pictures for Your Review:
Certificate:ISO and CE
Our Service:
1.We can design the customerized aerial scissor man lift as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the electric scissor lift table break down to help you repair.
6.Parts of aerial scissor man lift can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The aerial scissor man lift adopt most of the common parts of hardware.You can buy the parts in your local
hardware market.
2.How can customer repair the aerial scissor man lift.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to
repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.

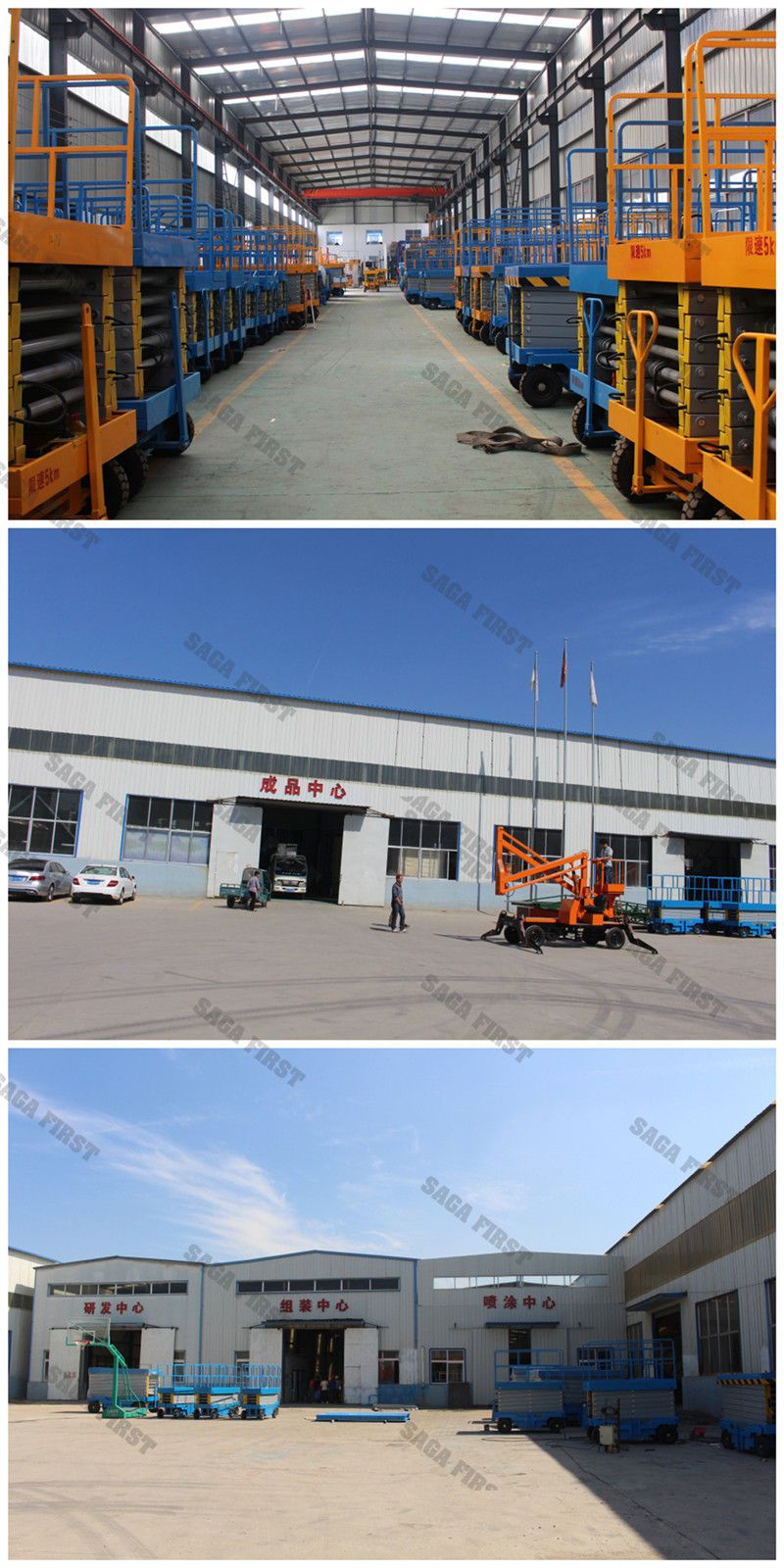

Factory show:
Contact information: Dennis(Sales Manager)
Qingdao Sinofirst Machinery Co., Ltd.
Add:Danshan Industrial Park, Chengyang,Qingdao China
Mob:+86-18562653283 Tel:+86-532-68076300 Fax: +86-532-68076301
URL: www.liftawp.com
| Prod Model: |
FSL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Platform Height: |
From 4m to 18m |
| Load Capacity: |
300kg to 500kg |
| Surface Treatment: |
Shot Blasting |
| Moving Model: |
Electric |
| Lifting Mode: |
Electric |
| Lifting Motor: |
From1.0kw to 4.0kw |
| Quality Warranty: |
12month |
| Spare Parts: |
Free of Charge |
| Delivety Time: |
in Stock or 10days |
| Failure Rate: |
Extremly Low |
| Application: |
Construction |
| Carrying Capacity: |
Middle-Level |
| Driven Type: |
DC |
| Running Mode: |
Moving |
| Feature: |
Spillover Valve |
Qingdao Sinofirst Machinery Co., Ltd., famous for its high-end equipment, new and high technology, high credit standing and high growth, is a leading enterprise of aerial working platform in China and the first listed enterprise in the industry (stock code: 603338), with a total investment of up to RMB 560 million, a land area of more than 300 acres and a building area of up to 160, 000m2.
For the creation of high-end equipment, the Company has been devoted to the research and development, manufacturing, sales and service of various aerial working platforms, with 6 series and more than 80 models such as self-propelled telescopic booms, articulating booms, scissors, vertical, aerial stock picker and mast climbers. These products, featuring self-propelled type, intelligent operation and control, safety and super-sized coverage, are the most popular aerial working "robots". Due to the realization of specialization, serialization and branding, they have been widely applied to such industries as manufacturing and maintenance of airplanes and ships, building construction and installation, construction of roads and bridges, municipal works, warehousing and supermarket, etc. The Company also provides army with special-purpose products in addition to satisfying the civil demands. Sinofirst products have the following international safety certifications; European CE issued by TUV in Germany and ECM in Italy, ANSI in USA, AS/NZS 1418 in Australia, CU-TR in Russia, KC in Korea, so they are well sold to more than 80 countries and regions in Europe, the Americas, Asia and Africa, etc, as well as three large mainstream markets including Germany, Japan and America with good reputation.
With high and new technologies, the Company has advanced and award-winning processing equipment such as automatic bending robot and laser cutting machine imported from Germany, Hamada NC punch press imported from Japan, large automated surface coating production line and general assembly production line, etc. In the aerial working platform manufacturing field, the Company takes the global tycoon as a benchmark, introduce, absorb and re-innovate foreign advanced technologies so as to stand on the technological forefront for long. In view of the realization of light structure design, integrated control system, refined hydraulic system, scientific combination and matching, we have created a batch of safe, reliable, high-efficiency and environmental-friendly new national brands. By right of strong technical strength, the Company has established a provincial-level new and high-tech R&D center, owns domestic top-notch professional talents and a team of professional technicians who are accomplished in mechanical structure, hydraulic system and electric control system, and cooperates with national defense and military industry authorities technically. Through technical innovation, the Company has owned more than 140 patents, of which there are nearly 40 patents for invention and 2 certificates of registration for computer software copyright; We have self-owned intelligent property right of core technology and the Company is recognized as Shandong provincial patent model enterprise. Besides, the Company has participated in the formulation of 5 national standards and 3 industrial standards. With multiple technologies to fill up the domestic vacancy, the Company has undertaken and complete "key scientific and technological projects" and national torch plan projects successively and won a provincial scientific and technological progress award. Moreover, the Company has been regarded as a new and high-tech enterprise supported by China, green enterprise of Shandong Province, standard innovation-oriented enterprise and innovative pilot enterprise and has become a leading enterprise of aerial working platform manufacturing industry in China.
