Electric Cabinet Lock with Monitorig for Locker Cabinets (MA1208S)

Electric Cabinet Lock with Monitorig for Locker Cabinets (MA1208S)
Price: US $ 7-13/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Western Union

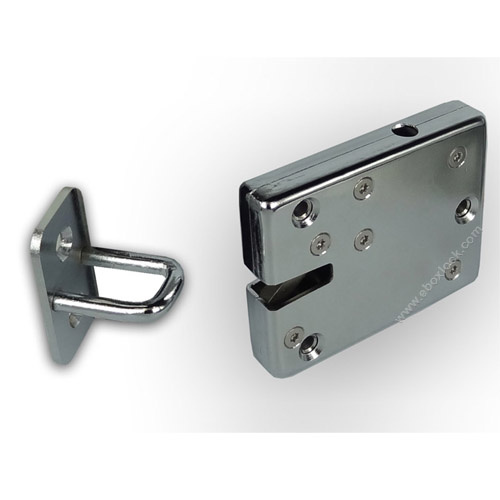

Electric Cabinet Lock MA1208S is a compact and all-metal constructed lock designed to provide keyless locking solution for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. Lock sensor is available for detecting door status. The cabinet lock is compatible with any access control system or standalone cabinet locking controller. It allows mechanical override for emergency open. The electric cabinet lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet locking applications.

Features
Available in 12VDC or 24VDC
Superior heavy duty metal construction
Chrome-plated steel housing
Convenient mechanical override enables manually release during power failure
Three-bolt regular triangle mounting enables high security and low install cost
Optional internal lock switch for detecting open/close output signal
Accepts access control signals from numeric keypad, RFID card, remote or fingerprint
Can be fitted to Cabinets, lockers, drawers and steel furniture etc
Patented Design
2 years limited warranty



Specifications
Operation Voltage                       12/24VDC intermittent ±10%
Power Consumption                    12V DC   800mA
Operation Mode                           Fail Locked
Holding Force                              150KG
Maximum power on time              Less than 30 second
Solenoid                                       Rated for intermittence use
Cycle Rating                                More than 1,000,000 times
MS Contact Rating                      2A @25V
Mechanical Override                   7mm hole
Working Temperature                 -20ºC ~ +60ºC
Dimensions LxWxH                    72mm*56mm*13.8mm
Gross Weight                              250g
Protection Class                          IP20
Compliance                                 CE and RoHS certificate




Applications:
The electric cabinet lock is ideal for various applications as following:
Electronic locker
Electronic locking control for steel furniture or metal cabinet
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and delivery locker


System Diagram

  Warranty
 We guaranty that the products you order from us is true, accurate, current, and complete in all respects; you will be notified immediately of any changes to product information by e-mail. We offer one year warranty from the delivery date for any product in case of original defect or dysfunction. The buyer should return the product in the original conditions to us and should bear the shipping costs and we will bear the cost of parts replacement. We strive for 100% customer satisfaction on every sale we complete.
  About Us
 Dajiang Lock Co., ltd is a leading manufacturer specializing cabinet locks, drawer locks, and locker lock. No matter size-restricted enclosures or heavy-doored metal cabinets; our electronic cabinet lock can meet your particular security requirement with customized design for your applications. Our range includes electronic cabinet lock, electronic locker lock, solenoid lock, solenoid cabinet lock, drawer lock, keypad locker lock, keypad cabinet lock, combination cabinet lock, cabinet cam lock, combination locker lock, combination cam lock, digital locker lock, electric cabinet lock and electric bolt lock
Prod Model: MA1208S
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Operation Voltage: 12/24VAC Intermittent ± 10%
Power Consumption: 12V DC 800mA
Operation Mode: 100kg
Cycle Rating: More Than 1, 000, 000 Times
Ms Contact Rating: 3A @125V
Working Temperature: --20c ~ +60c
Dimensions Lxwxh: 72mm*56mm*13.8mm
Protection Class: IP20
Usage: Steel Furniture Such as Cabinet and Lockers
Angel: 180
Customized: Customized
Material: Steel
Surface Finishing: Steel
Dajiang Lock Co., Ltd is a leading manufacturer specializing electronic lock for cabinet and drawer and lockers. No matter size-restricted enclosures or heavy-doored metal cabinets; We can meet your particular security requirement with customized design for your applications.

Eboxlock, as the brand, covers product lines of electronic cabinet locks, drawer locks, electronic locker lock, keypad cabinet lock, solenoid lock, combination cam lock, electric cabinet lock. With compact design, eboxlock suits to fit the limited space held in a cabinet or a drawer. We provide installation kits for both wood and metal furniture applications, which allow you to secure cabinet, drawer or locker with little or no change to your design simply and easily. Eboxlock is compatible with most access control system from markets and is ideal for areas of use e. g. Jeweller- or watch store showcases; Post boxes; Medicine and filing cabinets; Key Cabinets; Mailbox; Locker and steel furniture.

Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information. We offer OEM and ODM for any customer with special request.
