Elastomeric Bridge Expansion Joints

Elastomeric Bridge Expansion Joints
Price: US $ 30-110/Meter
Min Order: 10/Meter
Pay Type: L/C,T/T,Western Union,Paypal

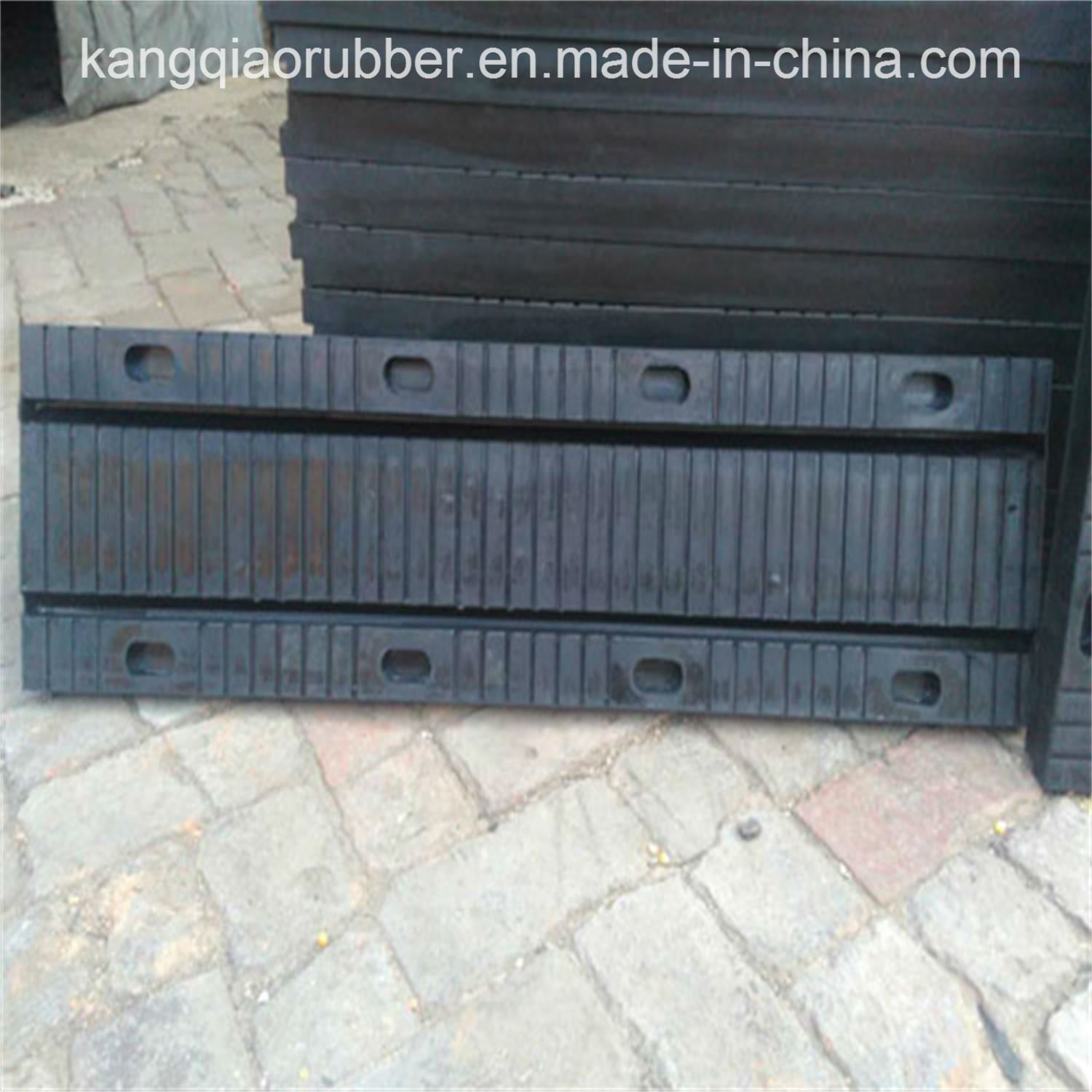

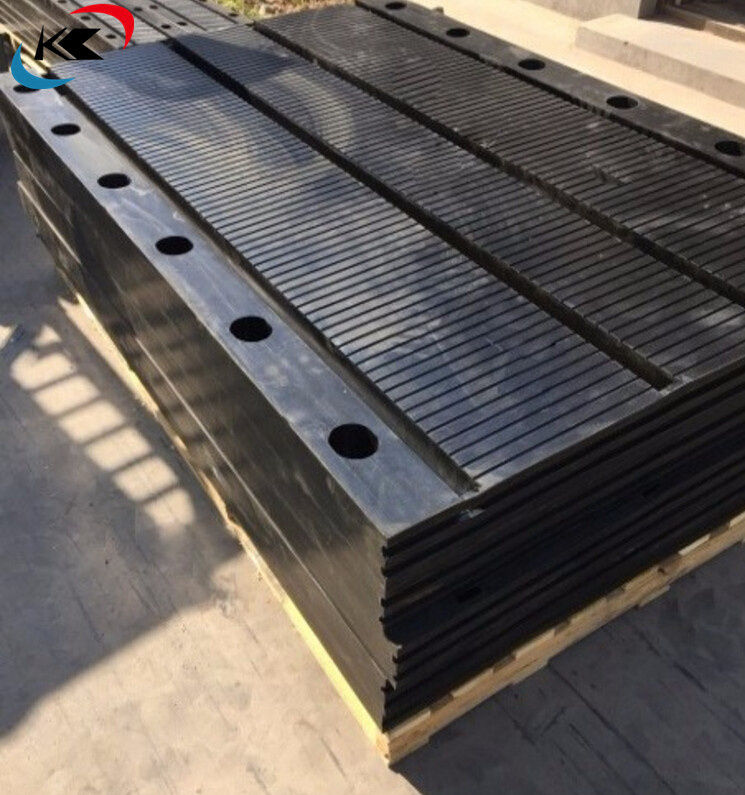

Transflex Neoprene Bridge Expansion Joint

Rubber elastomeric joints, is also called rubber expansion joint,transflex expansion joint. It is a device relative movement between two parts of a structure. It is made mainly of natural / neoprene rubber and use steel plate as skeleton for reinforcement.

It is designed and manufactured using the principle of low shear modulus of rubber. It can accommodate expansion displacement by shear deformation of rubber. It featured by low lateral resistance of expansion and compression. And it benefit to bridge structure.

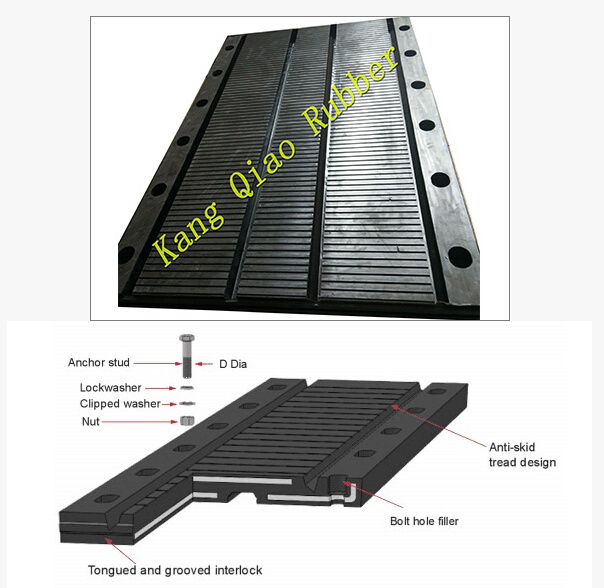

 Design structure and nomal size




ModelMovement
accommodation
Module
Length
Module
width
Stud
depth
Stud
diam
Module
weight
15038mm1750mm240mm35mm12mm30kg
20050mm1830mm274mm40mm12mm48kg
25065mm1830mm356mm46mm16mm68kg
30076mm1830mm432mm52mm20mm88kg
400102mm1830mm590mm54mm20mm150kg
650165mm1830mm724mm75mm24mm272kg
900230mm1830mm890mm93mm24mm375kg
1300330mm1220mm1204mm127mm30mm451kg



Advantage of Rubber Bridge Expansion Joint

. Heavy Duty and Long Durability

. Movement Accommodation up to 330mm

. Ancased in corrosive Resistant Elastomer

. Water Tightness and Anti-Skidding

. Smooth Wear Resistant Surfacing



 Construction Programs of Rubber Expansion Joint

(1) Set out and cut Rubber Bridge Expansion Joint.
(2) Excavate and clean the Rubber Bridge Expansion Joint area.
(3) Drill holes to locate the anchor bolts.
(4) Place the rebar mat and mold.
(5) Pour bottom concrete layer.
(6) Install comb-shaped steel plate.
(7) Pour side concrete.
(8) Maintenance the Rubber Bridge Expansion Joint.


Relative Products


























Prod Model: KQ-REJ
Displacement: 50-330mm
Rubber: Natural Rubber or Neoprene Rubber
Function: Damping, Shock Absorption
Feature: Aging Resistance, Low Noise
Shape: Rectangle
Installation: Steel Bolts, Nuts and Plastic Caps
The Leading Supplier of Engineering Rubber products

Heng Shui Kang Qiao Rubber Co., Ltd, it is located in Hengshui city, hebei province, where very close to Tianjin city and Beijing city, that specializes in manufacturing and exporting Bridge and Road construction products since the established in1996. Our company boasts the integration of research, development, production and sale with highly professional capabilities.

Our main products include: Bridge and Road Construction products as various elastomeric bearings, bridge pot bearings, spherical bearings, bridge flexible equipment; Seismic isolation as lead rubber bearings, high damping rubber bearings, steel type seismic bearings, waterproofing products as various waterstops, etc. We also in the area of pipeline solution products manufacturing.

Adhering to the principle that "quality and reputation must go first", our company pays much more attention to quality managements and today we are one of the leading companies owning customers in many countries of the world, All of our products are ISO9001 certified and enjoy a high reputation among many clients and users.

Quality Assurance has allowed us to further grow the business during past 20 years, we devote ourselves to serving the key projects of the main industies such as metallurgy, coal, electric power, building materials, transportation, etc., and our customers spread in USA, South America, Southeast Asia, Japan and Europe, and twenty-eight provinces in China.

Kang Qiao always actively promoteing the development of new products in the wordwide to satisfy the different requiement of our customers, Our engineers are able to provide different designs of products and develop various new products to meet customers' individual needs.

Advantages:

1. Experienced Manufacturer and Passed third-party test by CE, and SGS etc.

2. High quality materials, Reasonable prices, and Fast delivery.

3. Golden service.

Trust us, "We are honest, we are professional. "

Hope to be your partner based on Win-Win!
