Effective Stainless Steel Welded Wire Mesh PanelSpecification: Material:
stainless steel wire, low carbon steel wire
galvanized steel wire, low carbon Iron Wire
galvanized iron wire.
Panel Style:
Stainless steel wire welded wire mesh
Electro or hot dipped galvanized after or before welding
PVC coated galvanized welded wire mesh
Black wire/ no coated welded wire mesh. Specification List of Welded Wire Mesh |
Opening | Wire Diameter |
In inch | In metric unit(mm) | |
1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1" x 1" | 25.4mmX25.4mm | 16,17,18,19,20,21 |
1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
2" x 3" | 50mmx70mm | 2.0mm,2.5mm,1.65mm |
3" x 3" | 75mmx75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2" x 4" | 50mmx100mm | 2.11mm,2.5mm |
4" x 4" | 100mmx100mm | 2.0mm,2.5mm |
Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request
3,Packing: in waterproof paper in rolls. Custom packing available at request. |
Features:1)Solid construction;Easy handling;Wires resist movement;Flush edge trim available; strong welded points and bright luster.2)The mesh doesn't come loose even if cut in parts or being exerted force on parts.
3)Compared with general iron wire,the products are better in respects of anticorrosion and anti-rust.Application:It is of flat surface and firm in structure, it is widely used in indurstry, agriculture, building, transportation, mine,field, highways, lawn. cultivation, railways, profession's guard decorate, machine protection etc.

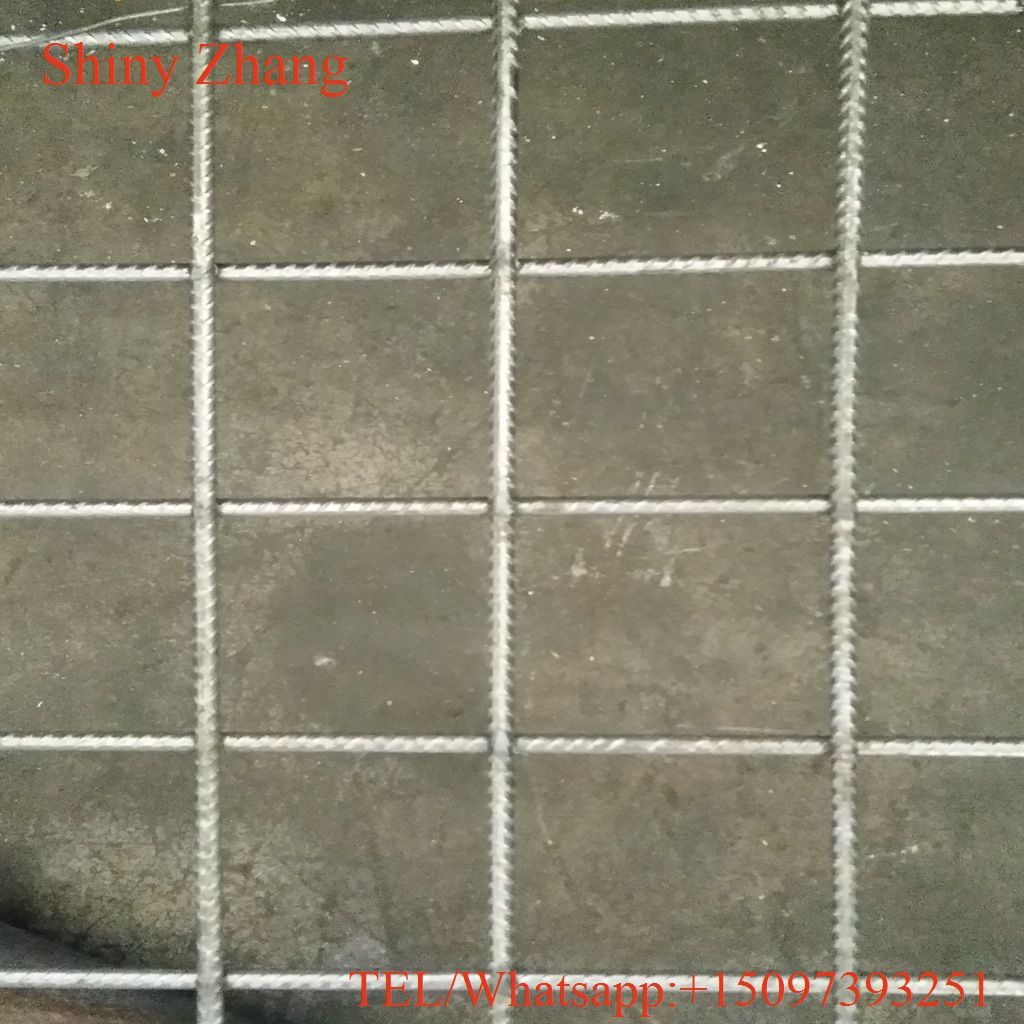

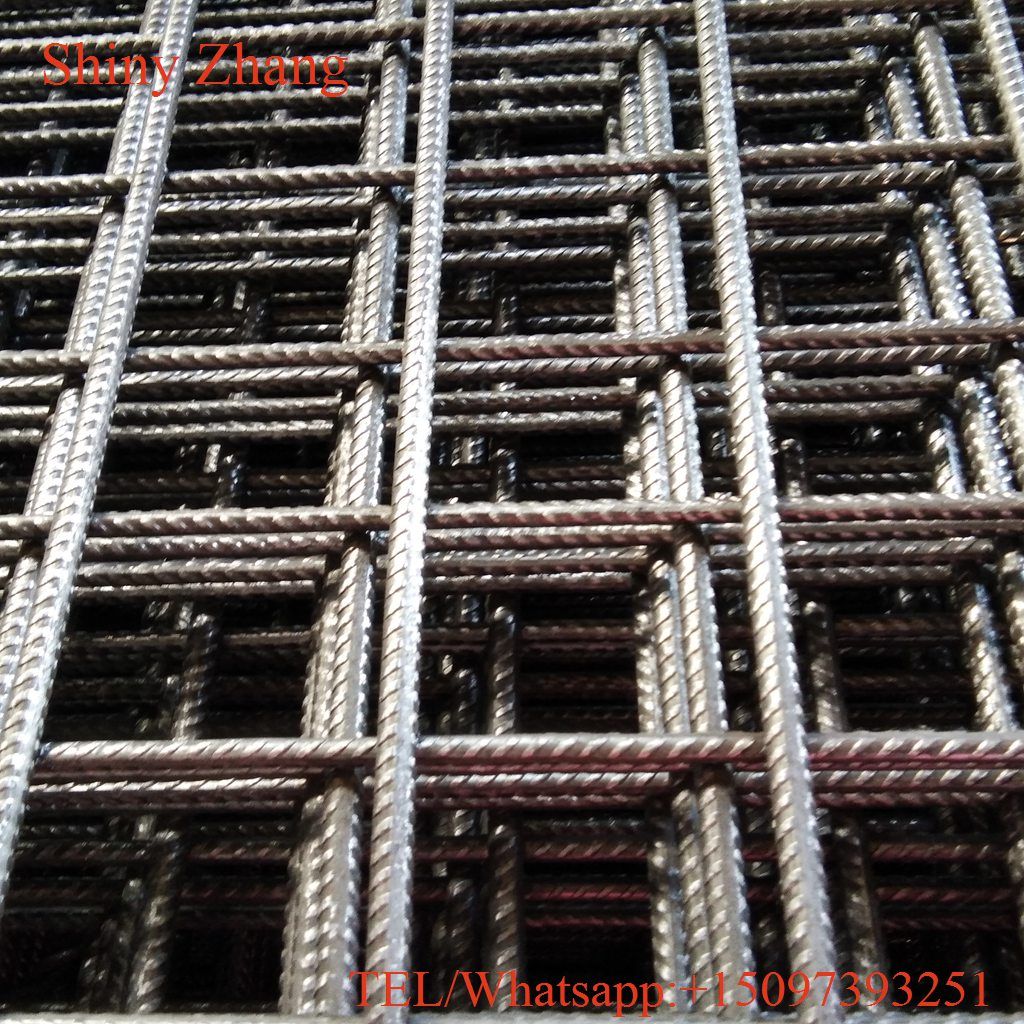

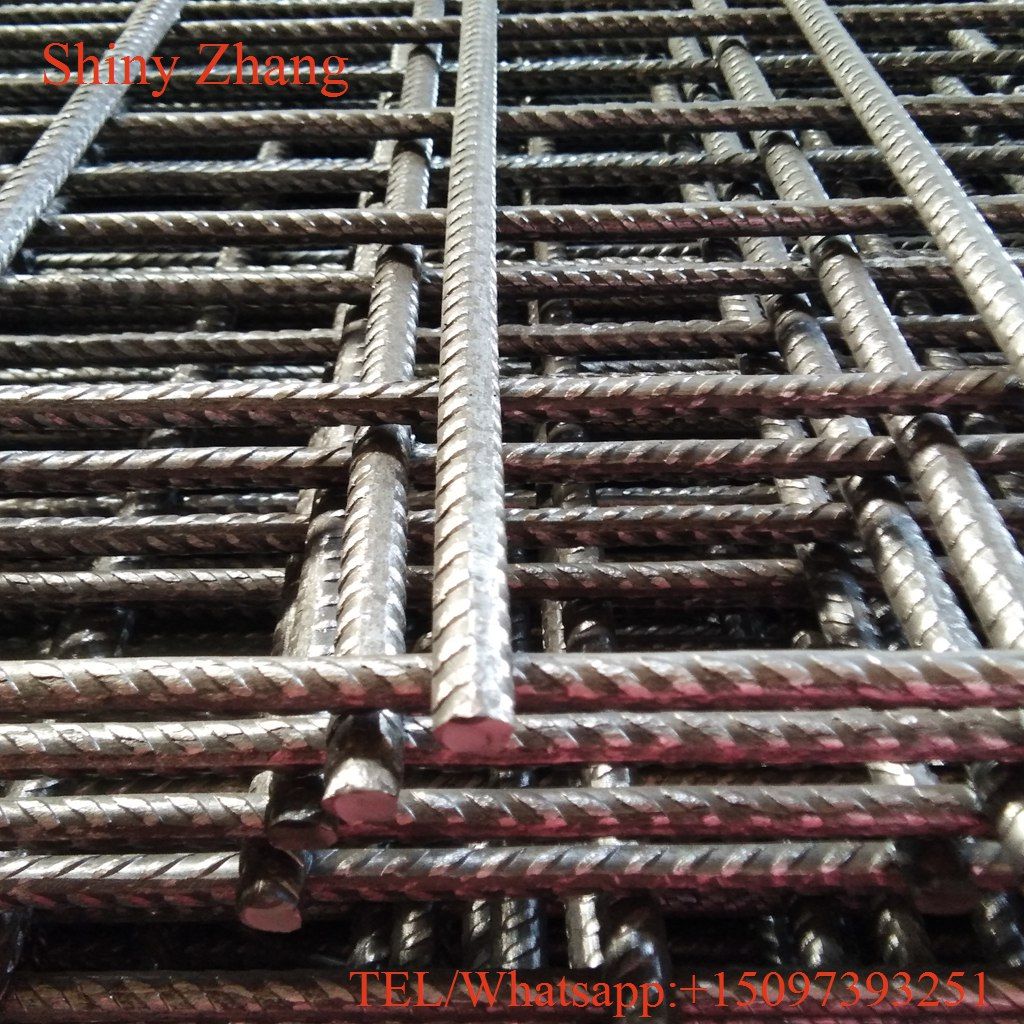

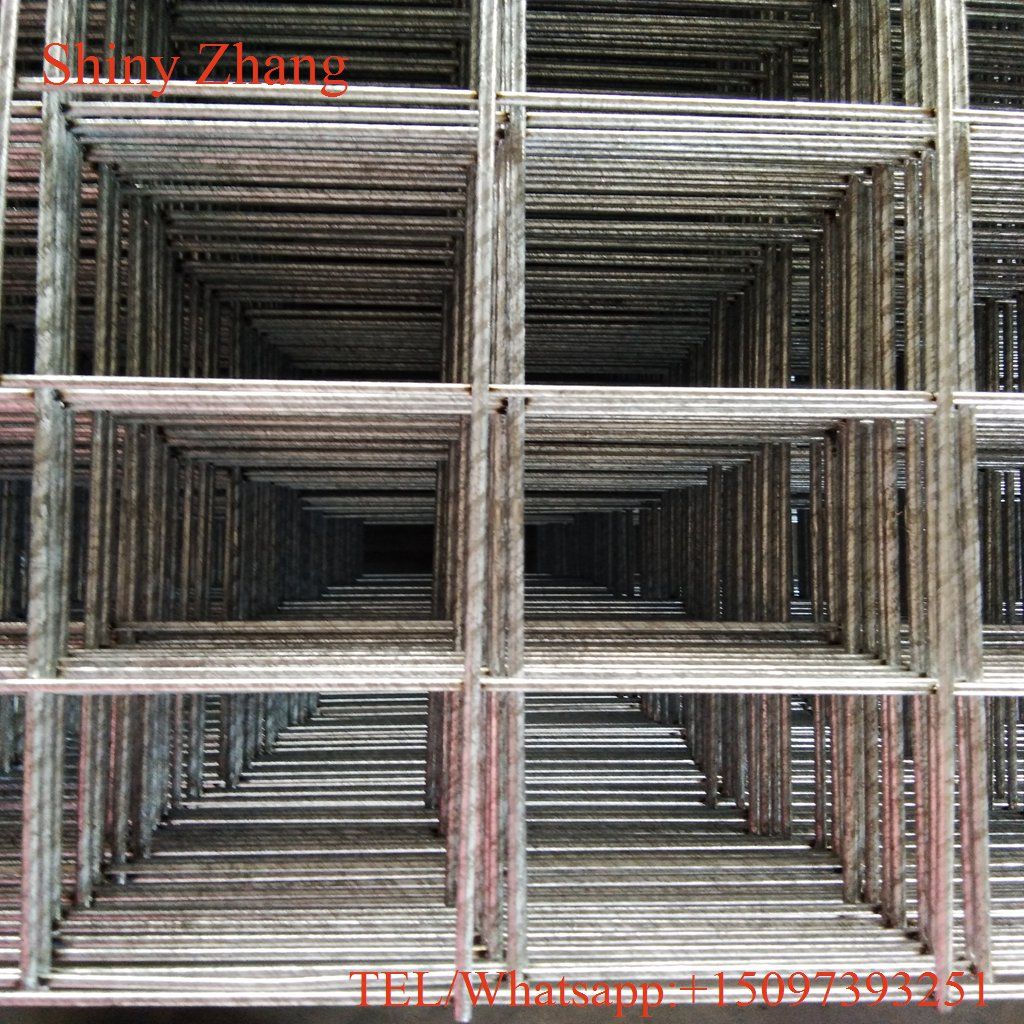

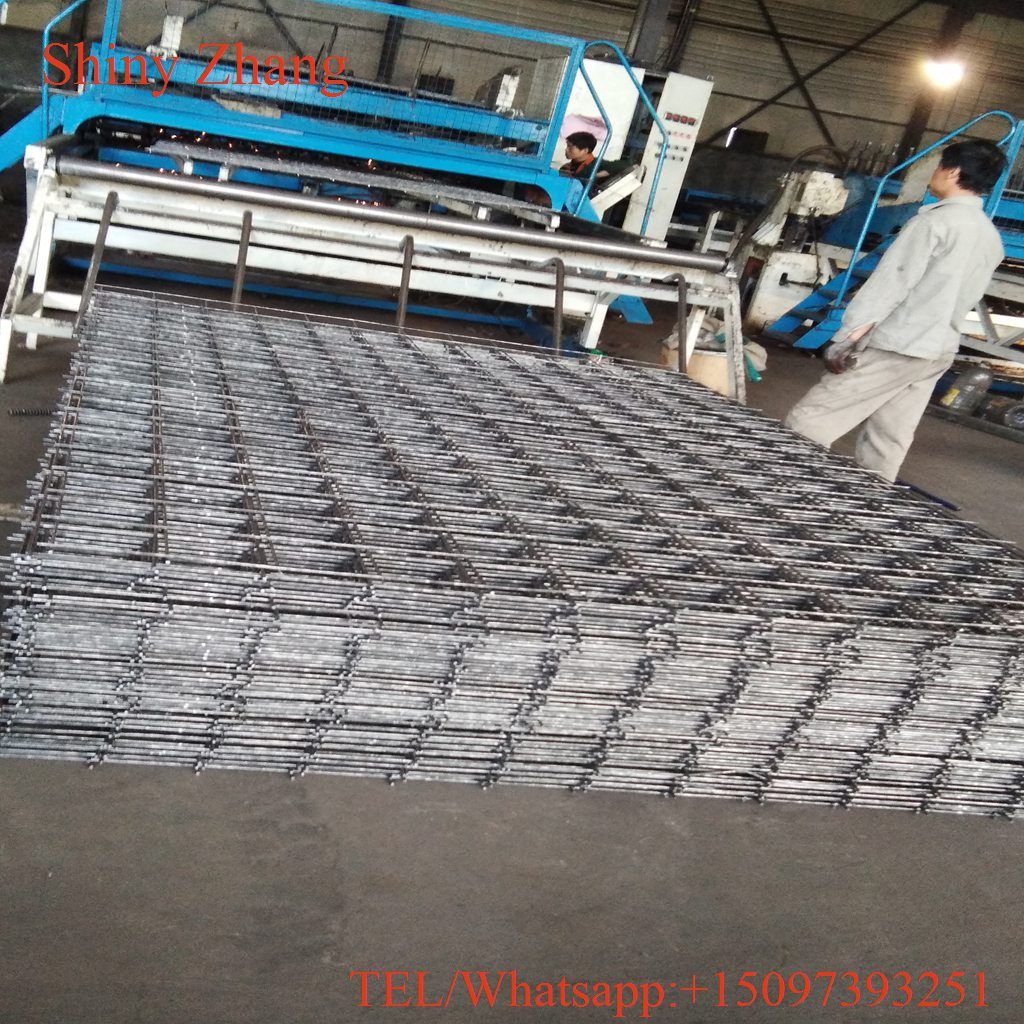

Picture Sight:
Anping Yaqi Wire Mesh Co., Ltd. Was founded in 2001. It is a professional enterprise in research and development, production and sales of various wire mesh and metal products, is a wire drawing, galvanized, meshes deep processing industry and trade integration of large enterprises.
We have advanced equipment, rich expertise and scientific production procedure, strict quality control system. During the past years, we have been striving to develop and improve ourselves. Our products exported to Europe, Southeast Asia, the Middle East and around the world, get high praise from domestic and foreign customers and an excellent reputation for superior quality.
Our main products are: Galvanized Iron Wire, PVC coated Wire, Binding Wire, Black Iron Wire, U Type Wire, Small Coil Wire, Cutting Wire, Barbed Wire, Hexagonal Wire Netting, Wire Mesh Fence, Welded Wire Mesh, Gabion Mesh, Square Wire Mesh, Crimped Wire Mesh, Expanded Metal Mesh, Razor Barbed Wire, Chain Link Fence, Grassland Fence, Window Screen, Perforated Meta, Hexmesh, Wedge Wire Screens, Filter Element, Filter Cylinders, Filter Discs, Test Sieve& Standard Sieve.
Our Faith is "Competitive Price, Good Quality and Efficient Service". We sincerely hope to build up good business relationship with you on the basis of mutual benefit.
