1. Product Description:

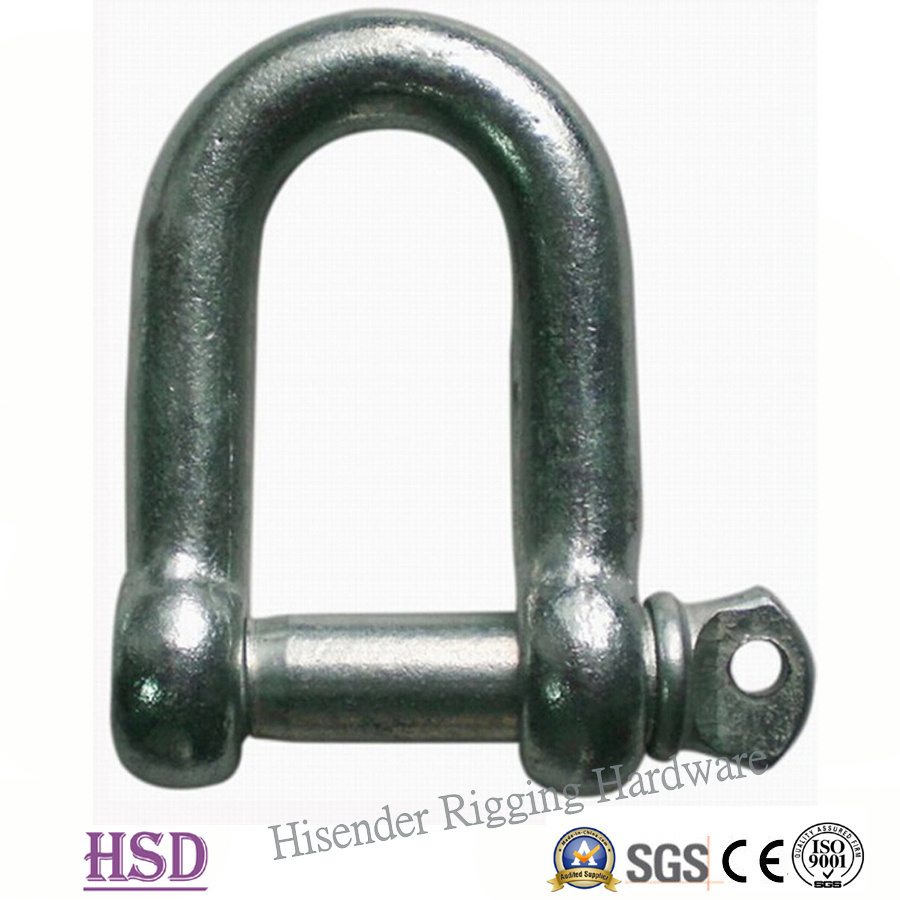

Model No.: self color European Trawling with Square Head Screw Pin Shackle.
Material: 45# steel /Q235/Alloy Steel.
Surface: Galvanized/ cself color.
Packing: gunny bag /carton+ iron pallet/wooden pallet.
| Nominal Size | B | D | L | dl | SWL | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| m/m | In | m/m | m/m | m/m | m/m | Ton | kg | kg | kg | Kg | kg | kg | kg | kg |
| 4.8 | 3/16 | 10 | 10 | 18.5 | 5 | 0.09 | 0.013 | 0.014 | 0.024 | 0.026 | -- | -- | -- | -- |
| 6 | 1/4 | 12 | 11 | 25 | 6.5 | 0.15 | 0.026 | 0.028 | 0.062 | 0.028 | -- | -- | -- | -- |
| 8 | 5/16 | 14 | 15 | 31 | 8.5 | 0.25 | 0.046 | 0.049 | 0.062 | 0.065 | -- | -- | -- | -- |
| 9 | 3/8 | 18 | 17 | 36 | 10 | 0.4 | 0.07 | 0.049 | 0.077 | 0.08 | 0.073 | 0.065 | 0.075 | 0.1 |
| 12 | 1/2 | 24 | 23 | 46 | 13 | 0.6 | 0.17 | 0.18 | 0.19 | 0.2 | 0.15 | 0.17 | 0.186 | 0.215 |
| 16 | 5/8 | 30 | 32 | 59 | 17 | 0.8 | 0.4 | 0.42 | 0.475 | 0.495 | 0.37 | 0.41 | 0.455 | 0.5 |
| 19 | 3/4 | 36 | 37 | 74 | 20 | 1 | 0.7 | 0.72 | 0.78 | 0.8 | 0.62 | 0.67 | 0.78 | 0.83 |
| 22 | 7/8 | 43 | 43 | 86 | 23 | 1.5 | 1.1 | 1.18 | 1.18 | 1.26 | 1 | 1.1 | 1.4 | 1.3 |
| 25 | 1 | 47 | 50 | 95 | 27 | 2 | 1.7 | 1.8 | 1.8 | 1.9 | 1.53 | 1.6 | 1.75 | 2.05 |
| 28 | 11/8 | 55 | 56 | 110 | 30 | 2.5 | 2.4 | 2.5 | 2.55 | 2.65 | 2.2 | 2.35 | 2.4 | 3 |
| 32 | 11/4 | 64 | 64 | 130 | 34 | 3.2 | 3.6 | 3.7 | 3.9 | 4 | 3.2 | 3.35 | 3.6 | 4.23 |
| 38 | 11/2 | 76 | 76 | 145 | 40 | 4.2 | 6 | 6.1 | 6.9 | 7 | 5.25 | 5.7 | 6 | 7.1 |
| 44 | 13/4 | 80 | 90 | 160 | 47 | 6.5 | 10 | -- | -- | -- | -- | -- | -- | 10.7 |
| 50 | 2 | 0 | 100 | 185 | 53 | 8 | 12 | -- | -- | -- | -- | -- | -- | 17 |
| 65 | 21/2 | 110 | 130 | 240 | 68 | 15 | 28 | -- | -- | -- | -- | -- | -- | 33 |
| 75 | 3 | 120 | 150 | 300 | 78 | 20 | 44 | -- | -- | -- | -- | -- | -- | 50 |
2.Quality Assurance:
Manufacture & Export :
We are professional Manufacturer & Exporter of kinds of shackles from 2002 .
Specilizing in Manufacturing :
European type, US Type, jis type , DIN8210 Type shackle .
Mainly export to :
European countries, USA, Canada, Australia, Japan Korea,Singapore and so on.
Capacity :
We have our own factory and we can control every step ourseves .
3.Service Assurance :
Free Samples for provided if needed .
Accepting Designated Inspections if needed .
All enquiry can be reply in 4 hours .
Waiting for our pleasure cooperations.
If needed , free samples can post you for check and test .
Give us a chance , we will do it much better !
