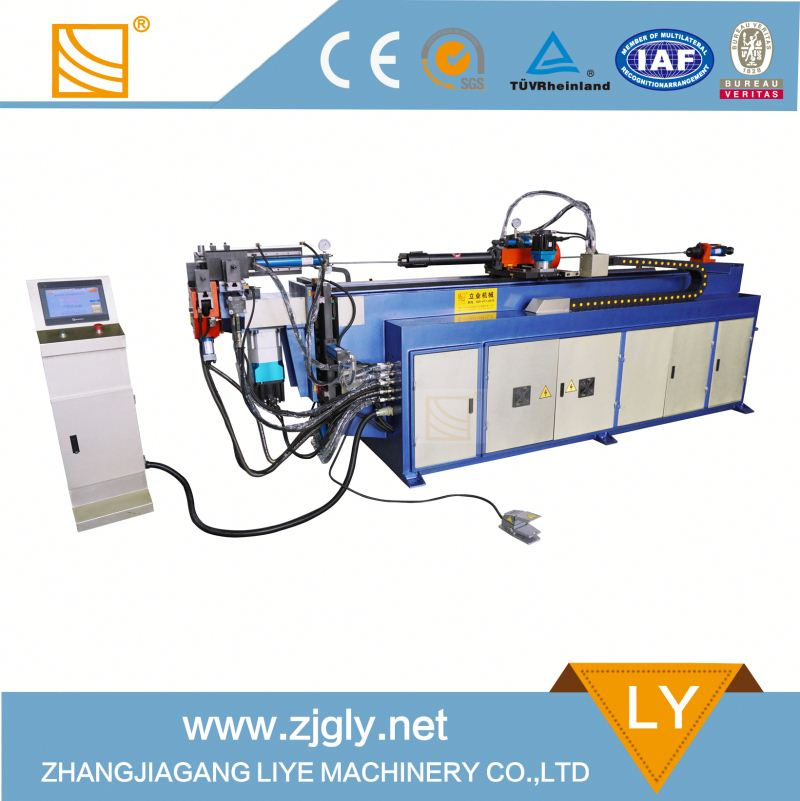

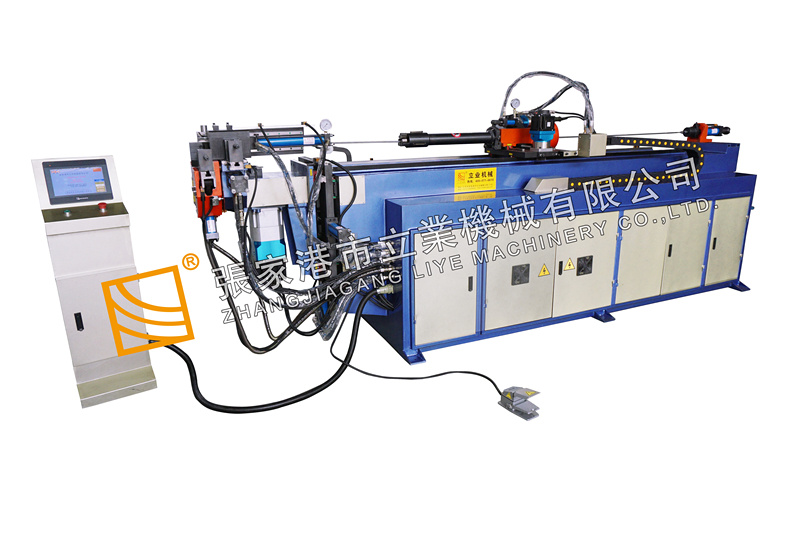

Product description

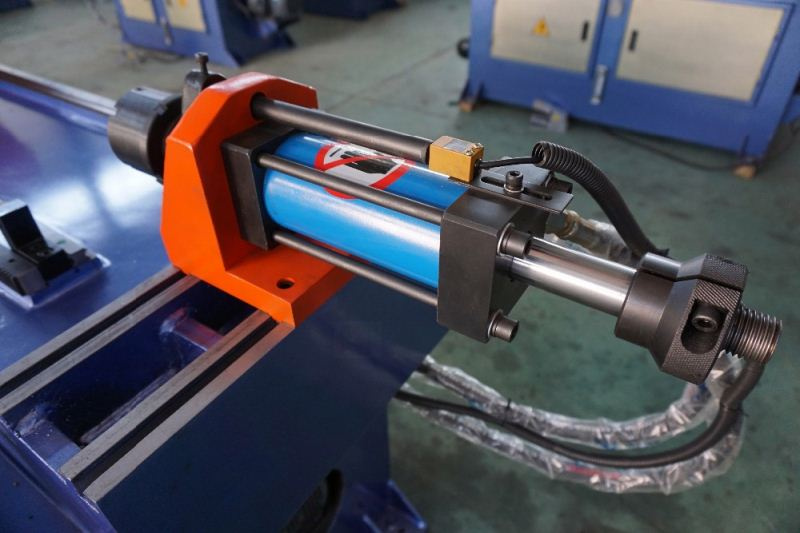

Detail
Specification| Model | |
| Specification | DW38CNCx3A-2S |
| Maximum bending pipe diameter x thickness ( steel ) | Φ38mm×2mm |
| Maximum bending radius(1) | R180mm |
| Minimum bending radius(2) | According to the pipe diameter |
| The largest bending angle | 190° |
| Maximum feeding length(3) | 2500mm |
| Feeding method | Direct feeding/Clamping feeding |
| Bending speed | Max150°/s |
| Working speed Rotary speed | Max200°/s |
| Feeding speed | Max 1000mm/s |
| Bending precision | ±0.1° |
| Accuracy Rotary precision | ±0.1° |
| Feeding precision | ±0.1mm |
| Information inputting method | 1.Axis(X Y Z) 2.Working value(Y B C) |
| Bending method(4) | 1.Servo bending : 5KW
(more than 3 axis)
2.hydraulic bending |
| Power of ratary servo motor(5) | 750W |
| Power of feeding servo motor(6) | 1KW |
| Max ellbow bending pipe | 18 |
| Max storable sections | 200 |
| Motor power | 4kw |
| Max hydraulic pressure | 12MPa |
| Weight of machine | 1500Kg |
| Measurement size of machine | 3860×780×1200mm |
Parts brand

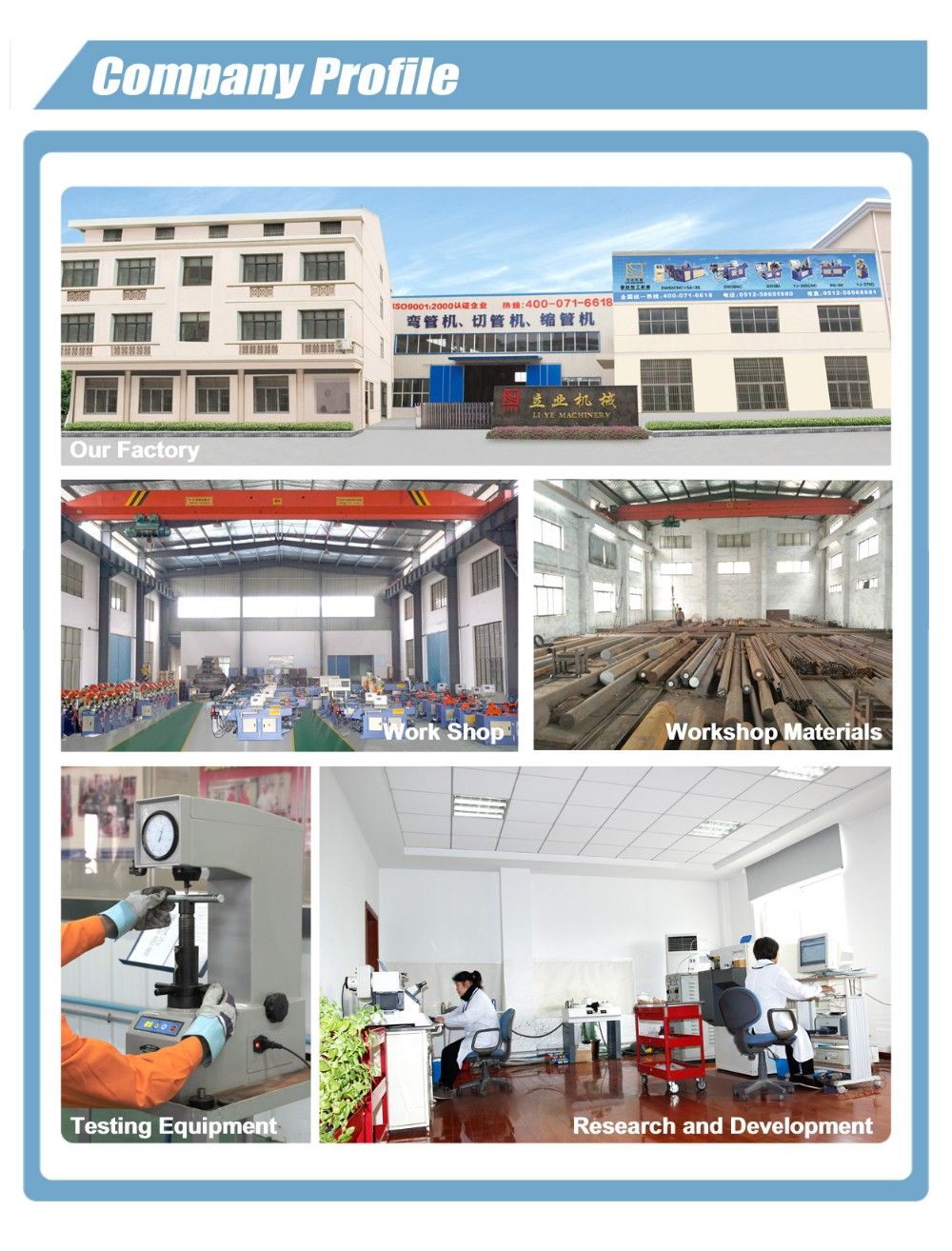

company information
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10,000 m2 with total assets of over CNY 20 million. The main products include 9 series and over 100 models, i.e. pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
Our company is an entity factory.The company has a mature team about production, product research and development, and product inspection.Our products update faster .We can design or improve new type of machine to meet different customer needs.
Packing and shipping
Zhangjiagang Liye Machinery Co., Ltd. (hereinafter referred to as the "Company") is specialized in manufacture of machining equipment for metal pipes. The Company covers an area of more than 10, 000 m2 with total assets of over CNY 20 million.
The main products include 9 series and over 100 models, i. e. Pipe machining line, pipe cutter, pipe bender, pipe end forming machine, chamfering machine, gear grinding machine, riveting machine, arc machine and bending press.
The technical performances of various machines reach national and international advanced level. The Company pays great attention to quality and technology content of product. The Company, since establishment, has developed over 60 new products and obtained several proprietary technologies. The Company has been certified by ISO9001: 2000 Quality System, CE, TUV, SGS and BV, etc.
The products are widely applied in leisure chair, tent and flower shelf, tourism products, steel furniture, automobile, motorcycle, bicycle, children's bicycle and bed, aero seat, air conditioner, petrochemical industry, bathroom accessory, pipe, iron machining, etc. They are ideal machining equipment for cutting, shrinking & expanding, bending and riveting pipes of various kinds.
The Company has manufactured pipe machining equipment for more than ten years with strong technical force and development force. The Company is capable of manufacturing over 1, 000 sets of machine tools including high-grade pipe bender. The products are featured by excellent performance, high quality and perfect service and are sold both at home and abroad, including countries and regions in Europe and America, Middle East and Southeast Asia with good praise from clients.
The Company has established many offices and sale points around the world and formed pre-sales consultation, after-sales services and web-based service websites, providing new and old clients with fast and high-quality services.
The Company abides by the operation principle of "quality first, client oriented and honesty based" and sincerely welcome new and old clients. The staff of the Company will provide all-round services to you.
