| Price: | US $ 4500-7000/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |
Product Description

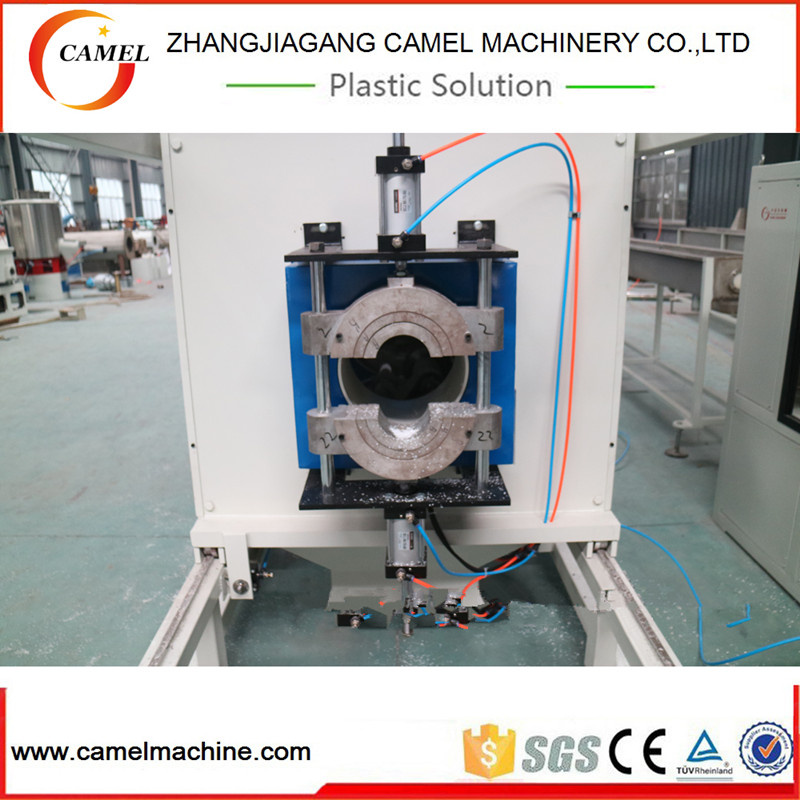

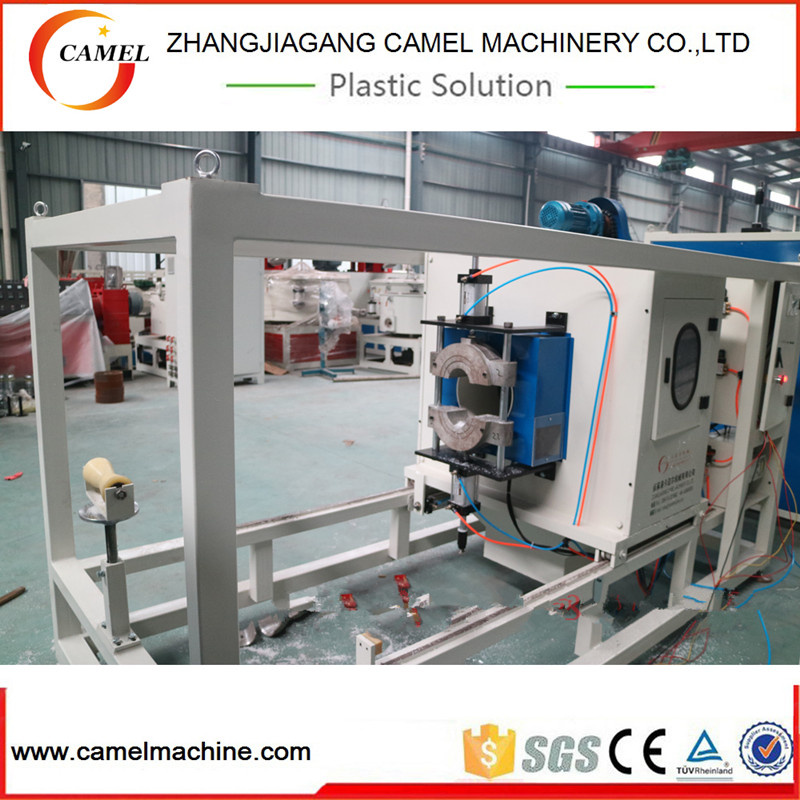

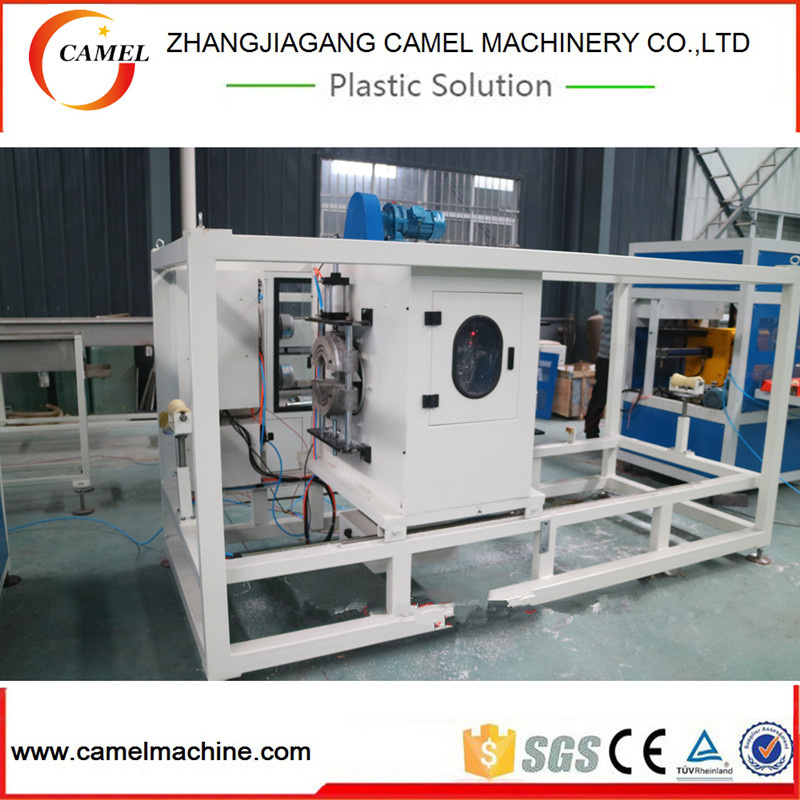

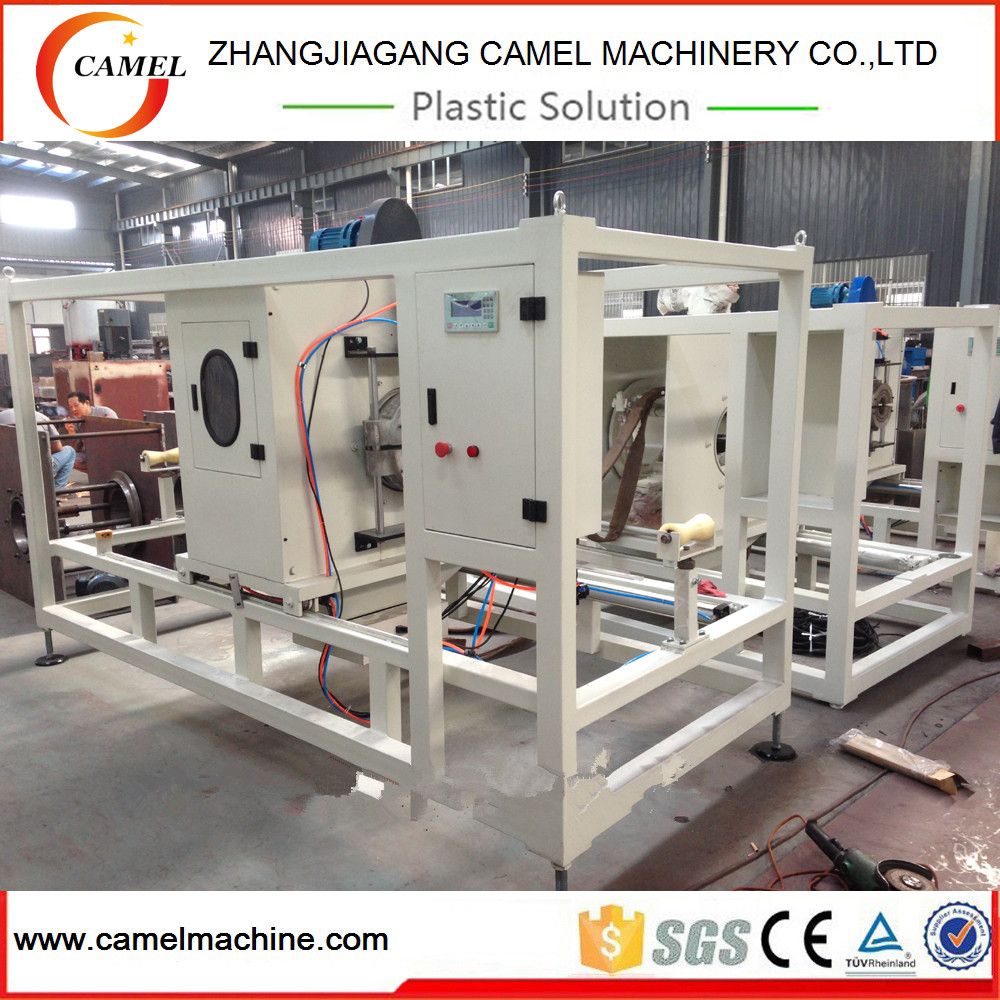

1. This machine is mainly used for non bits cutting for PVC, PE, PPR tubes. The sectional surface of the cut
products are quite plane and smooth, it can save raw material. Cutting of finished products can be
2. conducted on the production line at any time and synchronously. It may also cut the finished products not
on the production line but with the sample at any time, the cutting is stable and noiseless.
Main Technical Parameters of PE pipe planetary cutting machine:
| model | SQG250 | SQG315 | SQG400 | SQG500 | SQG630 |
| Pipe diameter mm | Φ50~Φ250 | Φ90~Φ315 | Φ110~Φ400 | Φ160~Φ500 | Φ250~Φ630 |
| Pipe thickness mm | ≤25 | ≤30 | ≤35 | ≤45 | ≤50 |
| Saw diameter mm | Φ150 | Φ180 | Φ180 | Φ180 | Φ200 |
| Journey mm | 1200 | 1200 | 1500 | 1500 | 1500 |
| Cutter motor power KW | 1.5 | 2.2 | 2.2 | 2.2 | 3 |
| Revolution motor power KW | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
| Dust collector motor power KW | 0.75 | 0.75 | 0.75 | 0.75 | 0.75 |
| Feed blade motor power KW | 0.18 | 0.25 | 0.25 | 0.25 | 0.37 |
| Prod Model: | SQG400/SQG500/SQG630 |
|---|---|
| Suitable For Material: | PP PE UPVC |
| Rated Power: | 7.5kw |
| After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
| Product Name: | PE Pipe Planetary Cutting Machine |
| Working Mode: | PLC Control |
| PLC: | Siemens Brand |
| Pipe Diameter: | 50-250 |
| No-Load Rotational Speed: | 200m |
| Saw Blade Diameter: | 610mm |
| Voltage: | 380V |
