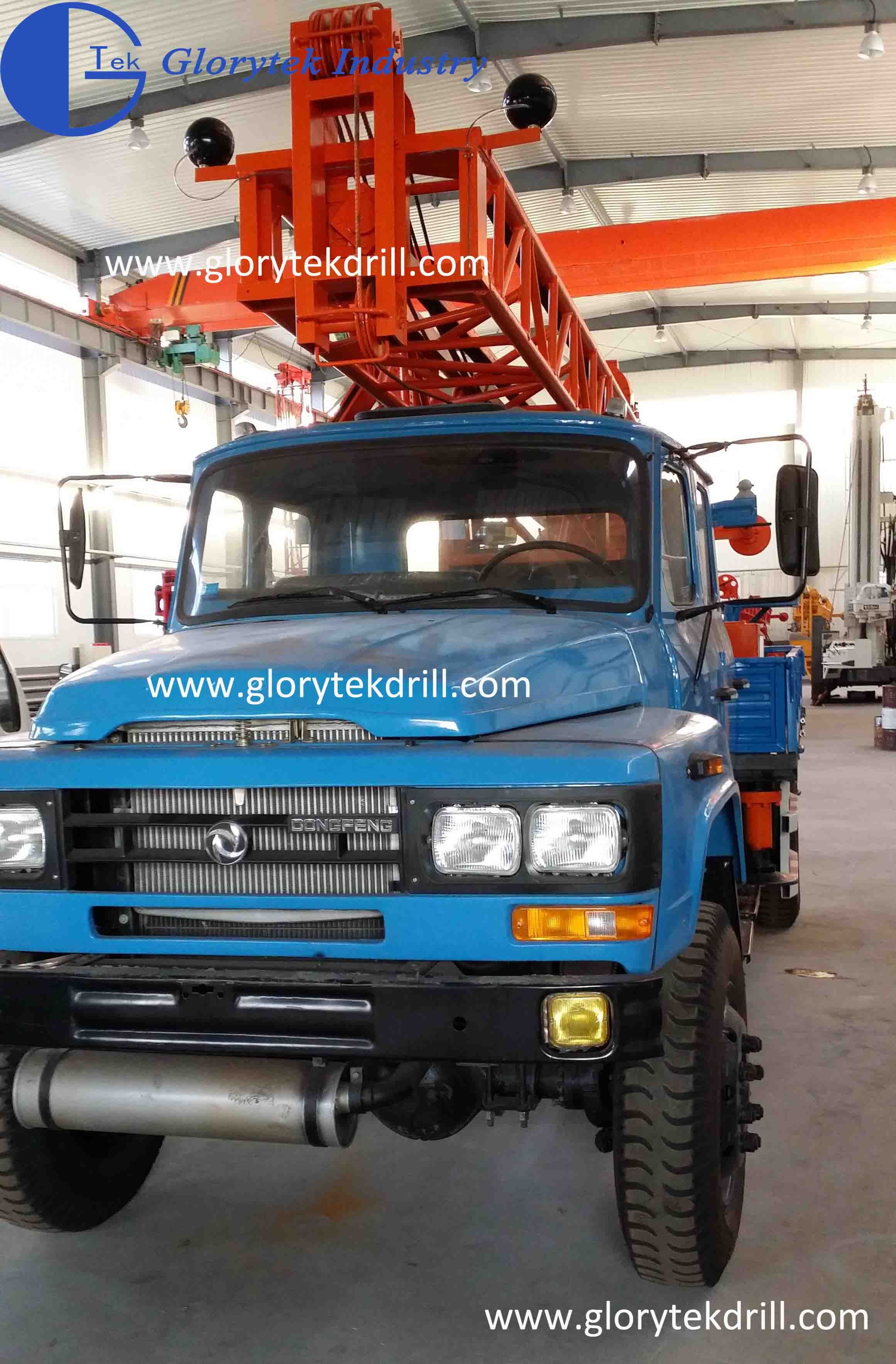

Durable Truck Mounted Drill with Four-Wheel-Driven

Durable Truck Mounted Drill with Four-Wheel-Driven
Price: US $ 10000/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Name: High Pressure Drill Rig
Drive type: Diesel drive or Electrical drive, subject to the requirement of clients.
Feature: Pneumatic rock drilling, Multi-angle drilling, Powerful grade ability, Self-leveling, Flexible,
Fast rotary speed, drill rod connected automatically
Application: Relatively fixed working place and level ground in the conditions of electric power supplying
Available. Be suitablefor the medium and large mining areas in the productivities of500, 000m3annually,
Matching device: Diesel generator, lengthened drilling frame, Dry type deduster.
Diameter152-230mmGround pressure0.05Mpa
Depth of hole11mor27.5mGrade ability15
Drilling angle75  90 Air pressure1.05-2.5Mpa
Rock rigiditymore than f=6-18Air Consumption12-26 m3/ min
Rotary speed24/33/49r/minVoltage380V
Swing torque2430/2340/2080N.mCapacity70kw
Push pressure(end of hole)4100-19000NMax power under drilling24.5kw
Once feed distance9mMax power under traveling22kw
Lift up speed16m /minDrilling rate2-3 times faster than the speed of low pressure drill rig, capable to drill the hole at the speed of 16-26m/h with the rock rigidity f=6-18
Capacity of lift up25000NWorking status(dimension)6590*3125*12900mm
Drill rod diameter133mmTransportation(dimension)12000*3125*3865mm
Drill rod length9mTotal weight16.5t
Traveling speed1km/hDust collectiondry or wet

Product Description

1. Feature
1. Drill head style with large torque and lifting force;
2. Multiple purposes and multiple functions drilling;
3. Large drill head inside diameter available for many robs;
4. It can drill with mud drilling and air drilling method;
5. Special designed rod structure makes it easy to connect and disconnect;
6. Easy operation and maintenance, high reliability and long service life;
7. Modular design appropriate rods and pumps provided for clients.

2.  Application
1. Drilling wells for urban and rural life.
2. Drilling wells for agricultural irrigation and industries.
3. Drilling for geotechnical survey.
4. Drilling geothermal pump wells.
This s one best selling drilling machine in the market, very well received by users for the good quality but low price

1. Compact structure with small truck, very easy to move and transport.

2. Multi functional drilling rig, can be used for water well drill, coring drill, rock sampling, geological investigation&exploration, geothermal well drill, etc.

3. Strong drilling ability, can drill through any materials, including hard rock, rock, cobble, gravel, clay, soil, etc

4. Hydraulic system, convenient to operate.

5. Diesel engine for power, can be used in any area, especially where is not available for electricity.

Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.




Customers visit our factory

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.

Prod Model: GL-II
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Depth Of Hole: 11m or 27.5m
Rock Rigidity: More Than F=6-18
Rotary Speed: 24/33/49r/Min
Swing Torque: 2430/2340/2080n.M
Push Pressure(End Of Hole): 4100-19000n
Once Feed Distance: 9m
Lift Up Speed: 16m/Min
Capacity Of Lift Up: 25000n
Drill Rod Diameter: 133mm
Traveling Speed: 1km/H
Usage: Water Well
Power Type: Diesel
Condition: New
Type: Drilling Machine
Glorytek Industry (Beijing)Co., Ltd., located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering, underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers.

Scope of products:

Blasthole Drilling Rigs
1: Compressor Integrated Type
2: Compressor Separated Type

Water Well Drilling Rigs
1: Truck Mounted Type
2: Crawler Type
3: Trailer Type

Piling Machinery
1: Rotary Drilling Rigs
2: Anchor Drilling Rigs
3: Auger Drilling Rigs

Drilling Auxiliaries
1: DTH Hammer and Bits
2: Button bit, Chisel bit, Cross Bits
3: Drill Pipe or drill Rod
4: Tricone Bits
5: PDC Bits
6: Downhole motor or Mud Motor
7: Pumps
