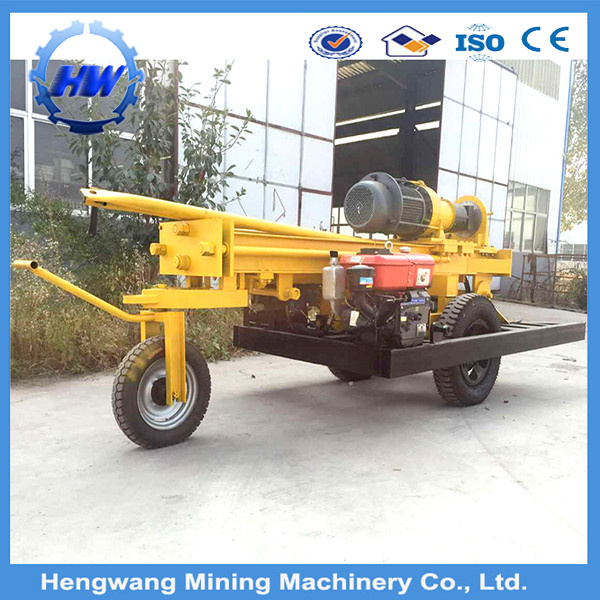

DTH Hard Rock Drilling Rig Machine Factory Price

DTH Hard Rock Drilling Rig Machine Factory Price
Price: US $ 5000-8000/Set
Min Order: 1/Set
Pay Type: T/T,Western Union
Hydraulic DTH Hard Rock Drilling Rig Machine Blast HoleDrilling rig

Features:

1.High drilling efficiency, power provided by energy saving motor
2.High efficiency, large rotary torque
3.Simple structure and easy to move
4.Adopt consummate design, long service life
5.Easy to operating

Introductions:

HQZ100B core drill rig is a high adaptability pneumatic DTH drill rig, with the characteristic of simple structure, easy operation and energy saving.  It can also drill vertical and horizontal blast  holes   in the fields of mines,national   defence,  water conservation,  road building and
stonework.  It has low center of gravity and its detachability is good.
It is essential for open mining drilling equipment, especially for the other drill rigs that do not work in the uneven rugged terrain;  It is with the characteristic of compact structure,  easy operation,
fast cutting speed, high efficiency, good removable.

Technology Parameters

 Specification of HQZ100B Core Drill Rig:

Dia of The Hole

80-100mm

Depth of The Hole

≥20m

Rotation Speed

0-84rmp

Working Pressure

0.5-0.7Mpa

Specification of Drill Rod

60*1000mm

Air Consumption

≥7m3/min

Lifting Power

9600N

Weight

500KG

Motor Power

4KW

Matched Portable Diesel Piston Air Compressor:

Model

CVFY-9/7

Capacity (m³/min)

9

Working Pressure (Mpa)

7

Weight (kg)

2200

Dimension (mm)

2800*1500*1850

Specifications of Other DTH Drill Rigs:

 Model

Hole Diameter

Hole Depth

Working Pressure

Air Consumption

Remark

(mm)

(m)

(MPa)

(m3/min)

HQZ70

60--80

≥15

0.5-0.7

≥3.5

3kw

HQZ90

80--100

≥20

0.5-0.7

≥6

4kw

HQZ100

80--100

≥20

0.5-0.7

≥6

4kw

HQZ100B

80--100

≥20

0.5-0.7

≥6

4kw

HQZ120B

80-100

≥20

0.5-0.7

≥6

5.5kw

HQZ145B

90-130

≥50

0.7-1.4

≥12

7.5kw

HQZ155B

90-130

≥50

0.7-1.4

≥12

7.5kw

HQZ165

90-150

≥50

0.7-1.4

≥15

11kw


Sally

Mobile+8613608916725

Tel: 0086-537-2882968

Jining Hengwang Mining Machinery Co., Ltd.
Prod Model: HW-150
Dia Of The Hole: 80-100mm
Depth Of The Hole: ≥20m
Rotation Speed: 0-84rmp
Working Pressure: 0.5-0.7MPa
Specification Of Drill Rod: 60*1000mm
Air Consumption: ≥7m3/Min
Lifting Power: 9600n
Weight: 500kg
Motor Power: 4kw
Capacity (M³/Min): 9
