DTH Hammer Top Sub Detach Dismantle Tool

DTH Hammer Top Sub Detach Dismantle Tool
Price: US $ 1800-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram

Specifications
1. For disassembling the dth hammer
2. Easy operation
3. Low cost
4. For 3" to 30" hammers
5. CE certificate
DHT Hammer Breaout Bench from Xiamen Bestlink factory co., Ltd.

The threaded connections of the driver chuck and top sub may become very tightly tensioned during drilling. It is convenient to break the hammer threads on the rig, but if the threads cannot be loosened or tend to get stuck, a breakout bench is the solution.

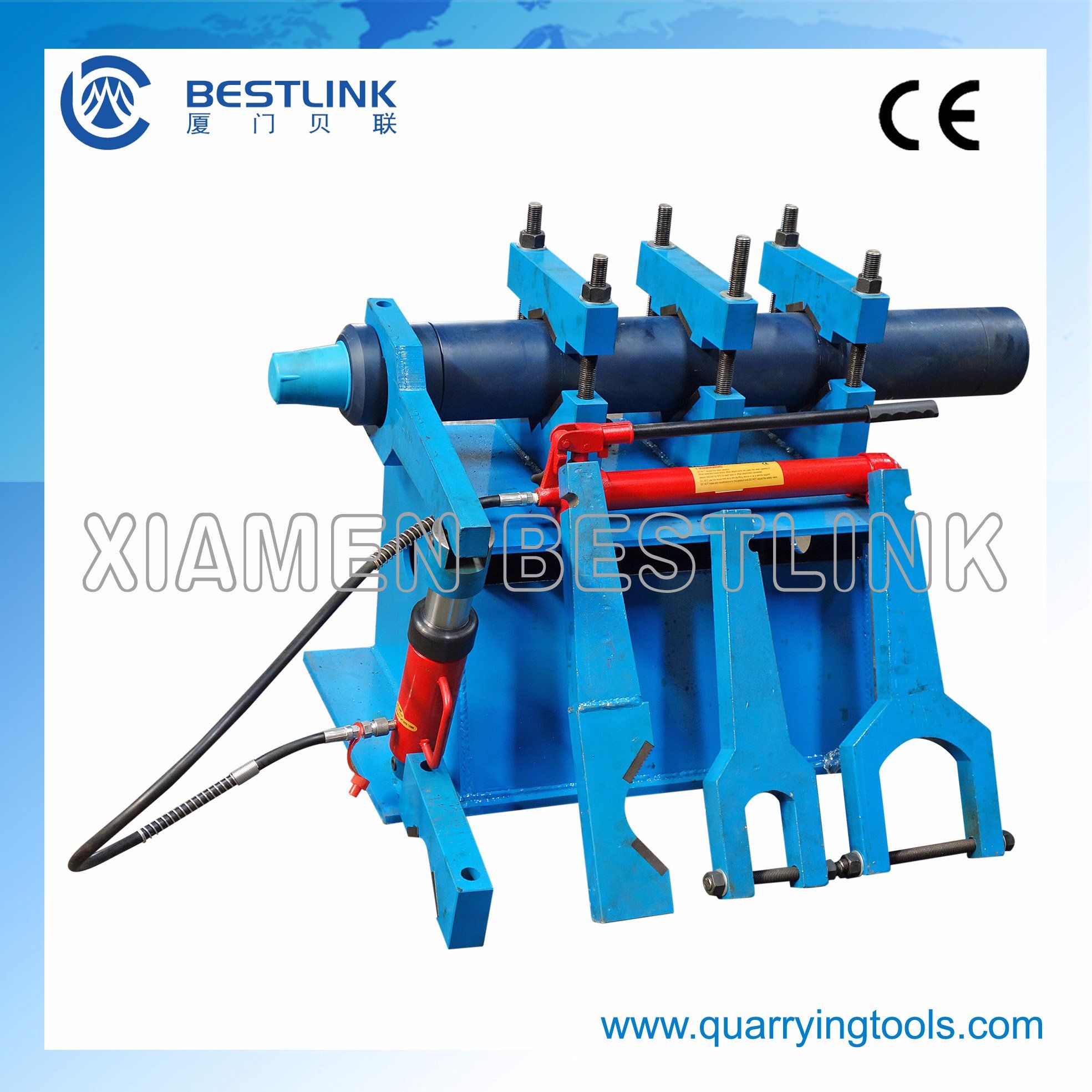

This handy but powerful breakout bench can easily be placed in a workshop or container and it breaks DTH hammers between 3-8".
The breakout bench is available in two designs, one for 3-5"hammer, and another for 6-8" hammer.
Note! ! ! The breakout bench is delivered with wrench keys.

The operation method as below:
1). Put hammer on the bench.
2). Adjust the position of the hammer and wrench; Use wrench to block the top sub side of hammer; Let wrench and jack in the same face.
3). Fix K-shaped base with nut.
4). Fix wrench with nuts.
5). Shake handle of jack slowly till top sub away from hammer.
6). After top sub dismantled, grease the jack, release nuts, discharge the K-shaped base and turn around the hammer.
7). Adjust the position of hammer and wrench; Use wrench to block the drive chuck of hammer; Let wrench and jack in the same face.
8). Fix hammer
9). Fix K-shaped base and the wrench with nut.
10). Shake handle of jack slowly till drive chuck away from hammer

Model
BLHB-5BLHB-8
Operate hammers3-5"6-8"
Length920mm1100mm
Width510mm620mm
Height875mm875mm
Weight200kg230kg
Spare parts listPart No
3-5"6-8"
Compressing JackCCX-01CCX-01A
Upper lock blockCCX-02CCX-02A
Lower lock blockCCX-03CCX-03A
Wrench JackCCX-04CCX-04A
Oil PumpCCX-05CCX-05A










Prod Model: BLHB-8
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Blue
Brand: Bestlink
Loading Port: Xiamen
Usage: DTH Hammer Disassemble
Xiamen Bestlink Factory Co., Ltd.Is committed to providing the best drilling and cutting machines, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project.Our company is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones in China.

Since 1985, we have produced and supplied high quality Split AG Non-Explosive Demolition Agent to our worldwide customers in the quarrying and demolition industries.

From early 2000, we have made a start in the study and developed the Hydraulic Rocks and Concrete Splitters by patent inventions, and reached a great success in the domestic and overseas market.Now, we are only a producer and exporter just now from China.

In 2004, we developed and produced the patented products:Hydraulic Rock Drill, Stone holes Groover, Stone Crack Expander and Hydraulic Rock Breaker.We offer a vast range of hydraulic and pneumatic drills and machines for diamond wire cutting as well as all kinds of accessories for quarrying activities.

Now, quality products are being exported to more than 45 countries and regions all over the world including the USA and Europe with high reputation.

We are continually looking for ways to develop drilling and cutting technology for quarrying and demolition, and hoping to be the world No.1 company about quality and prices of hydraulic Splitters and Expansive Cement within 5 years.Thank you very much for your support and wish to get your deep interest and be your best partner.
