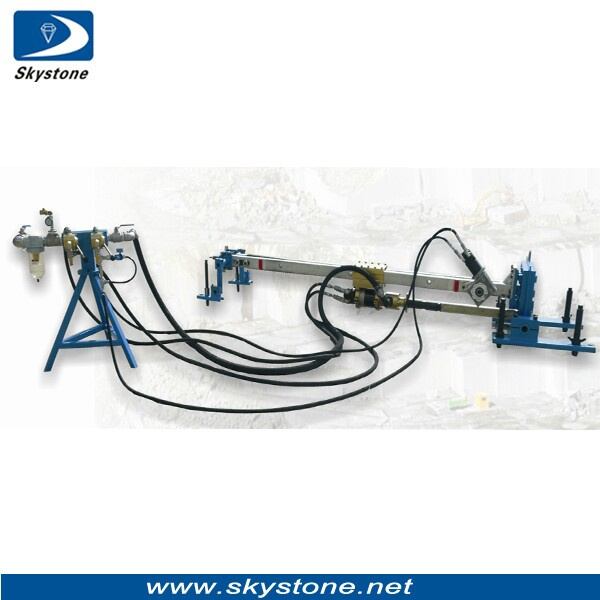

The TSY-DH90-P drill is a new model drill we developed specially used for stone quarry and the drill hole can be different diameter, depth, multi-orientation & angle. Now it is indispensable for mine quarrying, stone dynamite and diamond wire passing.
The characters of the drill:
1. Light weight, easy installation and transportation;
2. The high quality pneumatic components ensure lower energy & air consumption and high efficiency
3. The good hoisting ability
4. The particular mechanical tube devices for screwing and discharging to reduce the labor intensity
5. The Particular design for guiding drilling
Remark:
The total weight of machine is 800kg ( including 20 drill rods and 1 bit, 1 down the hole hammer )
Technical Parameter
| Model | TSY-P90 |
| Air consumption | >=10m3/min |
| Working air pressure | 0.6-0.8Mpa |
| Depth of the drill hole | 30m |
| Diameter of the drill hole | 90-100mm |
| Drill speed | 5-10m/h |
| Single Feeding distance | 1.5m |
Skystone Diamond tool company was founded in 1992, Quanzhou city, Fujian province. In 2003 the company headquarter was moved to Fuzhou High-tech area. During more than 10 years development, we continuously strive to technology innovation and strict quality control, gaining much experience in diamond tools production. Meanwhile, we have trained many creative researchers and company managers with innovation spirit.
We began to research diamond wire technology in 2000. After years of hard working, we succeeded in making high quality diamond wires. What' S more, we have our own special advanced technique for diamond wire muanufacture. Until now, we have a complete series of diamond wires as quarry operation, blocks dressing and cutting, multi-wire cutting, special shaping cutting and concrete building cutting etc...
