Double Mitre Precision Saw for Aluminum Windows and Doors

Double Mitre Precision Saw for Aluminum Windows and Doors
Price: US $ 6000-9600set
Trade Terms: FOB,CFR,CIF
Min Order: 1set
Pay Type: L/C,T/T,D/P,Western Union,Money Gram

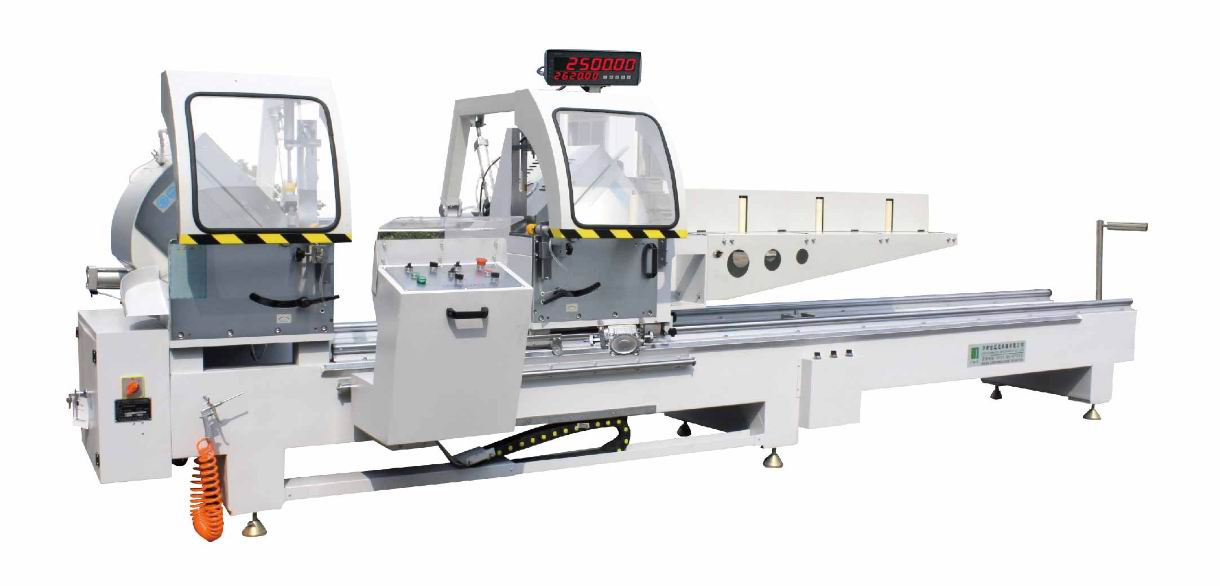

LJZ2-500x4200 CNC Double-head Precision Cutting Saw for Aluminum Profile:

1. Features
Used in aluminum door & window and curtain wall profile cutting. Feature Adopt NC technology, and automatically finish various sizes of profile cutting. Right saw head motion adopts high-lead ball screw motion, with high transmission accuracy, accurate locating, and balanced work. Serial optimized length date can be input at the same time to realize continuous cutting. Mishap auto-induction material pulling rack and right-head compliant material pulling rack give convenient and reliable profile location and clamp. Imported digital display system automatically displays cutting length size and quantity; repeated orientation, high precision, easy to operate. High tool motion precision and high quality cutting due to linear motion pair used in machine guide and feeding device. High precision and good stability due to input linear guide motion pair in feeding device. High precision principal axis special for machine tool makes blade operate stably. Uniform speed feeding and smooth motion due to hydraulic damping cylinder. Double saw head automatically realize cutting angle transformation between 22.5°(standby),45°and 90°profiles. Imported carbide saw blade gives high quality of cutting section and high endurance. Self-opening protective cover makes cutting safe and convenient.

2. Technical Data
Model:                   LJZ-CNC-500X4200
Power supply:            380V/50HZ ro customised
Input power:             6.5KW
Air pressure:             0.5-0.8Mpa
Blade rotational speed:    3100r/min
Saw blade specification:   D=500MM  d=30mm
Cutting length:           Min.380mm, Max.4200mm
Cutting angel:           90°  45°  22.5°  (67.5°)
Outside dimension:      5700x1750x1990mm
Weight(about):          1900kgs

Contact person: Ms. Sailing He
Mobile: +86 18005318120
Prod Model: LJZ-CNC-500X4200
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model: Ljz-CNC-500X4200
Power Supply: 380V/50Hz or Customized
Input Power: 6.5kw
Air Pressure: 0.5-0.8MPa
Blade Rotational Speed: 3100r/Min
Saw Blade Specification: D=500mm D=30mm
Cutting Length: Min.380mm Max.4200mm
Cutting Angles: 90 45 22.5(67.5)Degree
Machine Size: 5700X1750X1990mm
Weight: 1900kgs
Since established the company, relying on its mighty real development strenght, advanced management mode, and excellent officers and workers, becomes gradually the professional enterprise with the produces, profession management, sale and after-sales services in a whole. Now our equipments has been exported to many foreign countries. New generation alumi doors and windows that company develops and research concentrates on the industrial development in building materials in Chinese chemistry, can produce the every kind of products with such good functions as elegant appearance, varied colors, soundproof, watertightness and etc. And it can satisfy aluminum and pve doors and windows and insulating glass machine's building requests, improved the Chinese living environment.
