Home Toolbuy Products DIN3352 F4 Pn16 Resilient Seated / Rubber Wedge Non-Rising Stem Cast Iron Gate Valve of Flange / Knife / Socket / Wafer Type

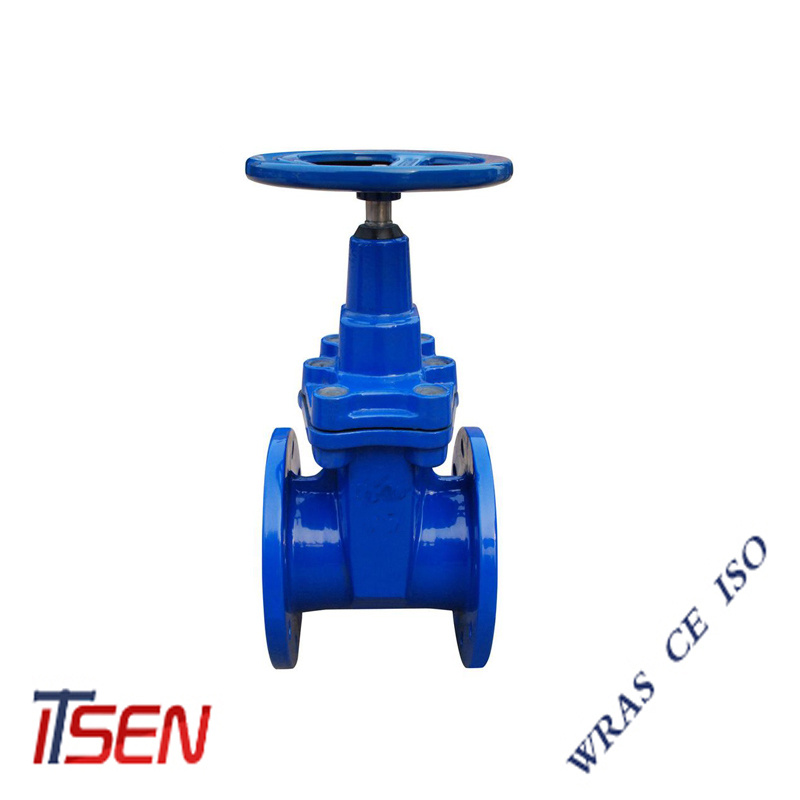

DIN3352 F4 Pn16 Resilient Seated / Rubber Wedge Non-Rising Stem Cast Iron Gate Valve of Flange / Knife / Socket / Wafer Type

DIN3352 F4 Pn16 Resilient Seated / Rubber Wedge Non-Rising Stem Cast Iron Gate Valve of Flange / Knife / Socket / Wafer Type
Price: US $ 8-120/Piece
Min Order: 5/Piece
Pay Type: L/C,T/T,D/P,Western Union

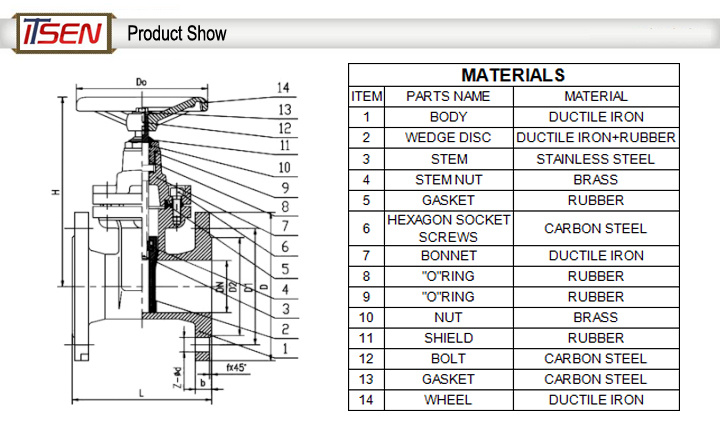

DIMENSIONS(mm)
DNLDD1D2bZ-dfHKG
4014015011088184-18320510.7
50150165125102204-18321211.7
65170185145122204-18323812.8
80180200160138224-18325815.5
100190220180158228-18331522.2
125200250210188248-18339834.5
150210285240212248-23342641
200230340295268268-23349863.4
2502503953503202812-233598105.2




Q.  Do you provide samples?Is it free or extra?
A:  Yes, we could offer the sample for free charge but do not pay the cost of the freight.

Q.  Can I have my own Logo on the product?
A:  Yes, you can send us your drawing and we can make your logo, but you have to bear
their own the cost.

Q.  Can I request to change the form of packaging and transportation?
A:  Yes, we can change the form of the packaging and transportation as per your request, but you have to bear their own costs incurred during this period and the spreads.

Q.  How long is your delivery time?
A:  Generally it is 5-10 days if the goods are in stock.Or it is 15-20 days if the goods are not in stock,it is according to your quantity.

Q C an I request to advance the shipment?
A:  It should be depends on whether there is sufficient inventory in our warehouse.

Q.  Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.

Q.  What is your payment terms?
A:  Payment<=1000USD,100% in advance.
Payment>=1000USD,30% T/T in advance,banlance before shippment.

Gate valve:
1.Standard: DIN3352 F4 / DIN 3352 F5 / BS 5163 / BS 4504 / ANSI,ext
2.Seal: Metal seated gate valve,Rubber coat gate valve
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Connection:Flange end / Socket end / Kinfe / Threaded end / Wafer Type,ext
5.Pressure:PN10/16/25

Butterfly valve:
1.Type:Wafer type butterfly valve / lug type butterfly valve/flange type butterfly valve(concentric and eccentric) /u type butterfly valve/grooved butterfly valve,ext
2.Pressure:PN10/16/25
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Standard:DIN/BS/ANSI,ext

Check valve:
1.Type:Wafer(dual)check valve/Swing check valve/Slient check valve/Ball check valve/lift check valve,ext
2.Pressure:PN10/16/25
3.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
4.Standard:DIN/BS/ANSI,ext

Ball valve:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Standard:ANSI/JIS
3.Type:Flange ball valve/Tee ball valve/Welding ball valve,ext

Globe valve:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Type:Globe valve / Lift globe valve,ext

Strainer:
1.Material:Cast Iron(gg25) / Ductile Iron(ggg40/ggg50)
2.Type: Y strainer / T strainer,ext

Other valves:
Foot valve,Marine Valve,ext


If you have another questions,please feel free to contact us below:






Prod Model: ZFI01
Body Material: Cast Iron(Gg25)
Bonnet Material: Cast Iron(Gg25)
Seat Material: Iron+Rubber(EPDM/NBR)
O-Ring Material: Rubber
Stem Material: Carbon Steel/Stainless Steel
Bolt Material: Carbon Steel/Stainless Steel
Color: Blue(as Per Customer)
Certificate: Ce/ISO
Face To Face: DIN3352 F4
Flange Standard: DIN2501
Material: Cast Iron
Connection Form: Flange
Seal Surface: Wedge Gate Valve
Thread Position Of Valve Rod: Inside Gate Valve
Application: Household Usage
Pressure: Pn10/16/25
Qingdao Itsen Metal Products Co., Ltd is a leading producer in valves control system for water, gas and oil.

ITSEN is specialized in design, research and production of all industrial valves.

ITSEN products cover the following industry area:

Water supply system, water treatment, food, chemical, cement, air- conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on.

ITSEN has a overal prouduction capacity of around 3500 Tons and export value around 10 million dollars per year.

ITSEN has wide variety of industrial valves, including following main products:

1. Fire Protection Valve( UL/FM Certified)

2. Gate Vave(DIN, BS, API, ANSI, MSS, JIS)

3. Ball Valve (DIN, API, ANSI, JIS)

4. Butterfly Valve (DIN, BS, API, ANSI, JIS)

5. Globe Valve (DIN, ANSI, API, MSS)

6. Check Valve (DIN, ANSI, API, MSS)

7. Y strainer (DIN, ANSI)

8. Air Valve DIN

9. Foot Valve DIN

We have a good advantage on the lower labor cost and lower material cost. In this way, our prices are always in high competitive and all these are based on a reliable and trust quality.
