Jiangsu Huasheng Plastic Co.ltd is founded in 1988 ,which specialized in moulding,Precision injection,UPVC,CPVC pipe, fittings and Vales in DIN,ISO,ASTM standard on water supply and industry with CE,ISO,SGS etc certificate
Currently, Our annual production have reached a sales turnover of USD 30,000,000, covering 250,000 square meters two factory , over 170 injection machines, 20 pipe extruding lines,80 mechanical processing equipment and more than 500 laborers
and our annual production capacity have been exceeded over 60,000 tons,our storage is over 10,000,000 USD, we have already exported our products to Pakistan, India,Philippines,Turkey, Southeast Asia area , Dubai
| Description: | |

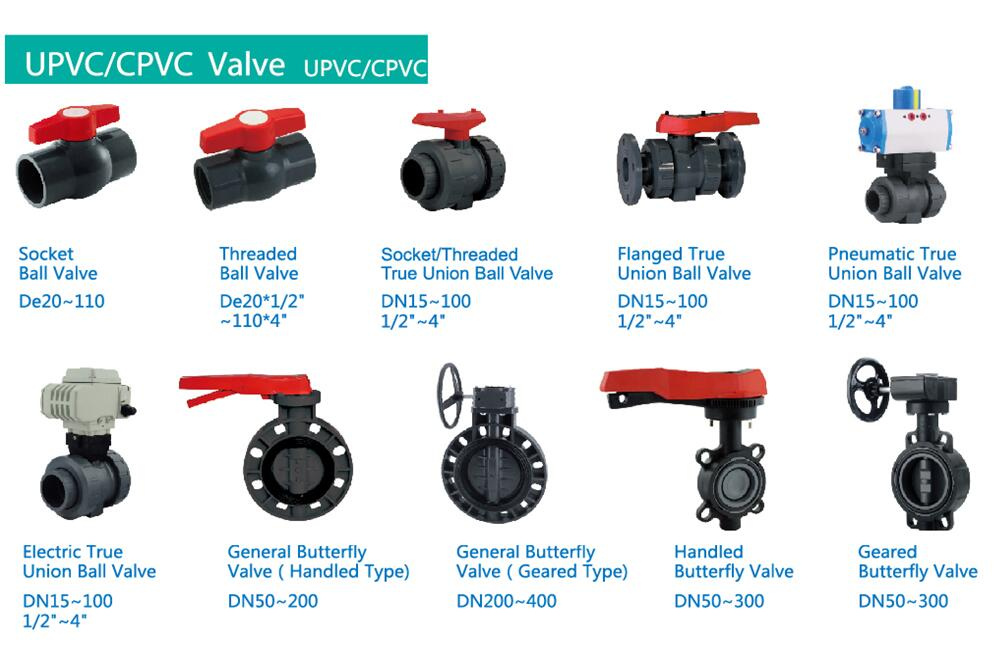

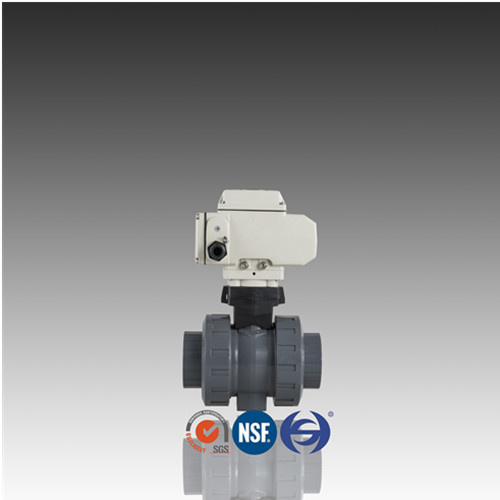

| Product Description | PVC Electric True Union Ball Valve |
| Material details | UPVC/TPE/EPDM/FPM |
| Measurement range | from 20mm to 110mm |
| Color description | Dark Grey/Light Grey /White |
| connection methods | Socket/thread/flange/thread/union |
| Pressure in bar | 10bar~16bar |
| Power | Electirc actuate |
| The Standard | DIN, BS, ANSI, CNS, JIS, BSPT, NPT |
| Certificate | CE, ISO14001,ISO9001,SGS |
| Media | Water |
| OEM/ODM | YES |
| (DIN )VALVE | ||||||||||
| Dimension (mm) | Working Pressure (kg/Cm2) | |||||||||
Size DN (De) | D0 | d0 | d1 | d2 | d | H1 | H | T | L | |
| 15(20) | 51.50 | 27.40 | 20.30 | 19.95 | 15.50 | 26.30 | 201.50 | 17.00 | 95.50 | 10 |
| 20(25) | 59.00 | 32.70 | 25.30 | 24.95 | 20.50 | 30.60 | 209.00 | 19.50 | 109.10 | 10 |
| 25(32) | 70.00 | 41.30 | 32.30 | 31.90 | 26.00 | 39.10 | 220.00 | 23.00 | 122.60 | 10 |
| 32(40) | 85.40 | 49.60 | 40.35 | 39.90 | 33.00 | 44.20 | 235.40 | 27.00 | 147.30 | 10 |
| 40(50) | 98.90 | 60.20 | 50.35 | 49.90 | 39.00 | 52.20 | 248.90 | 32.00 | 158.80 | 10 |
| 50(63) | 122.20 | 76.00 | 63.40 | 62.90 | 51.00 | 71.30 | 272.20 | 38.50 | 182.80 | 10 |
| 65(75) | 158.60 | 89.60 | 75.40 | 74.90 | 64.00 | 82.80 | 353.60 | 44.50 | 234.00 | 10 |
| 80(90) | 192.10 | 105.40 | 90.50 | 89.90 | 81.00 | 99.30 | 397.10 | 52.00 | 255.00 | 10 |
| 100(110) | 223.60 | 128.40 | 110.60 | 109.90 | 99.00 | 115.20 | 438.60 | 62.00 | 297.00 | 10 |
| (ASTM)VALVE | ||||||||||
| Dimension (mm) | Working Pressure (kg/Cm2) | |||||||||
| Size(") | D0 | d0 | d1 | d2 | d | H1 | H | T | L | |
| 1/2" | 51.50 | 27.40 | 21.54 | 21.23 | 15.50 | 26.30 | 201.50 | 23.22 | 107.90 | 10 |
| 3/4" | 59.00 | 32.70 | 26.87 | 26.57 | 20.50 | 30.60 | 209.00 | 26.40 | 122.90 | 10 |
| 1" | 70.00 | 41.30 | 33.66 | 33.27 | 26.00 | 39.10 | 220.00 | 29.57 | 135.70 | 10 |
| 1-1/4" | 85.40 | 49.60 | 42.42 | 42.04 | 33.00 | 44.20 | 235.40 | 32.75 | 158.80 | 10 |
| 1-1/2" | 98.90 | 60.20 | 48.56 | 48.11 | 39.00 | 52.20 | 248.90 | 32.00 | 166.80 | 10 |
| 2" | 122.20 | 76.00 | 60.63 | 60.17 | 51.00 | 71.30 | 272.20 | 39.10 | 182.80 | 10 |
| 2-1/2" | 158.60 | 89.60 | 73.38 | 72.85 | 64.00 | 82.80 | 353.60 | 44.50 | 236.00 | 10 |
| 3" | 192.10 | 105.40 | 89.31 | 88.70 | 81.00 | 99.30 | 397.10 | 48.60 | 249.00 | 10 |
| 4" | 223.60 | 128.40 | 114.76 | 114.07 | 99.00 | 115.20 | 438.60 | 58.15 | 289.00 | 10 |

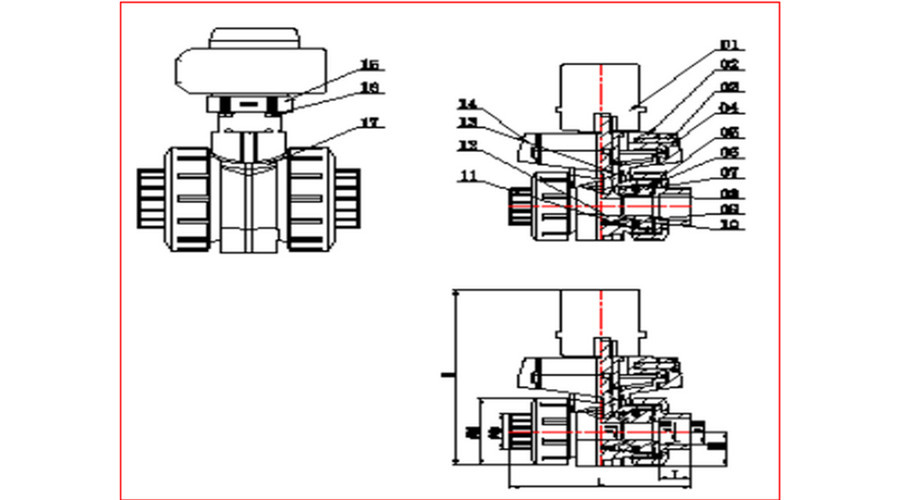

| No. | Parts | Quantity | Material | |
| 01 | Electric actuator | 1 | aluminum alloy | |
| 02 | Connector top cover | 1 | PP+GF30% | |
| 03 | Bolt | 2 | Stainless Steel | |
| 04 | Connector bottom cover | 1 | PP+GF30% | |
| 05 | Nut | 2 | PVC-U/PVC-C | |
| 06 | Faucet | 2 | PVC-U/PVC-C | |
| 07 | Seal-carrier | 1 | PVC-U/PVC-C | |
| 08 | Ball seat | 2 | PTFE/TPE+PP | |
| 09 | O-ring 1 | 2 | EPDM/FPM | |
| 10 | O-ring 2 | 2 | EPDM/FPM | |
| 11 | O-ring 3 | 1 | EPDM/FPM | |
| 12 | Ball | 1 | PVC-U/PVC-C | |
| 13 | O-ring 4 | 2 | EPDM/FPM | |
| 14 | Fixed buckle | 2 | PP+GF30% | |
| 15 | Connection | 1 | PP+GF30% | |
| 16 | Bolt | 4 | Stainless Steel | |
| 17 | Body | 1 | PVC-U/PVC-C | |
| No | Description | Size | Pcs/ctn | Weight (g/pcs) | Length (cm) | Width (cm) | Height (cm) |
| 1 | Electric true union ball valve | DN15 | 4 | 1281.50 | 42 | 29 | 22 |
| 2 | DN20 | 4 | 1321.10 | 42 | 29 | 22 | |
| 3 | DN25 | 2 | 1359.60 | 41 | 41 | 24 | |
| 4 | DN32 | 2 | 1426.70 | 41 | 41 | 24 | |
| 5 | DN40 | 2 | 1521.30 | 41 | 41 | 24 | |
| 6 | DN50 | 2 | 2004.20 | 41 | 41 | 24 | |
| 7 | DN65 | 1 | 2339.70 | 50 | 35.5 | 24 | |
| 8 | DN80 | 1 | 3570.60 | 54 | 40 | 28 | |
| 9 | DN100 | 1 | 4962.10 | 54 | 40 | 28 |
| Prod Model: | 8214011001 |
|---|---|
| Channel: | Straight Through Type |
| Structure: | Fixed Ball Valve |
| Type: | Fixed Ball Valve |
| Application: | Household Usage |
| Material: | UPVC |
| Connection Form: | Union |
| Function: | Liquid Control |
