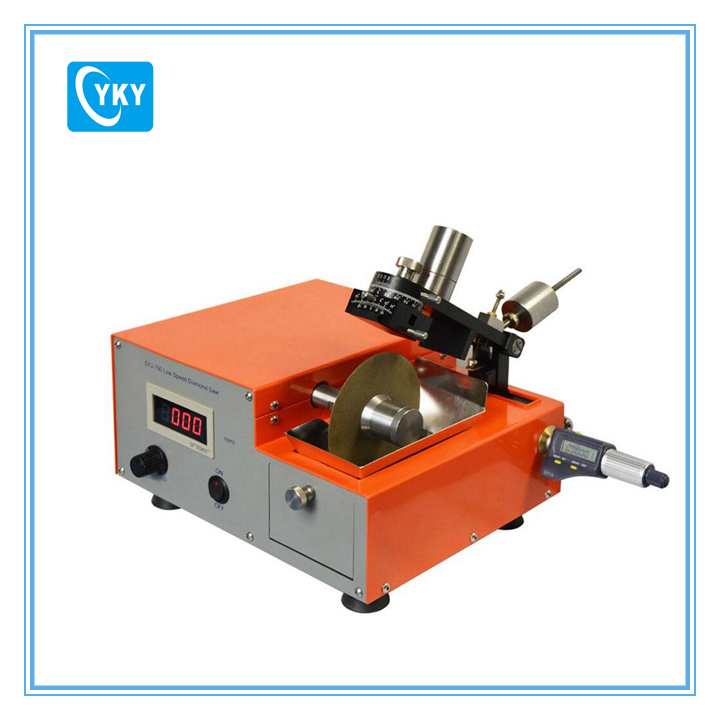

SYJ-150 is CE certified low-speed diamond saw, which equips with the advanced digital micrometer and digital speed display controller, it is the perfect tool for cutting/dicing/slicing all kinds of materials up to 32.5 mm thickness, especially for brittle crystals, ceramics, TEM samples, and even plastic samples
Technical Parameters
| Model No. | SYJ-150 |
| Working voltage | AC 220V 50Hz |
| Speed range | 0~600rpm with LED Digital display |
| Cutting width&Depth | Width: 1mm ~ 24mm by adjusting the LCD digital micrometer
Depth: 32.5mm max. |
| Diamond blades | 100 x 0.35 x 12.7mm |
| Sample Holder & Mini-vise | Two angles adjustable sample holder |
| Max distance | 50mm |
| Two dimensional adjustment | Horizontal:360°
Vertical:±15° |
| Dimension | 365*280*235mm |
| Gross weight | 12Kg |
Service
1. Factory prices with the best quality.
2. One year free-of-charge maintenance for all the dental equipment
3. Customized service for special demand
4. Fast and flexible delivery, by sea, by air, by express
5. Quick response within 24 hours
How to order
1. If you are interested in our products, please tell us the model number and quantity.
2. We will make a proforma invoice for your order.
3. We will deliver the product ASAP on receipt of the payment
Guarantee
1. Guarantee for one year after shipment.
Payment
1. Western Union
2. PayPal
3. Secure Payment through Alibaba
4. Telegraphic transfer
5. L/C

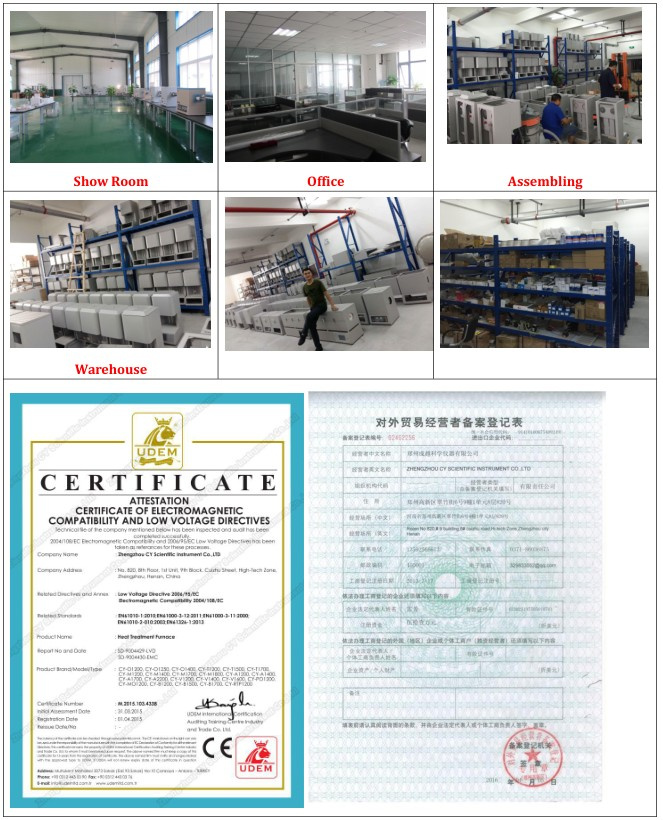

Factory
Exhibition
Zhengzhou CY Scientific Instrument Co., Ltd. Materials Science and Technology Co., Ltd. is a high and new technology enterprise registered in Zhengzhou city of Henan province, mainly engaged in the research and development, design, manufacturing and sales of equipment used in scientific researches. Independence and innovation is the company's tenet. On the basis of sticking to independent innovation, the company absorbs extensively the advanced technology of excellent products at home and abroad. Meanwhile, the company studies, develops and manufactures various kinds of heating equipment and experimental instrument with consideration of our comprehensive national conditions. The company has solid technical force and forms a thorough research and development system by cooperating closely with a number of research institutes.
