Digital Low Speed Diamond Saw with 6" Diamond Blade

Price:	US $ 99-3999/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Laizhou Weiyi Experimental Machinery Manufacture Co., Ltd.

Showroom Product Company Profile

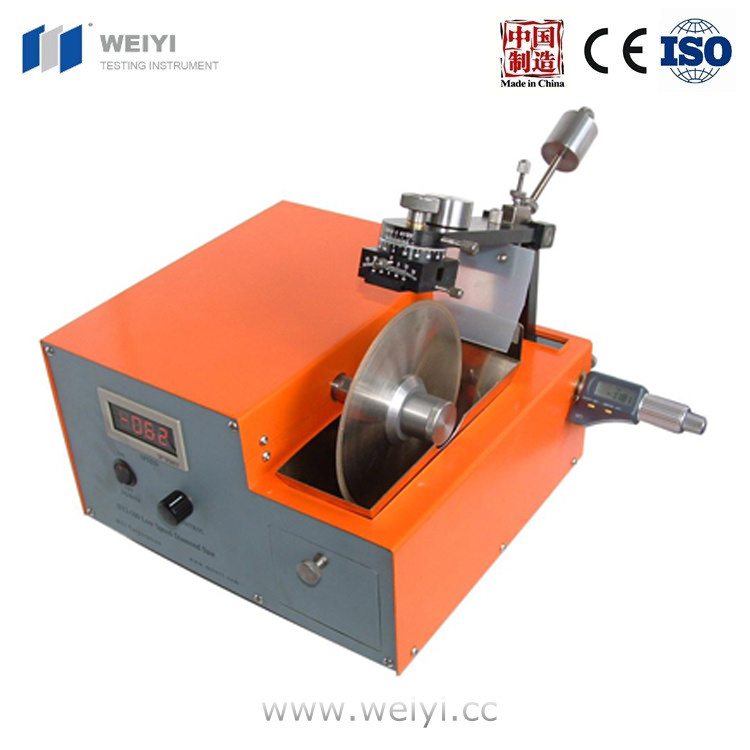

Syj-160 Low Speed Diamond Saw Sample Cutting Machine

Model:

SYJ-160 Low Speed Diamond Saw

Brief Introduction:

SYJ-160 Low Speed Diamond Saw is specialized designed to material researchers, the products sells to research institutes, universities and research department of famous companies, small and medium-sized companies for the relevant material analysis. Many artificial crystal precision cutting also can use this machine.

Main
Feature:

Used for precision cutting the material sample, high torque, running steady, can cut all kinds of materials and the thickness are 0.1mm. Suitable for samples' follow-up thinning, polishing and various operation.
The different between SYJ-160 and SYJ-150 is the former can use various blades of 150mm(outside diameter). It's good for cutting bigger samples. Original equips with digital micrometer.

Technical
Parameter:

1. Speed range:20-600RPM stepless speed adjust
2. Voltage:AC 110V/220V
3. Position accuracy:0.01mm( Mechanical and digital display )
4. Two dimension, angle adjustment: 360(H),(+/-)15(V)
5. Max. travel distance:50mm(Fine adjustment travel distance 25mm)
6. Max dia. wafer blade:150mm(6 inches)
7. Automatic shut off:allowed unattended
8. Digital display axis RPM

Specification:

Size:400 x300 x30mm Weight:14.5kg

Standard Accessories:

1	Adjustment sample holder	1 set
2	Mini-vise	1 pc
3	O-ring of Driving Motor	2 pcs
4	Full Sintered Diamond Blade (Φ150×12.7×0.55mm)	1 pc
5	Electroplating diamond blade(Φ150×12.7×0.4mm)	2 pcs
6	Sic blade(Φ150mm×12.7mm×0.4mm)	5 pcs
7	Al2O3 blade(Φ150mm×12.7mm×0.4mm)	5pcs
8	Resin ceramic block(50mm×50mm×12mm)	2pcs
9	Aluminum Plate(25mm×50mm×7mm)	2 pcs
10	Wax for gluing sample	2 pcs
11	Blade clamps(Φ35mm, Φ46mm,Φ62mm)	3 set

Optional Accessories :

1. Edge sintered Diamond Blade:Φ150x12.7x0.55
2. Full sintered Diamond Blade:Φ150x12.7x0.50
3. Sic blade:Φ150x12.7x0.55
4. Al2O3 blade:Φ150x12.7x0.55
5. Electroplating diamond blade:Φ150x12.7x0.40
6. (Optional)All kinds of blades:Φ100x12.7x0.4

More information

company information	Laizhou Weiyi experimental machine manufacturing Co.,Ltd. was established in 2001,covering 55 acres,which is one leading enterprise in the field of a professional R&D,manufacturing metallographic sample preparation erquipment. Was identified as Technology high-tech enterprises by Shandong Provincial Science , Shandong Academy of Sciences Research Building .
	In 2004 the company passed the ISO9001 quality management system certification,in 2012 the company obtained CE certification, laid the foundation for a comprehensive international markets.

Prod Model:	SYJ-160
E:	F

Laizhou Weiyi Experimental Instrument Manufacturing Co. Ltd. Is engaged in domestic metallographic sample preparation equipment, sample preparation supplies R & D, production and sales of leading enterprises. The company was founded in 2001, covering an area of 55 acres. We have 110 staff at present, among which there are 32 engineering and technical staff, 17 staff working for products and technology development. We are a high-tech enterprises authorized by Shandong science and technology department, as well as the base on scientific research in Shandong province.

In 2004, the company passed the ISO9001 quality system certification.

In 2005 we achieved the independent right of import and export.

In 2011 we first achieved CE certification in the domestic industry, laying the foundation for the comprehensive development of international market.

We have established 3 sales companied in China, more than 200 dealers. Meanwhile we have more than 20 foreign agents in the world.

We have been focusing on the investment in technology development. In recent years we have developed a number of international advanced level of metallographic sample preparation equipment. We have won 4 national invention patents, dozens of patents of utility model patents as well as the appearance patents. Several products can replace the imported products, which makes the "WEIYI"brand the leading brand in the domestic industry.
