Digital Concrete Rebond Hammer Ht-225D
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |

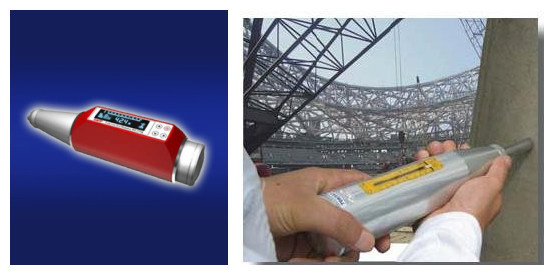

HT-225D concrete test hammer is an integrated digital concrete test hammer which combines data processor and concrete test hammer into one unit. It is widely used for non destructive concrete testing quality and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬ Crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
KEY FEATURES
High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correction of impact direction
All data will be stored in memory
All data can be transferred to PC by USB cable or blue tooth(optional)
Dual display for analogue ruler and digital value
| Model | HT-225D | HT-75D | HT-20D |
| Display | OLED digital |
| Measuring range | 10-70N/mm2 | 1-25N/mm2 |
| Accuracy | ± 0.1R |
| Impact energy | 0.225kgm (2.207Nm)for testing ordinary building and bridge construction | 0.075kgm (0.735Nm)for testing small and impact-sensitive parts of concrete or artificial brick | 0.020kgm (0.196Nm)for testing mortal or clay of products |
| Communication | USB2.0 or Bluetooth(optional) |
| Storage | data for 4000 concrete structures |
| Operating temperature | -40º -60º C |
| Power supply | 3.7V Li-ion rechargeable battery charged via USB port |
| Dimension (mm) | 280x75x60 |
| Net weight | 1.1kg |
| Prod Model: |
HT-225D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Delivery: |
7 Workdays Upon The Receipt of The Full Payment |
| Hammer Material: |
Steel |
| Type: |
Schmidt Hammer |
| Brand: |
Sadt |
Sino Age Development Technology, Ltd. (SADT), is a leading manufacturer of measuring and testing instrument, specialized in NDT and quality control fields. We have our own HARTIP series portable hardness testers from the very begining. We are professional producer with ISO 9001 quality system. The main products include: Hartip series hardness tester (HARTIP3000, HARTIP1500, HARTIP1000, HARTIP1800, HARTIP2000, HARTIP2200 and HARTIP1900), ultrasonic thickness gauge( SA40+ SA40, SA40EZ, ST5900), concrete hammer(HT-225D, HT-225A), ultrasonic flaw detector(SUD10, SUD50), gloss meter( GTS, GT60, GT45, GT60N), portable metallurgical microscope (SM500, SM-3), brinell hardness reading automatic measuring system, surface roughness tester and color meter. Most of the products are applied with CE certificate.
Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc. All products supplied by SADT have excellent quality and competitive price with our best service.
