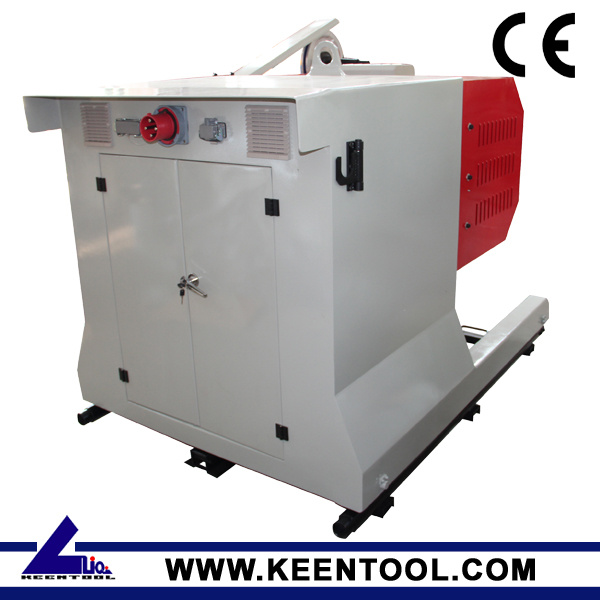

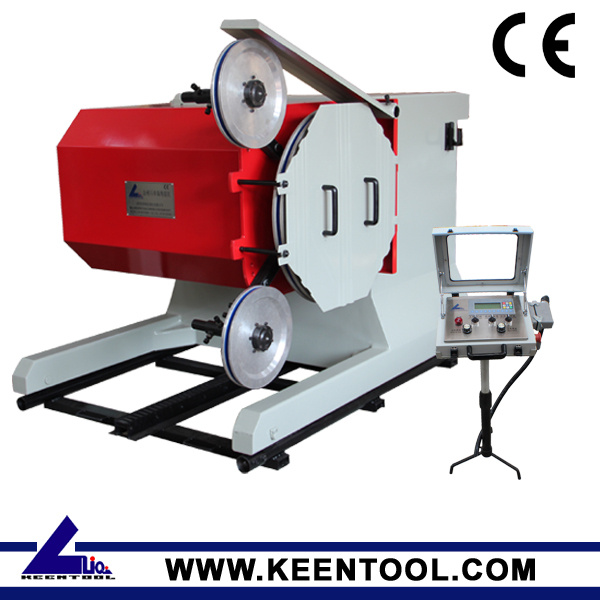

Diamond Wire Saw Machine for Granite
| Price: |
US $ 15000-25000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Our "LQ" series diamond wire saw machine with detailed features of:
1. PLC and two inverters allows varied linear speed range from 0-40m/s.
2. Angle adjustment from 0-360 degree, which allows any direction cuting.
3. Horizontal extension system makes it possible for two parallel cuts.
4. Automatic constant tensioning system keep the wire always under best working condition and greatly enhance the working life of the diamond wire.
5. Quick backward, greatly improve the working efficiency.
6. Safety stop in case of wire breakage or other faults

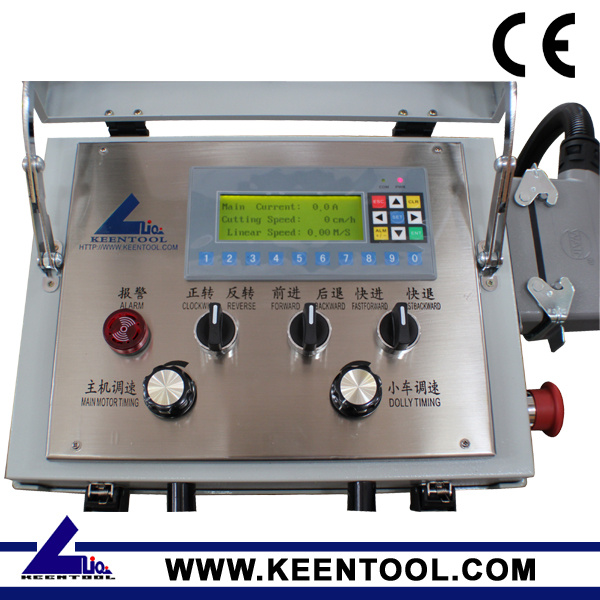

7. Independent control panel, which is safe and easy for the operators.
Remarks:
1. Schneider or Siemens inverters is available as per customer's requirements.
2. Standard power supply is 3-phases, 380Volts, 50Hz, other types could be ordered by customer.
3. We are in a position to design the Wire Saw Machines as per customer special requirement.
Company Information:We, KEEN TOOL is a specialized manufacturer of diamond tools for construction industry with 20 years experience, and we mainly concentrates on series equipments and diamond wires for stone quarry work and construction work in recent 8 years. We monthly produce around 8000 Meters diamond wire and 30 sets quarry equipments now, 80% of them are for export to USA, Brazil, Australia, South Africa, East & West Europe, especially our LQ & ROC series diamond wire for natural stone quarry work, shape cutting and controlled demolition of construction (for concrete, reinforced concrete and steel rebar).
KEENTOOL will be best solution for customers in fields as below:- Diamond Wire for stone quarry, blocks trimming and profiling.
- Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
- Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
- DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
- Conventional Diamond Tools for processing stone and other construction materials.
|
Model |
Main motor |
Length of Wire |
Linear Speed |
Diameter of drive wheel |
Application |
|
LQ-WSM-37KW |
37 kw |
20-80 m |
0-40 m/s |
600-1000 mm |
For Quarry |
|
LQ-WSM-45KW |
45 kw |
20-100 m |
0-40 m/s |
600-1000 mm |
For Quarry |
|
LQ-WSM-55KW |
55 kw |
20-120 m |
0-40 m/s |
600-1000 mm |
For Quarry |
|
LQ-WSM-75KW |
75 kw |
20-150 m |
0-40 m/s |
600-1000 mm |
For Quarry |
| Prod Model: |
LQ-WSM-55KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Diamond Wire Saw Machine |
| Main Motor Power: |
37-75 Kw |
| Length Of Wire: |
20-150 M |
| Diameter Of Driving Wheel: |
600-1000 Mm |
| Speed: |
0-40 M/S |
| Length Of Track: |
2 M/PC |
| Control System: |
Automatic |
| Use: |
Stone Quarrying |
| Price Base: |
FOB |
| Certification: |
CE, SGS |
| Type: |
CNC Cutting Machine |
| Source Voltage: |
380V |
| Application: |
Stone Industry |
| Automation: |
Automatic |
| Usage: |
Marble |
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.
We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:
1. For stone Quarry:
Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.
Consultant service for project evaluation, quarry development and mining construction
Consultant and marketing service for block distribution
2. For stone Factory:
Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.
3. For civil construction:
Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.
Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction
Diamond blade for cutting concrete, reinforced concrete and asphalt
Diamond Core Drills for concrete reinforced concrete, wall and asphalt
Diamond polisher for polishing of concrete floor, wall and blocks
The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
