Diamond Wire Saw for Granite Quarry Work (GDW-KT-R)

Diamond Wire Saw for Granite Quarry Work (GDW-KT-R)
Price: US $ 40-48/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 20/Meter
Pay Type: L/C,T/T,D/P,Western Union
We produce the diamond wire saw with procedures as follows:

1. Sintered diamond beads with cobalt bond system and top quality diamond from South Korea and U. K, which make sure for good cutting performance in both speed and life.

2. 40 PCS Diamond beads with specification of 11.5mm diameter, and 6.5mm width of diamond for better cutting life

3. Top quality steel cable from Germany with diameter of 4.8mm and structure of 133 thighs (7*19PCS), with guarantee for no break during normal work.

4. Good quality crude rubber with advanced technical procedures and equipment for injection, which make the rubber get inside of steel cable with better protection of steel cable and no break during work.

5. Performance for cutting hard granite is with speed of 3-5M2/H and 8-14M2 in life; For cutting medium hard granite is with speed of 4-7M2/H and 14-18M2 in life; For soft granite is with speed of 8-12M2/H and 18-24M2 in life.

When place order of diamond cable please kindly inform:

1. The power and technical parameters of wire saw machine
2. The hardness and chemical information of granite material, if possible
3. The usual dimension of cutting bench, especially the working height
4. Expected cutting performance in both speed and life
5. Special requirement if any

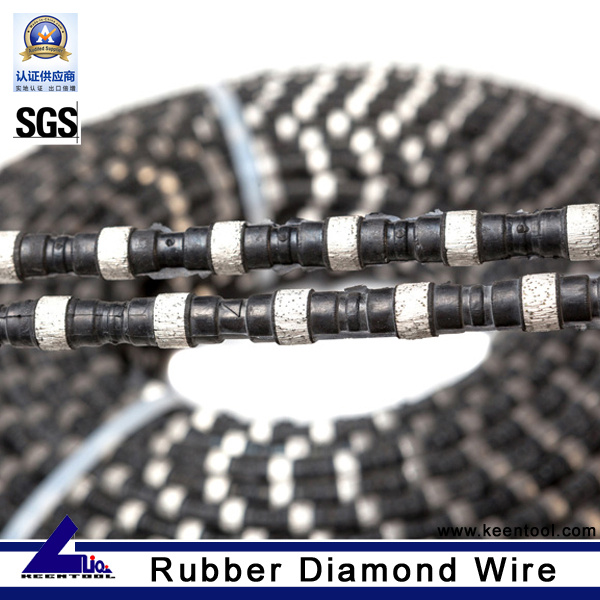

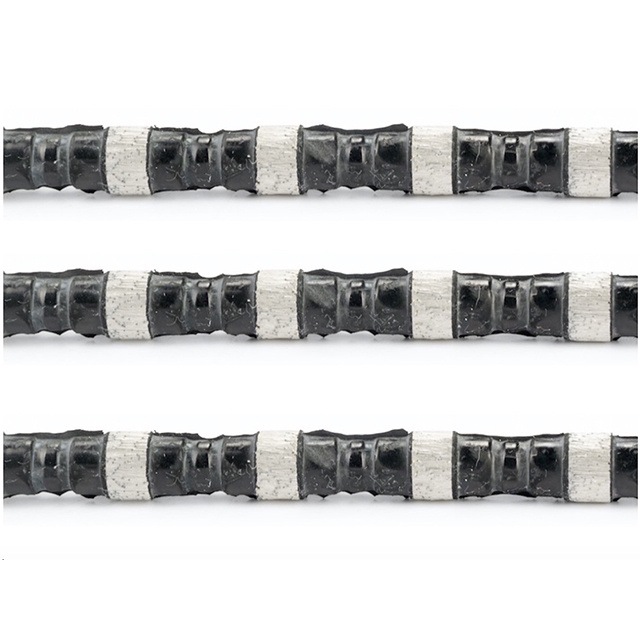

Related photos of rubber wire saw:








 KEENTOOL will be best solution for customers in fields as below:
  1. Diamond Wire for stone quarry, blocks trimming and profiling.
  2. Diamond Wire for controlled demolition work of construction with structure of concrete, reinforced concrete and steel.
  3. Wire Saw Machine with variable speed and step-less tension system for quarry and block cutting.
  4. DTH drills with complete Pneumatic system, or Pneumatic & Electrical system for drilling the wire hole.
  5. Conventional Diamond Tools for processing stone and other construction materials.

Diamond wire for granite quarry
Specification of beads(mm)ModelCoatingBeads No.
(Pcs/Mtr)
Hardness of GraniteCutting speed
( Sqm/Hr )
Cutting life
( Sqm/Mtr )
Φ11.5*6.5
Φ11.0*6.0
GDW-KT-RRubber40Soft8-1228-40
Medium6-818-25
Hard3-58-15
Prod Model: GDW-KT-R
Markets: North America,South America,Eastern Europe,Africa,Mid East,Western Europe
Diameter: 11.5mm/11.0mm/10.5mm/9.0mm/8.5mm
Coating Way: Rubber
Diemension For Quarry: 11.0.11.5mm
Making Material: Diamond Beads and Rubber Injection

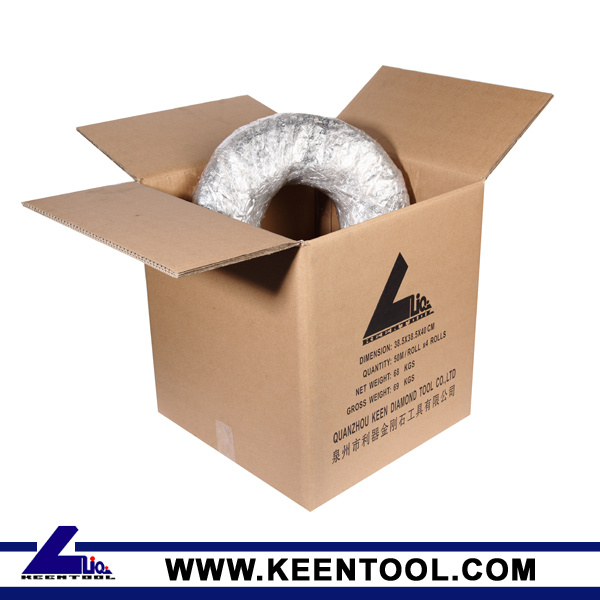

Package: Waterproof Plastic
Surface Finishing: Granite Quarry Wire Saw
Manufacturing Arts: Sinter Beads with Rubber Injection
Usage: Stone Cutting
Customized: Customized
Quanzhou Keen Diamond Tool Co., Ltd is one of the leading manufacturer of series machinery and diamond tools for natural stone quarry, processing and civil construction work, which has very good presentation in Europe, North&South America, Southern Africa, Middle East and Asian.

We are committed to professional total solution and package supply for natural stone quarry and controlled demolition of civil construction:

1. For stone Quarry:

Package supply of quarry machinery and consumables for quarries of granite, marble, sandstone, limestone, travertine and slate, such as Wire saw machine, DTH Drill, block trimming wire saw, diamond wire, generators and air compressors etc.

Consultant service for project evaluation, quarry development and mining construction

Consultant and marketing service for block distribution

2. For stone Factory:

Total solution and package supply of machinery and diamond tools for stone cutting, profiling, drilling and polishing, such as block cutting machine, bridge circular saw machine, bridge eage cutting machine, static stationary wire saw machine; Diamodn wire, diamond blade, diamond segments, diamond core drill, diamond fickert, diamond cup wheels and diamond polishing tools etc.

3. For civil construction:

Total solution and consult service for wire cutting of civil construction like old buildings, bridge, dams, highway, rail way, steel structure and underwater cutting of kinds of pipes.

Package supply of machinery, diamond wire and other consumables for wire cutting of civil construction

Diamond blade for cutting concrete, reinforced concrete and asphalt

Diamond Core Drills for concrete reinforced concrete, wall and asphalt

Diamond polisher for polishing of concrete floor, wall and blocks

The core values of our company is to create value for customers, provide opportunities for staff and make benefits for the society. Our principle for business is customer-oriented and quality first. Keen looks forward to cooperating with you.
