Diamond wheel for grinding edging glass machinery
Main features:
1. Suitable for flat glass straight edge and 45° arris;
2. Manual, single chip or PLC control system for option;
3. Rough grinding, fine grinding, polishing are done at one pass;
4. Chain or bearing conveying system, stepless/frequency speed adjustment for option.
Main Technical Specification:

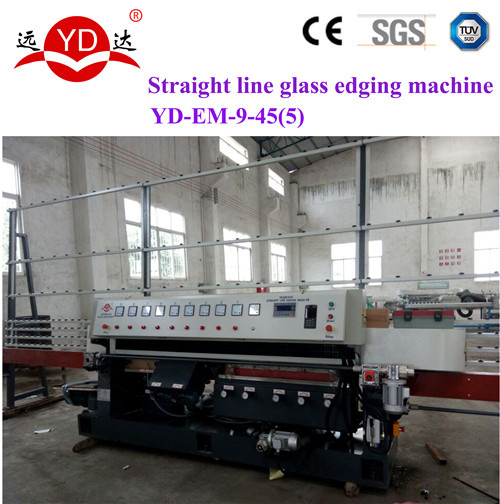

| Model Number | YD-EM-8 | YD-EM-9 | YD-EM-9-45 | YD-EM-10 | YD-EM-10(bearing) |
| Total nr.of spindle | 8 | 9 | 9 | 10 | 10 |
| Profile | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris | Flat/Arris |
| Glass thickness(mm) | 5~20 | 5~20 | 5~20 | 5~20 | 5~20 |
| Min.size of glass(mm) | 100×100 | 100×100 | 100×100 | 100×100 | 50×50 |
| Glass speed (m/min) | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~3.5 | 0.8~5 |
| Power(kw) | 15.5 | 18 | 18 | 20 | 20 |
| Outer dimension(m) | 6.5×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 6.8×1.0×2.6 | 7.5×1.0×2.6 |
| Weight(kg) | 2600 | 3000 | 3000 | 3500 | 4500 |
The position of grinding wheels:
| Name | Model | Qty per machine |
| 1# Diamond Wheel | 80# | 1 |
| 2# Diamond Wheel | 180# | 1 |
| 3# Resin Wheel | 150-240# | 1 |
| 4# Polishing wheel | 10S40 | 1 |
| 5# Yew wheel | SD001 | 1 |
| 6#Mud wheel | 130-240# | 1 |
| 8# Mud wheel | BD | 1 |
| 7# Resin Wheel | 130-240# | 1 |
| 9# Mud wheel | BD | 1 |
Guarantee And After-sale Service:
One year guarantee for whole machine.
24 hours technical support by e-mail.
Ues-friendly English software,manual and detailed Videos/CD.
We will provide all spare parts needed for maintenance of the equipments.
Professional after-sales service team support face-to-face training and installation to customer's factory.
Why choose Ladglass?
1.Widely used in different industry
2.High precision and reputation
3.CE Certificate High quality parts
4.Competitive price
5.Fast delivery
6.Best service
Welcome your inquiry and we will try our best to help you choose a right machine!
LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.
Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.
All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.
A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
We are manufacturer, main glass machine: Cutting, edging, sandblasting, drilling, washing and tempering, and big tempering project in Saudi, Egypt, Turkey, Columbia, Poland, Czekh, Australia, Vietnam, Sri Lanka.
