Diamond Segment of 500mm Saw Blade for Stone and Concrete

Diamond Segment of 500mm Saw Blade for Stone and Concrete
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union,Paypal
Diamond Segment of 500mm Saw Blade for Stone and Concrete

Why choose us
Established in 2000year  == Factroy==Quality Control ==Competitive price==OEM==Short delivery time

1.Description of Diamond Segment of 500mm Saw Blade for Stone and Concrete

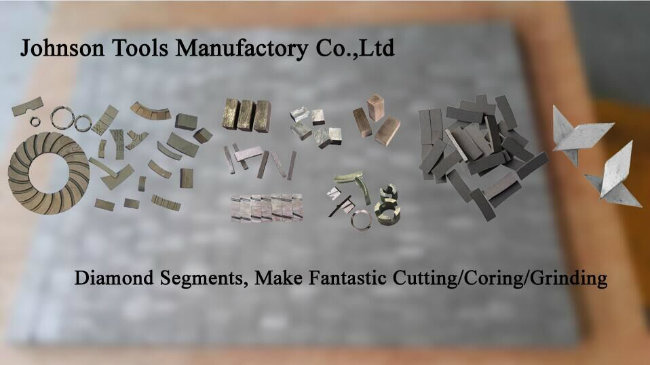

Diamond segments are parts of diamond tools.
1. Segments be brazed on: 500mm diamond saw blades and saw blanks, which are especially for stone
2. Application: Different formula for all kinds of stone (such as marble, granite, limestone, basalt stone, sand stone, grit stone, etc.)

2.Features of Diamond Segment of 500mm Saw Blade for Stone and Concrete
1. High percent of bond materials
2. High grade of diamonds
3. Various experience with hundreds of formula against different stones
4. Competitive price and stable quality
5. Strict quality control before send out
6. Our products last long life and give a sharp cut

We can satisfy different companies, high-, middle- and low-end markets.
Shapes and performance also can be customized based on customers' requirements
7. Advantage: Good cutting performance and long life.
3.Specification information of Diamond Segment of 500mm Saw Blade for Stone and Concrete
 1. Types available: Normal type, Sandwich type, Turbo, etc.
2. Be well exported to UK, Yemen, PK, Iran, India, Egypt, Brazil, Mexico, etc.
3. Diameter: 500mm
4. Diamond segment size: 40x3.8x10/12mm
5. Shape: Rectangle

6. Delivery time: 5-15days
7. Segment teeth: 36nos
Segment typeSegment sizeSegment teeth
OD500mm diamond segments40x3.8x10/12mm36

Other size we could do:
ItemBe brazed onSeg.L /mmSeg.W /mmSeg.H /mm
SCB-350OD350mm diamond saw blade403.210/12
SCB-400OD400mm diamond saw blade403.410/12
SCB-450OD450mm diamond saw blade403.610/12
SCB-500OD500mm diamond saw blade403.810/12
SCB-600OD600mm diamond saw blade404.210/12
SCB-700OD700mm diamond saw blade40510/12
SCB-800OD800mm diamond saw blade40610/12
SCB-900OD900mm diamond saw blade246.510/12/13/14/15
SCB-1000OD1000mm diamond saw blade24710/12/13/14/15
SCB-1200OD1200mm diamond saw blade24710/12/13/14/15
SCB-1300OD1300mm diamond saw blade24710/12/13/14/15
SCB-1600OD1600mm diamond saw blade24910/12/13/14/15
SCB-1800OD1800mm diamond saw blade24910/12/13/14/15
SCB-2000OD2000mm diamond saw blade241010/12/13/14/15
SCB-2200OD2200mm diamond saw blade241010/12/13/14/15
SCB-2300OD2300mm diamond saw blade2410.510/12/13/14/15
SCB-2500OD2500mm diamond saw blade241210/12/13/14/15
SCB-3000OD3000mm diamond saw blade241310/12/13/14/15
SCB-3500OD3500mm diamond saw blade241310/12/13/14/15

4.Packing and shipping of Diamond Segment of 500mm Saw Blade for Stone and Concrete
Each diamond segments are packed in plastic bags or white boxes, then according to the gross weight, usually around 15-20kg per carton.
Shipping date: If we have mould in our stock, normally shipment within 5days. If not, usually around 7-15days
Delivery way: By sea, by air, by courier, by track, etc.


5.Payment term
T/T, Irrevocable L/C at sight, Paypal, Western Union, Credit Card, etc

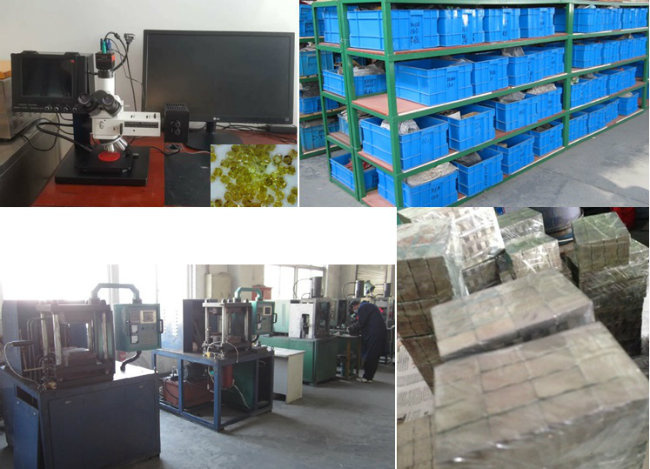

6.Our Technology
We are processing advanced production equipment,modern checking system,strict management and a strong technical force with the combination of many skilled workers and technical engineers.
Providing our customers with satisfactory diamond tools is our aim.


7. Our Related Products:


8. FAQ:

Q: How to place order to your company?

1.  Required Products Details: Tell us what is your demand? Which kind of products, size, specification, cutting or grinding or drilling materials? HP of machine? Quantity?  Nearest airport and seaport? Then we will give you best offer.

2.  Proforma Invoice: Offer satisfied, and then confirms the delivery time, payment term, logo, quantity, etc. According to this information, we will do Performa Invoice. Customers do the payment.

3.  Production Process: Arrange production, based on the contract and PI description and mutual communication,    we will follow closely the full production process; keep you informed of  till finished the products under the contract limited time. Take photo of the goods for your reference. We take completely file in the computer from the raw material to producing process details, package, shipping. Easy for us to check each order.

4. Delivery: Dispatch the goods to appointed airport or seaport, prepare all shipping documents to customers.

5. After-Sale Service: Track the goods, learn the products' performance.

6. Feedback: Customers feedback to Johnson about quality, service, give us suggestion for our better improvement.

9. Our Certification:


10. Our exhibition:


11. Sales Team:

Prod Model: 10.1.11
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Be Brazed On: 500mm Saw Blade
Segment Size: 40X3.8X10/12mm
Number Per Set: 36PCS
Cutting Material: Stone and Building Materials
Delivery Time: Based on Actual Order, Generally 15days
Usage: Stone Cutting, Drilling
Manufacturing Arts: Sinter
Kind: Diamond Segment
Saw Blade External Diameter: 500mm
Why clients choose Johnson?

1) Quality & Service:

We, Johnson Tools Manufactory Co., Ltd have very strict quality control system. There is one QC team in our factory on examination of every product before dispatching. We try our best to achieve zero defects.

2) Convenience of One-Stop Sourcing:

On stone and construction industry, from cutting, grinding, drilling, polishing, profiling field, till stone and its cutting machine, we can help you select the best tools, finish your project perfectly.

3) Flexible payment term:

T/T, Letter of Credit, PayPal, West Union, Credit Card, etc.

4) Delivery time:

Around 5-30days based on quantity of clients' order.

Repeated orders, we help our clients prepare one order's raw materials to shorten the producing time.

5) Good evaluation of our clients' from our deferent's countries.

6) Sales Teams:

We have a friendly, enthusiastic, energetic sales team, ready to service with you all the time.

Professional Manufacturer on Diamond Tools since Year 2000.

Above 95% Diamond Tools products export to Six Continent, over 70 Countries.

Our diamond tools differ diamond Cutting tools, diamond Grinding tools, diamond Polishing tools, diamond Drilling tools, and other accessories & stone cutting machine. Wildly used on Stone and Construction industry.

*****Customer Evaluation*****

To do the same bond as we use is very important. We did many tests at your blades And the performance is very good. -- Remco

The cutting of the blade on concrete road was very good. Cutting life is estimated at 800 meters. Note: Client use our 14" laser saw blade. -- Jabar

Segments from you is very good, durable and sharp. Note: Client use our 102mm-300mm diamond segments for core bits for reinforced concrete. -- Zainul

First of all I would like to thank you for the sending the samples of the Diamond Saw Cutting Blades. We have tested it and are very much impressed. -- Ancila

About your 200mm&250mm tuck point saw blade, we made about 11000 meters and it' s a very good indice! -- Julia

And its good, We need more: ) Saw blade 20X 600mm 20X 800mm 3X 1000mm 10X1200mm.

-- Kovacevic

Welcome to join us to be a Johnson Tools partner!

Let's work together to make the business better and better.
